| Ouput Power: | |
|---|---|
Triac
Isolated
Constant Voltage
1CH (Dimming)
IP66, Dry & Damp, Wet
200-240VAC
150W, 200W
12/ 24/ 36/ 48V
ENEC, TUV, CE, RoHS, REACH

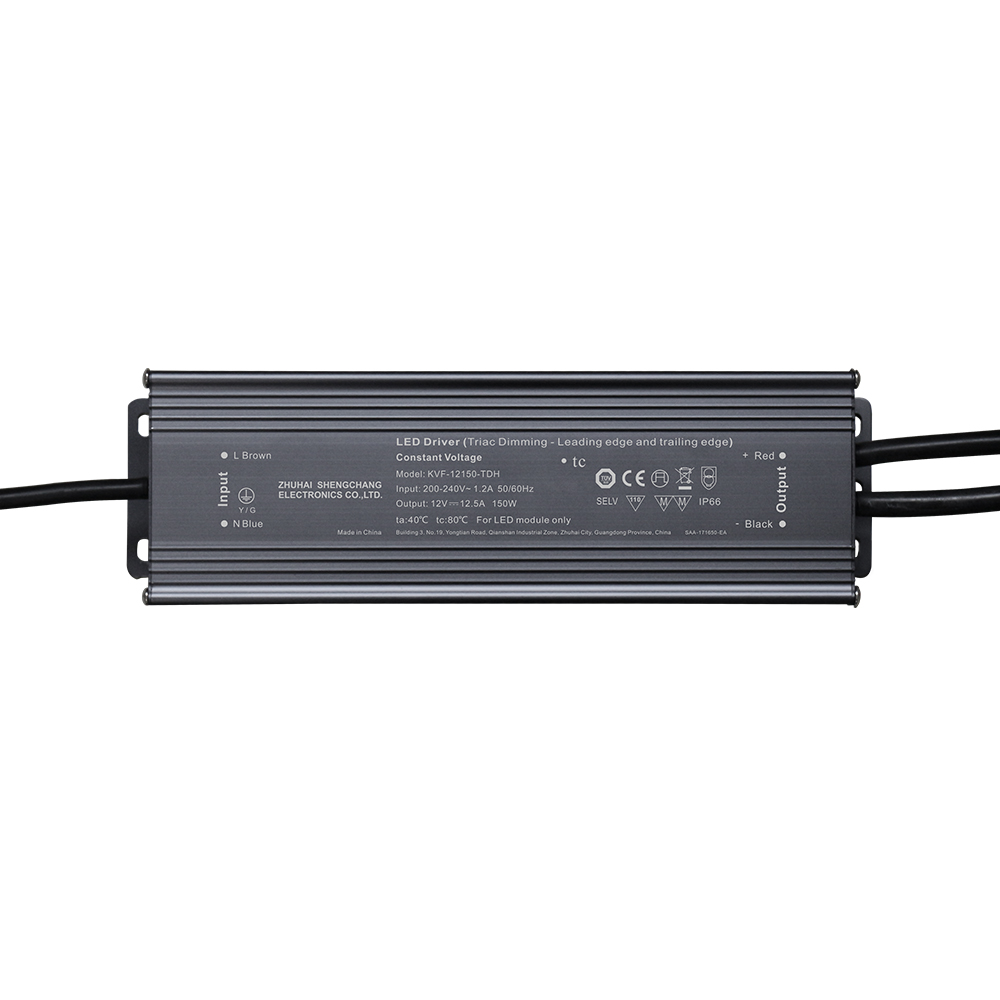

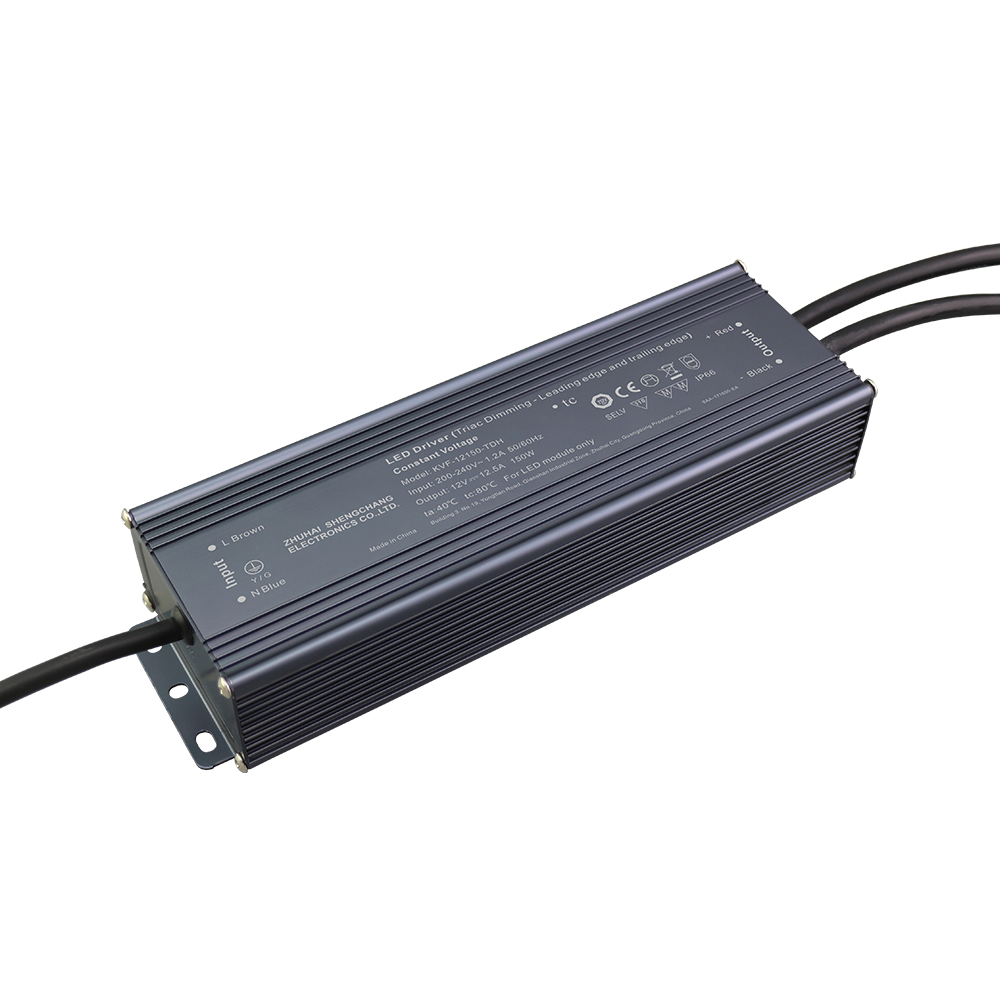

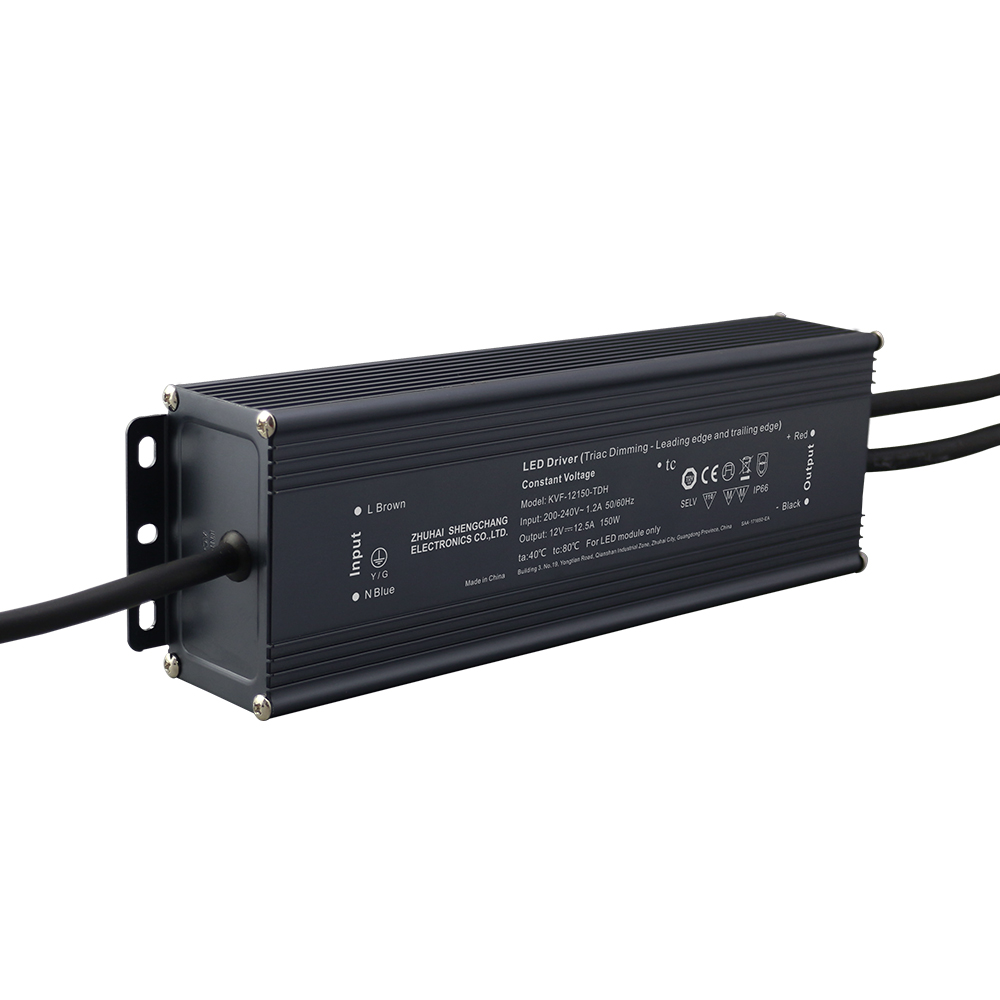

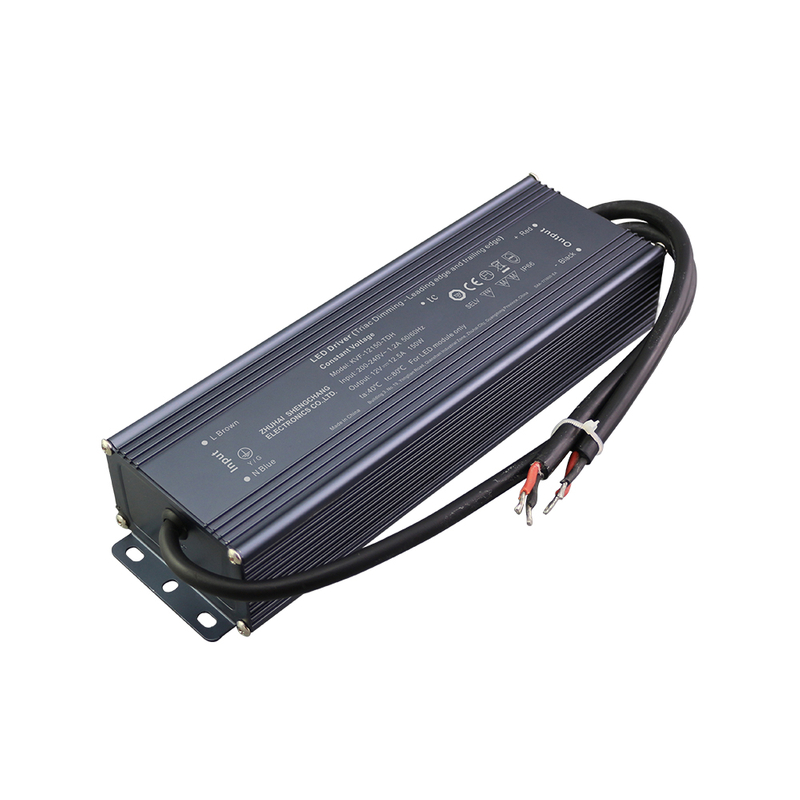

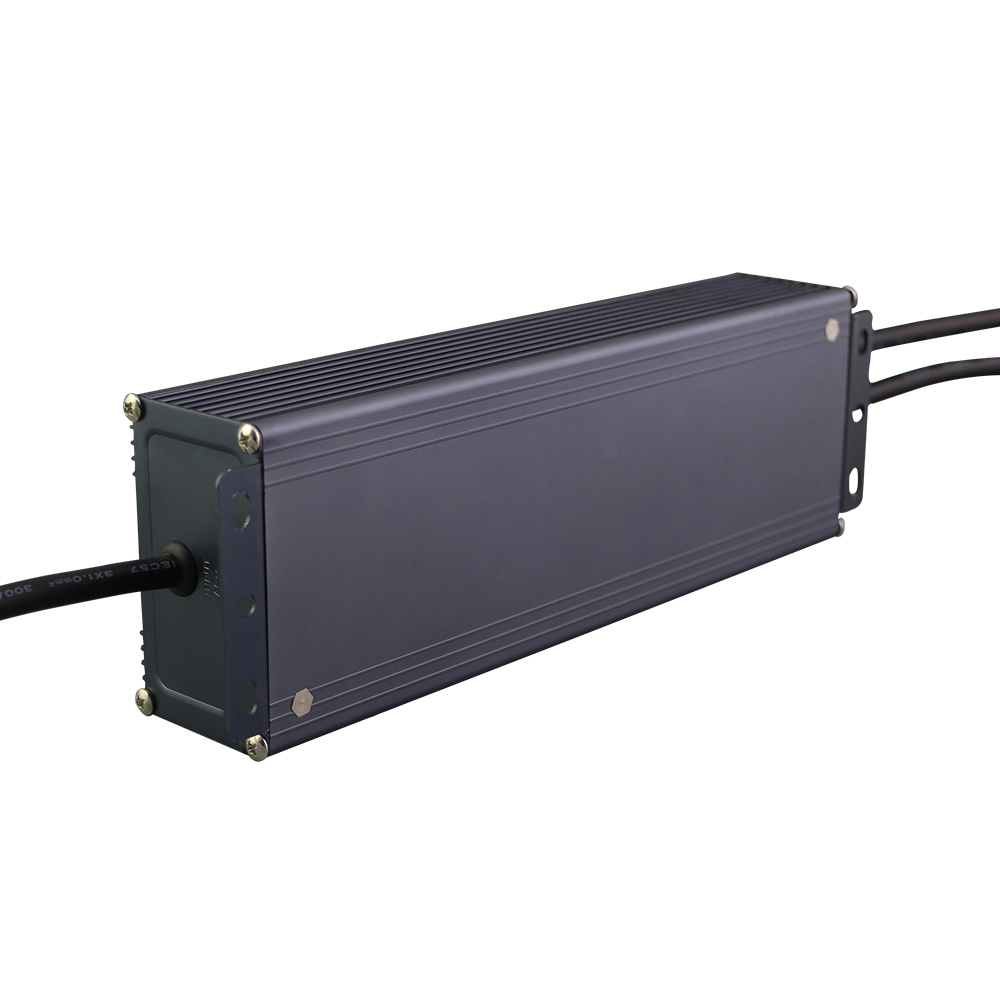

150 200 Watt CV Triac Dimmable LED Power Supply for led bar light
Output: | Constant Voltage |
Range: | 200-240VAC |
PFC design: | Built-in active PFC function |
Efficiency: | Up to 88% |
Protections: | Short circuit/ over load/ over temperature |
Heat dissipation: | Cooling by free air convection |
Waterproof performance: | IP66 |
Dimming function: | Phase dimming: work with leading edge and trailing edge, TRIAC dimmers. |
Dimming range: | 0-100% |
Application: | Suitable for the application of LED lighting |
Warranty: | 5 years warranty |

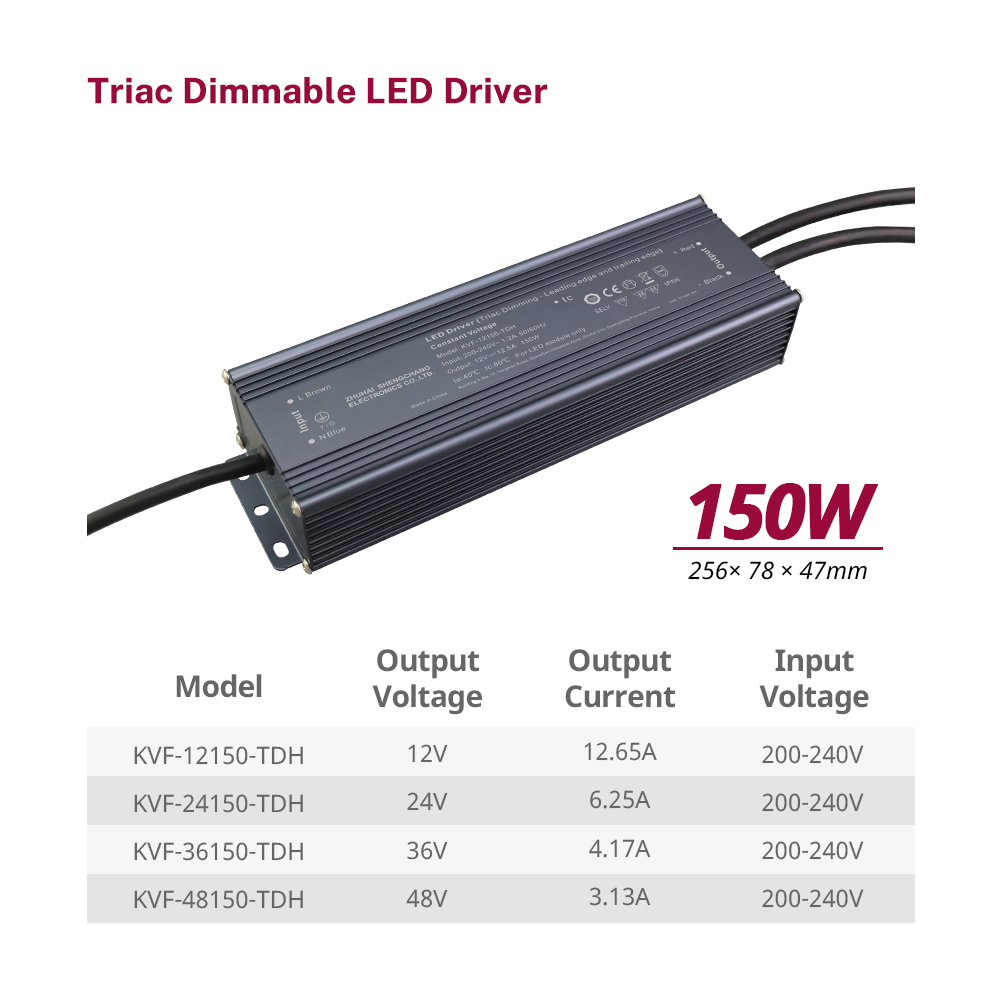

Output Power | Model Number | Output Voltage | Output Current | Size | Weight |
150W | KVF-12150-TDH | 12V | 12.5A | 256*78*47mm | 1.45kg |
KVF-24150-TDH | 24V | 6.25A | |||
KVF-36150-TDH | 36V | 4.17A | |||
KVF-48150-TDH | 48V | 3.13A | |||
200W | KVF-12200-TDH | 12V | 16.67A | ||
KVF-24200-TDH | 24V | 8.34A | |||
KVF-36200-TDH | 36V | 5.56A | |||
KVF-48200-TDH | 48V | 4.17A |
Triac LED Driver Wiring Diagram
Triac LED Driver Size（see the spec download）
