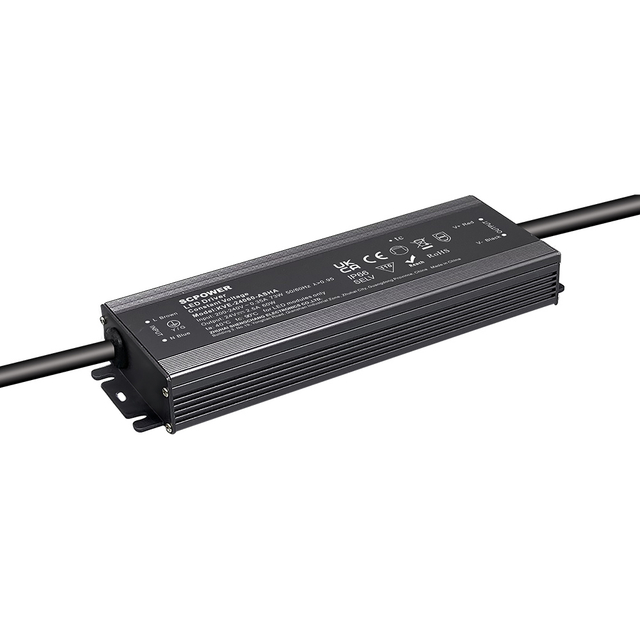

Switching Power Supply

Professional Manufacturer of Intelligent LED Driver Established in 2009 , Zhuhai Shengchang Eleetronies Co , Ltd. pecialized in supplying Triae Phase cut , 0-10V, 1-10V DALI , PUSH , DMX512 LED Lighting industry around the world's toand other related LED Driver supplies product.

Characteristics

• AC to DC Conversion: A Switching Power Supply (SPS) is an electrical device that converts an input AC (alternating current) voltage into a regulated DC (direct current) voltage to power electronic devices. Unlike traditional linear power supplies, switching power supplies use high-frequency switching technology to achieve efficient voltage conversion.

• Wide Input Voltage Range: Switching power supplies are designed to accommodate a wide range of input voltages, typically from 100V to 240V AC, making them suitable for use in various regions with different electrical grid standards.

• High Efficiency: One of the key features of a switching power supply is its high efficiency (typically 80-95%). It uses a switching transistor (such as a MOSFET or IGBT) that rapidly switches on and off to regulate the output voltage, which minimizes energy loss as heat, improving overall performance and reducing energy consumption.

• Compact and Lightweight: Switching power supplies are more compact and lightweight compared to traditional linear power supplies because they use high-frequency transformers and smaller components. This makes them ideal for applications where space is a concern.

• Regulated Output: The output voltage of a switching power supply is tightly regulated to ensure that the connected device receives a stable and reliable voltage, even when input voltage fluctuates or when load conditions change.

• Multiple Output Voltages: Many switching power supplies are designed to provide multiple output voltages, either through dedicated output channels or through adjustable output settings, which makes them suitable for powering different types of devices or systems.

• PFC (Power Factor Correction): Many modern switching power supplies feature PFC technology to improve the efficiency of power conversion by reducing the amount of power wasted due to poor power factor. This feature is particularly important for applications that need to meet specific energy regulations.

• Safety and Protection Features: Switching power supplies typically come with multiple safety features, including overvoltage, overcurrent, over-temperature, and short-circuit protection to ensure both the safety of the device being powered and the longevity of the power supply.

• Isolation: Many switching power supplies are isolated, meaning the input and output circuits are electrically separated, providing added safety, especially when dealing with high-voltage input power.

Advantages

• High Efficiency: Switching power supplies offer high energy efficiency, often achieving 80% or more, which reduces power consumption and operating costs. This makes them ideal for high-demand applications where energy savings are important.

• Compact Design: Their small size and lightweight nature make them easier to integrate into compact electronic devices or systems, saving space in product designs.

• Heat Dissipation: Since they generate less heat compared to linear power supplies, switching power supplies require less cooling, which further contributes to their long lifespan and improved reliability.

• Reliability and Longevity: Due to their efficient design and high-quality components, switching power supplies tend to last longer and operate more reliably than traditional power supplies, minimizing downtime and maintenance costs.

• Versatile Applications: Switching power supplies are used in a wide variety of applications, including consumer electronics, industrial equipment, lighting systems, telecommunications, and medical devices, making them a versatile solution for many industries.

• Safety Features: Built-in protection circuits ensure that the power supply remains safe under a range of conditions, protecting against overcurrent, short circuits, overheating, and voltage spikes.

• Global Compatibility: With their wide input voltage range and support for different electrical standards, switching power supplies are compatible with power grids in many countries, making them suitable for global use.

Applications

• Consumer Electronics: Switching power supplies are commonly used in devices like TVs, computers, laptops, game consoles, and home appliances. Their compact size and efficiency make them ideal for powering everyday electronics.

• Industrial Equipment: In industries, these power supplies are used in automation systems, control panels, robotics, and machine tools to ensure reliable and consistent operation of electronic components.

• Telecommunications: Switching power supplies are used in telecom equipment like routers, switches, and base stations to provide stable power for communications equipment and infrastructure.

• Lighting Systems: They are extensively used to power LED lighting systems, high-bay industrial lights, streetlights, and architectural lighting, offering efficient and reliable power conversion for various lighting applications.

• Medical Devices: Many medical equipment and diagnostic instruments rely on switching power supplies for stable, reliable power to ensure consistent operation and compliance with safety standards.

• Electric Vehicles (EV): In EVs, switching power supplies are used to charge batteries and power various onboard systems efficiently, helping to extend battery life and improve energy usage.

• Power Supply Units (PSUs): Used as the internal power supply in servers, data centers, and network equipment, where high efficiency and reliability are critical to maintaining continuous operation.

• Battery Chargers: Used in charging stations and portable chargers, switching power supplies ensure the efficient and safe charging of batteries in a wide range of devices.
