| Ouput Power: | |
|---|---|
0-10V
Isolated
Constant Voltage
Dimming, CCT
IP66, Dry & Damp, Wet
100-277VAC
192W
24/ 36/ 48V
UL & cUL

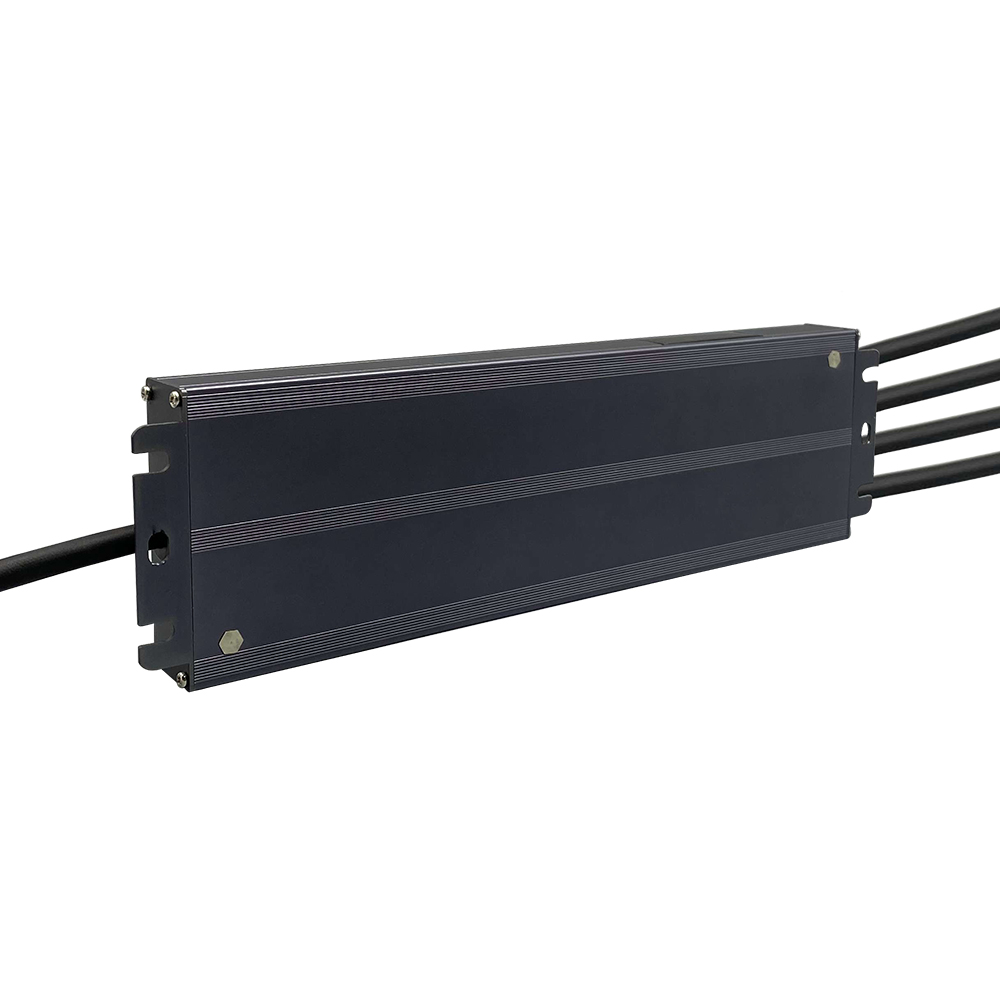

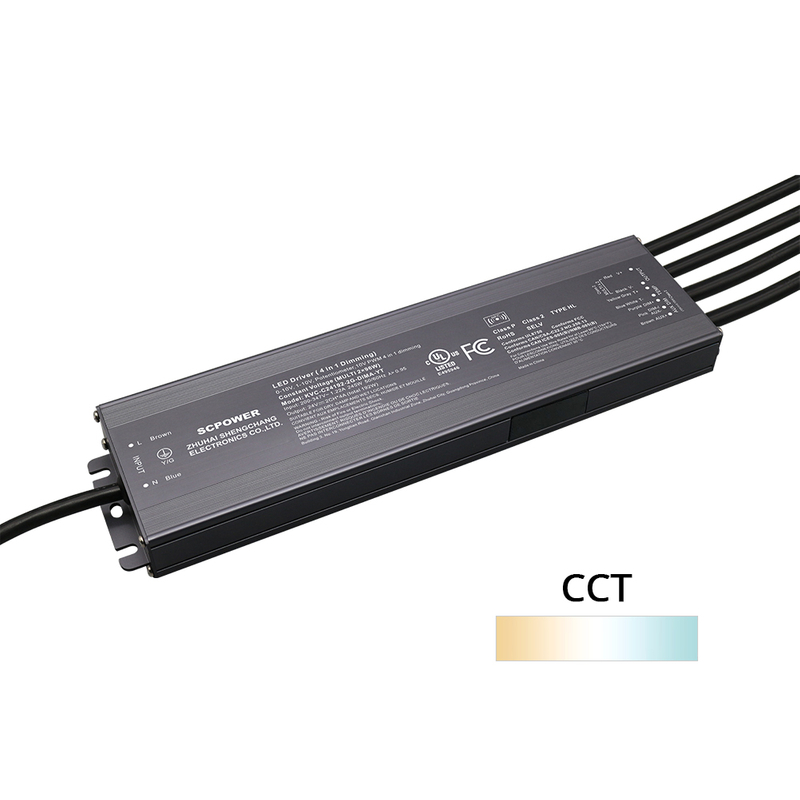

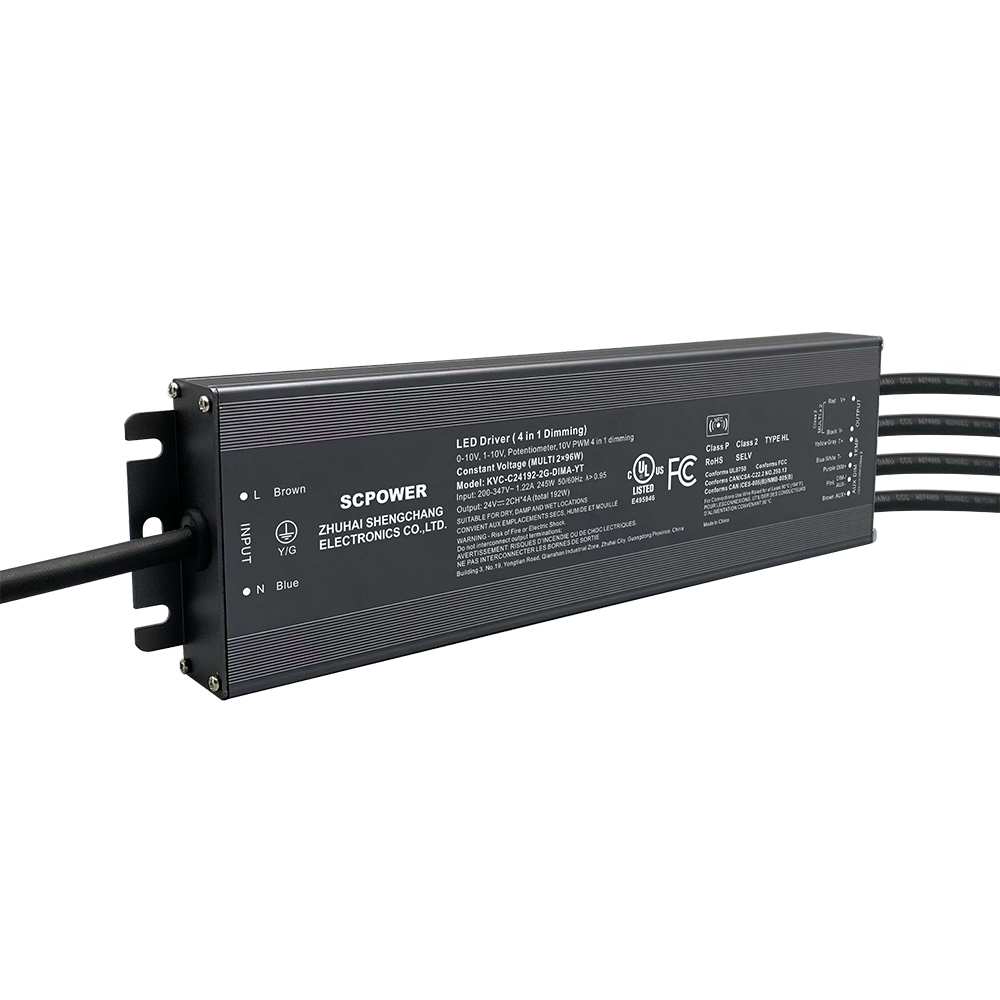

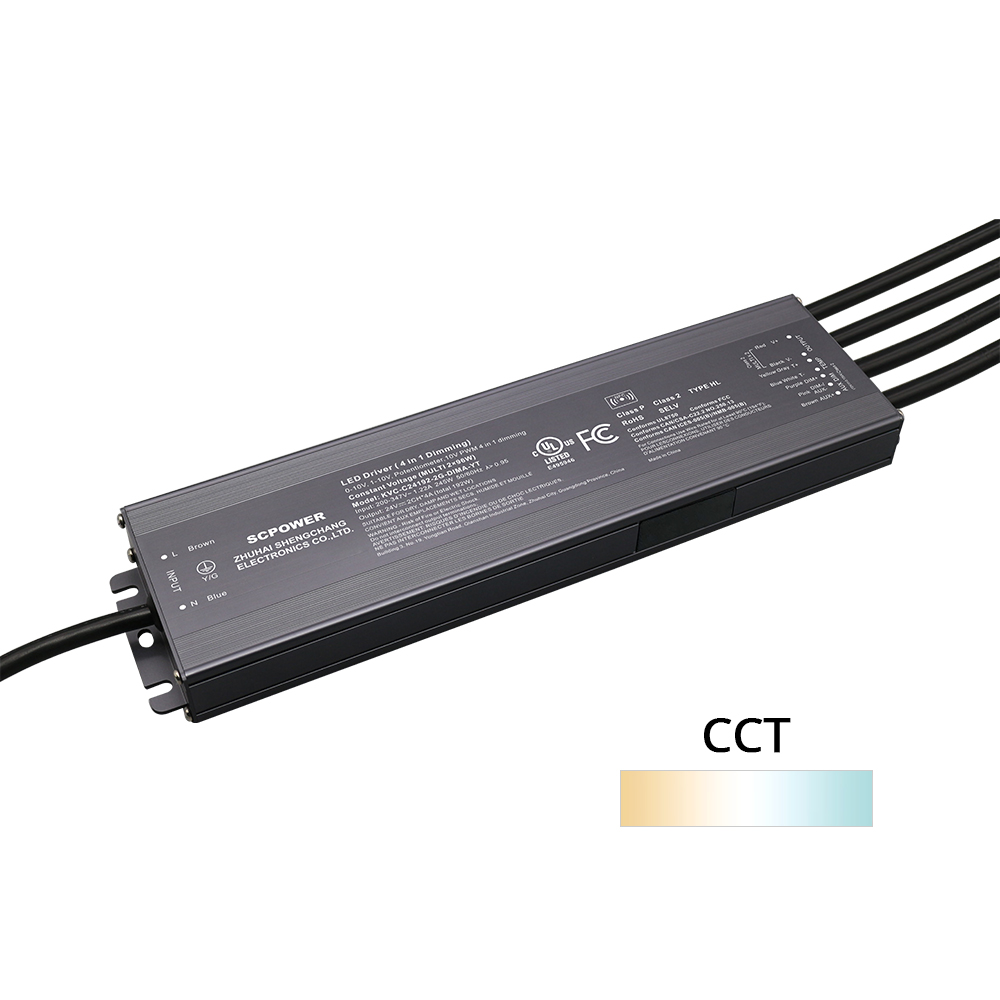

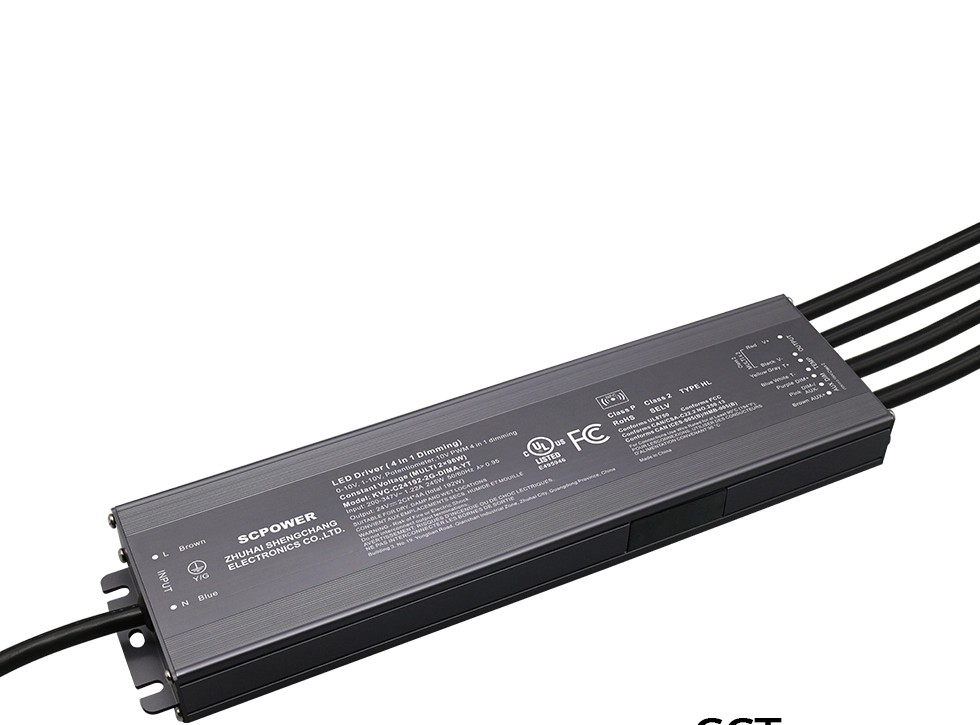

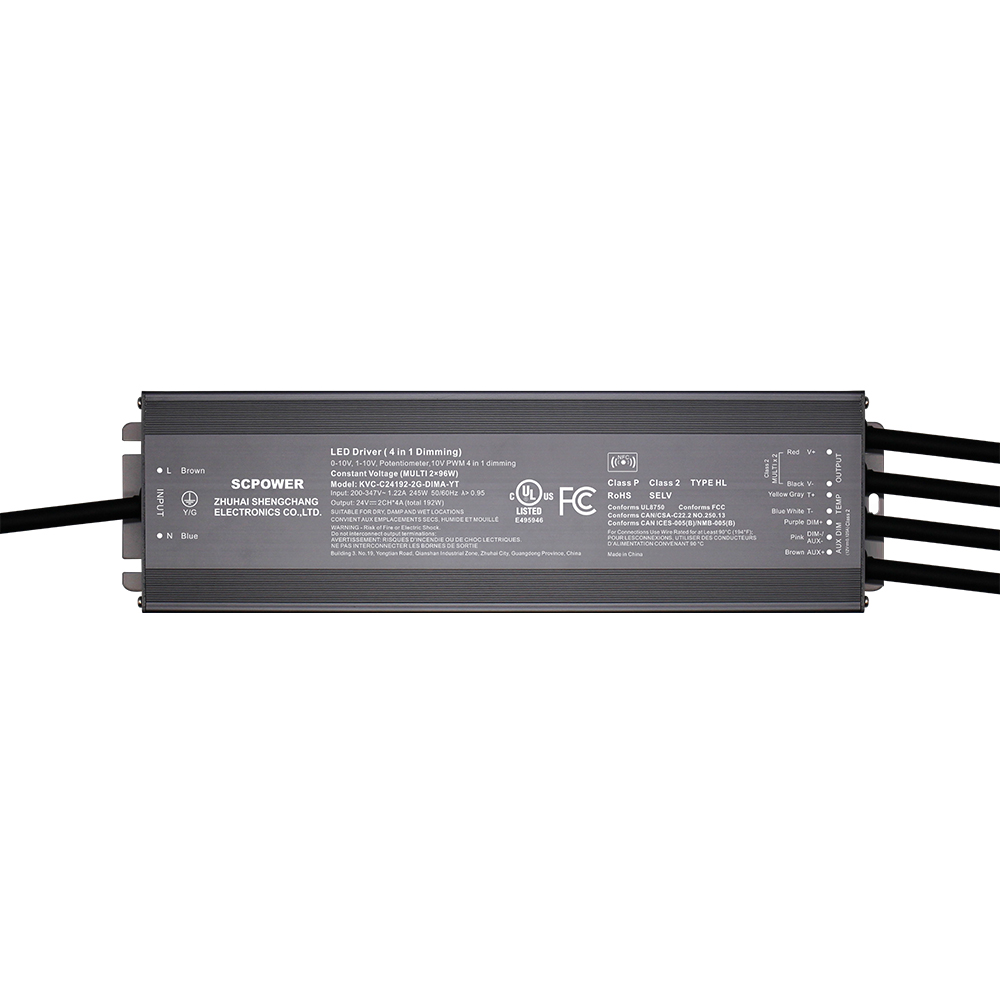

192W CCT 0-10V Dimmable Constant Voltage LEDDriver 24V 36V 48V DC
Flicker-free,output dimming frequency 20KHz reach the exemption level,
Digital dimming, single light control,with auxiliary power supply & temperature control
Output: | Constant Voltage |
Range: | 200-347VAC |
PFC design: | Built-in active PFC function |
Efficiency: | Up to 93.5% |
Protections: | Short circuit/ over load/ over temperature |
Heat dissipation: | Cooling by free air convection |
Waterproof performance: | Full protection Aluminum housing, for dry, damp and wet locations |
Dimming function: | 0-10V dimming: 0-10V/1-10V/Potentiometer/10V PWM 4 in 1 |
Dimming range: | 0.1-100% |
NFC function | Fine tune the output voltage, write and read address |
Application: | Suitable for LED lighting and moving sign applications |
Warranty: | 5 years warranty |

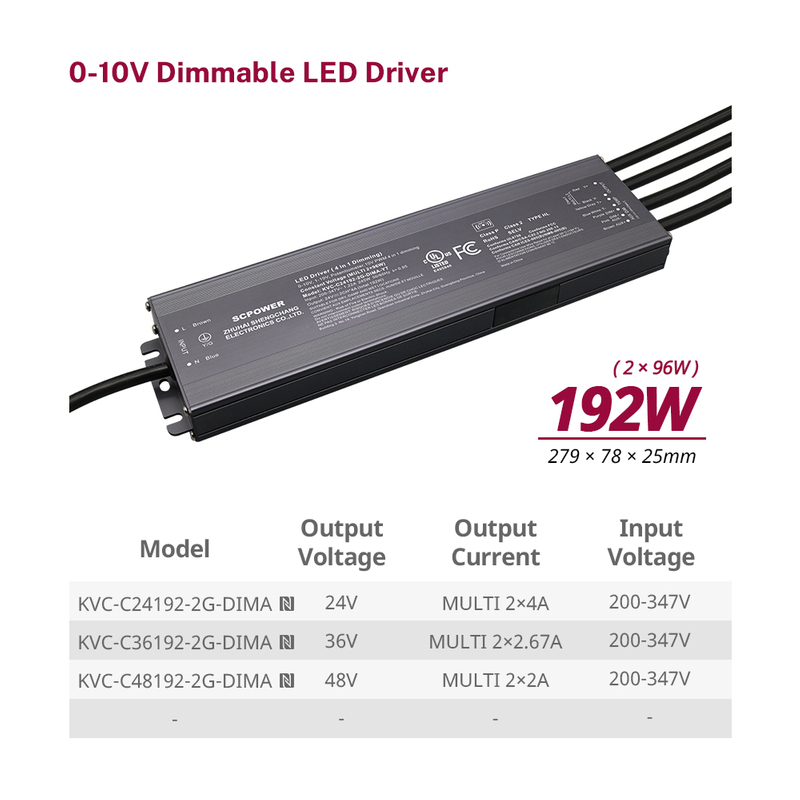

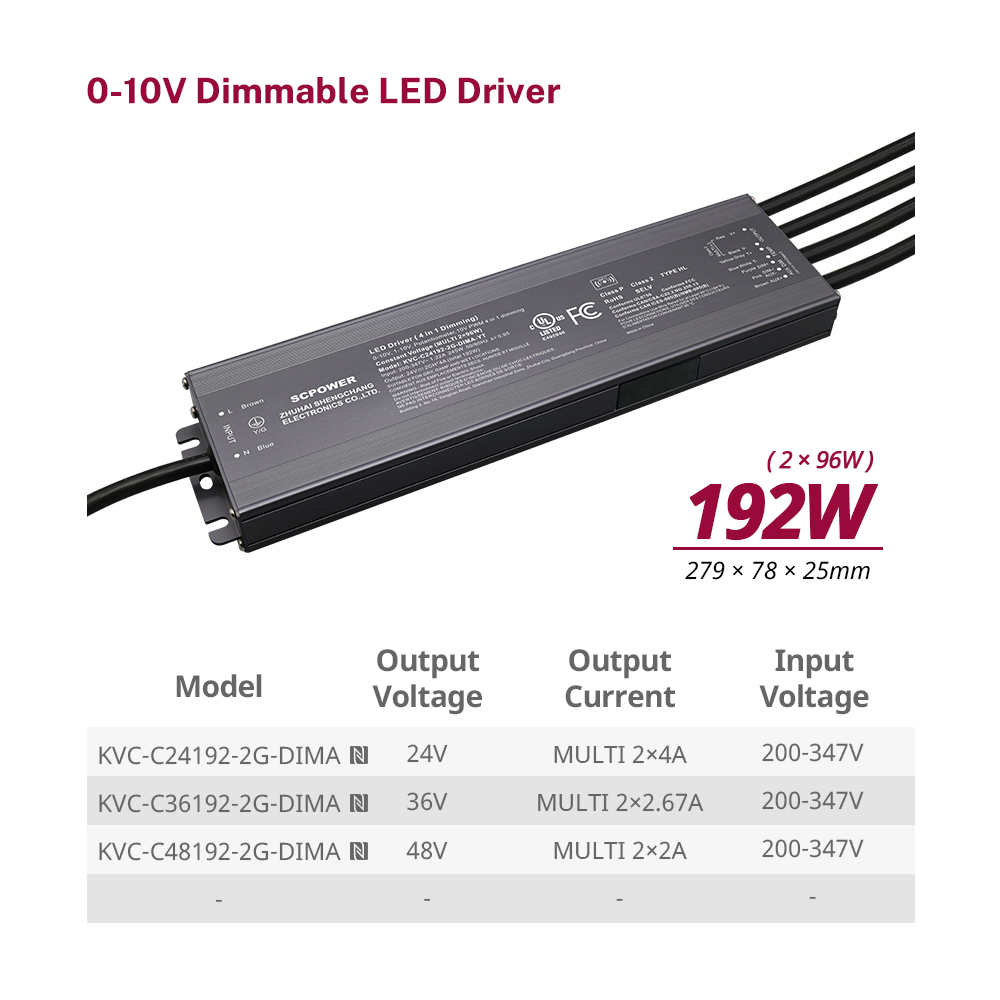

Output Power | Model Number | Output Voltage | Output Current | Size | Weight |
192W | KVC-C24192-2G-DIMA | 24V | 2*4A | 279*78*25mm | |
KVC-C36192-2G-DIMA | 36V | 2*2.67A | |||
KVC-C48192-2G-DIMA | 48V | 2*2A |
0-10v dimming is smooth
0-10v dimming, input AC 100-277V dimming signal.
Apply to leading edge trailing edge Triac dimmers and dimming system.
Over current protection, short circuit protection, over temperature protection.
192W CCT 0-10V Dimmable Constant Voltage LEDDriver 24V 36V 48V DC
Flicker-free,output dimming frequency 20KHz reach the exemption level,
Digital dimming, single light control,with auxiliary power supply & temperature control
Output: | Constant Voltage |
Range: | 200-347VAC |
PFC design: | Built-in active PFC function |
Efficiency: | Up to 93.5% |
Protections: | Short circuit/ over load/ over temperature |
Heat dissipation: | Cooling by free air convection |
Waterproof performance: | Full protection Aluminum housing, for dry, damp and wet locations |
Dimming function: | 0-10V dimming: 0-10V/1-10V/Potentiometer/10V PWM 4 in 1 |
Dimming range: | 0.1-100% |
NFC function | Fine tune the output voltage, write and read address |
Application: | Suitable for LED lighting and moving sign applications |
Warranty: | 5 years warranty |
Output Power | Model Number | Output Voltage | Output Current | Size | Weight |
192W | KVC-C24192-2G-DIMA | 24V | 2*4A | 279*78*25mm | |
KVC-C36192-2G-DIMA | 36V | 2*2.67A | |||
KVC-C48192-2G-DIMA | 48V | 2*2A |
0-10v dimming is smooth
0-10v dimming, input AC 100-277V dimming signal.
Apply to leading edge trailing edge Triac dimmers and dimming system.
Over current protection, short circuit protection, over temperature protection.
