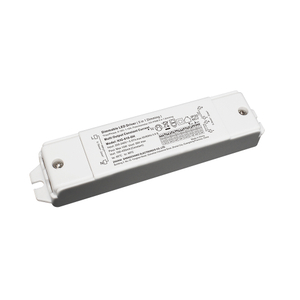

30 40 60 Watt CC Dim to Warm Triac 0-10V Dimmable Constant Current LED Driver 220vac 230vac

Model:
Availability:
  • Triac 0-10V

  • Isolated

  • Constant Voltage

  • 1CH (Dimming), 2CH (Dim to warn)

  • IP20, Dry & Damp

  • 200-240VAC

  • 30W, 40W, 60W

  • 3V-42V

  • CE, RoHS, REACH

Advantage

30 40 60 Watt CC Dim to Warm Triac 0-10V Dimmable Constant Current LED Driver 220vac 230vac


Output:

Constant Current

NFC function:

Adjust output current by NFC;

Switch between dim for single color and Dim to warm for CCT light by NFC

Range:

200-240VAC

PFC design:

Built-in active PFC function

Protections:

Short circuit/ over load/ over temperature

Heat dissipation:

Cooling by free air convection

Waterproof performance:

IP20 (EU)

Dimming function:

Phase dimming: work with leading edge, MLV and trailing edge, ELV, TRIAC dimmers.

0-10V dimming: 0-10V/1-10V/Potentiometer/10V PWM 4 in 1

Dimming range:

1-100%

Application:

Suitable for the application of indoor LED lighting

Warranty:

5 years warranty


Specification


Output Power

Model Number

Output Voltage

Output Current

Size

Channel

30W

KIG-030-W2C-DHS

3-42V

300-1050mA

320*37*24mm

2CH Class 2

40W

KIG-040-W2C-DHS

3-42V

400-1400mA

324.7*34.8*24.1mm

60W

KIG-060-W2C-DHS

3-42V

500-2100mA

342*34.8*24.1mm



Triac & 0-10V LED Power Supply Wiring Diagram

Triac & 0-10V LED Power Supply


Dimming Operation and Connecting Diagram  (Dim to warm)

l Using two ways of dimming at the same time, you must be assured that LED lighting is up to the max. Brightness then you could operate with the other dimming;


  Triac & 0-10V LED Power Supply (3)


Using one dimming ---TRIAC/Phase cut dimming

1. The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection

a phase /Triac dimmer or lighting system.

2. Working with leading edge, MLV and trailing edge, ELV, TRIAC dimmers or light system.

3. Please try to use dimmers with power at least 1.5 times as the output power of the driver.

       Triac & 0-10V LED Power Supply (4)

l Using one dimming ---0-10/ 1-10V/ 10V PWM/ Potentiometer dimming


Triac & 0-10V LED Power Supply (5)Triac & 0-10V LED Power Supply (7)Triac & 0-10V LED Power Supply (6)
