| Ouput Power: | |
|---|---|
Triac
Isolated
Constant Voltage
1CH (Dimming)
IP66, Dry & Damp, Wet
200-240VAC
300W, 320W, 360W
12/ 24/ 36/ 48V
CE, RoHS, REACH

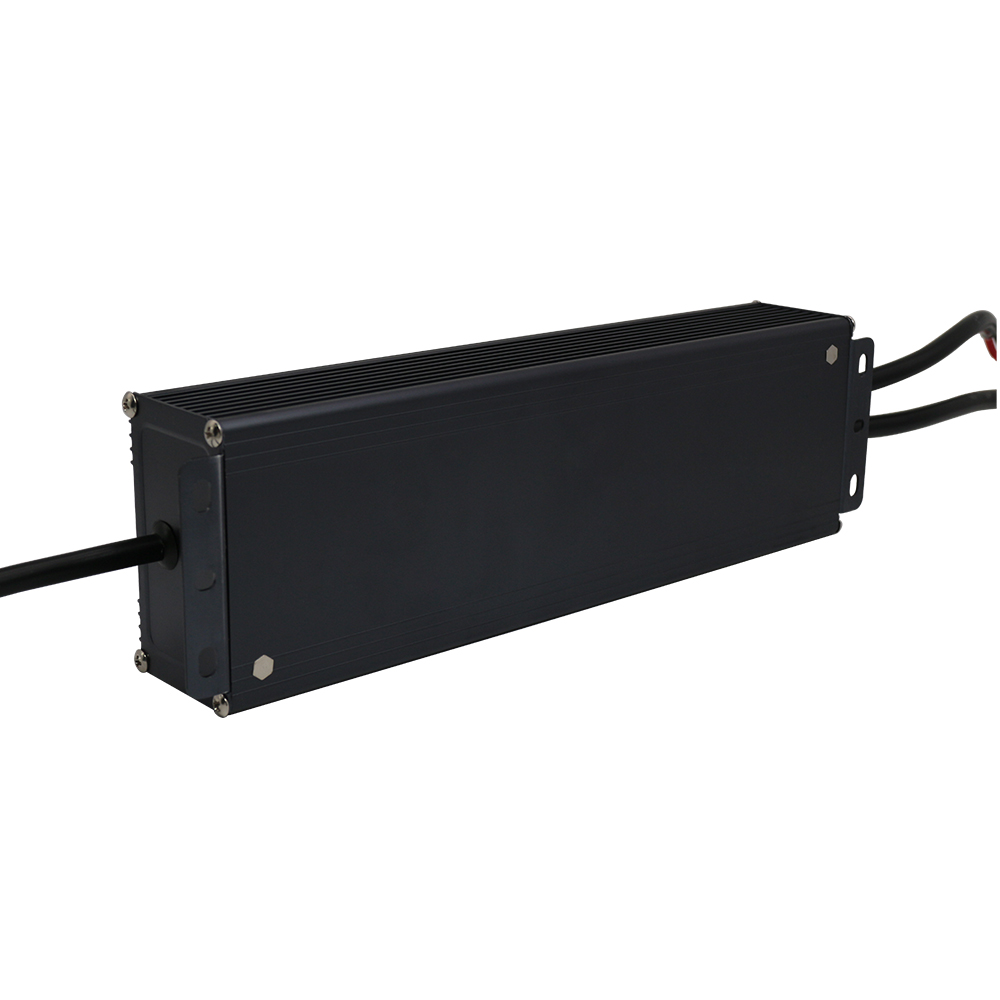

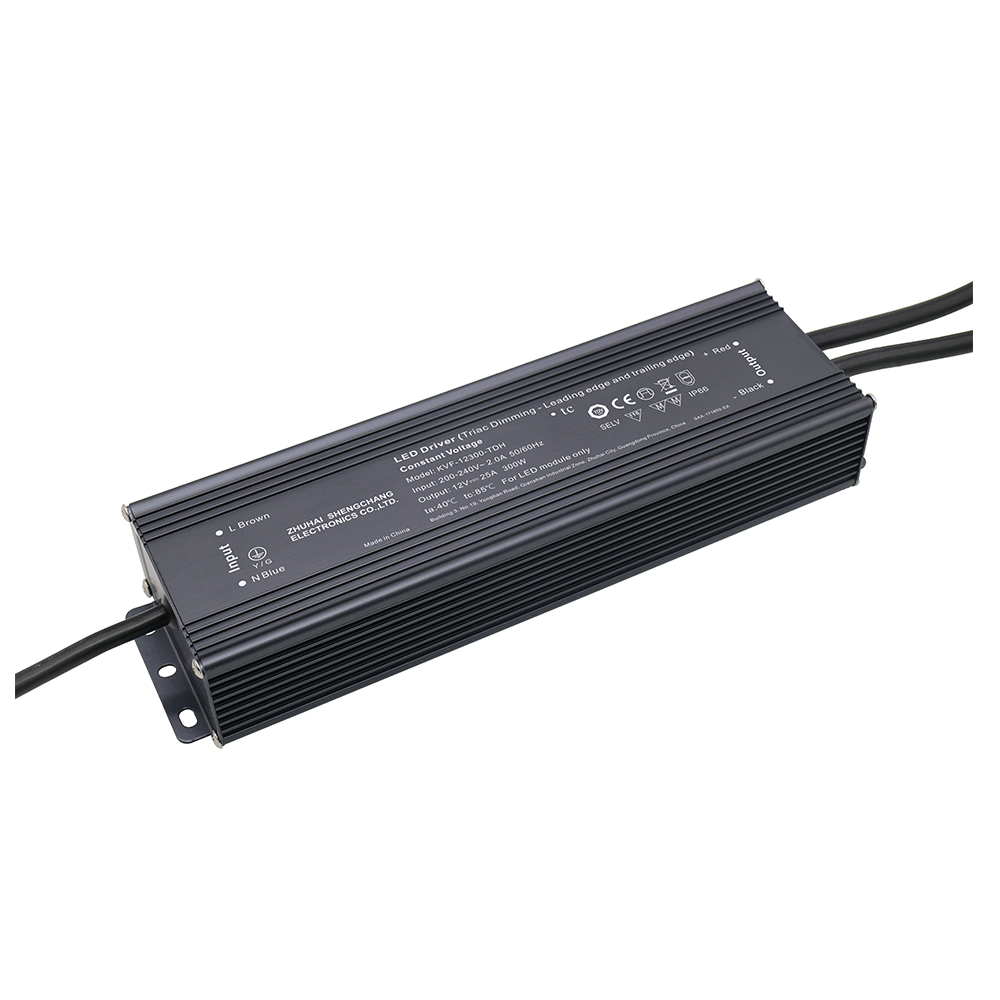

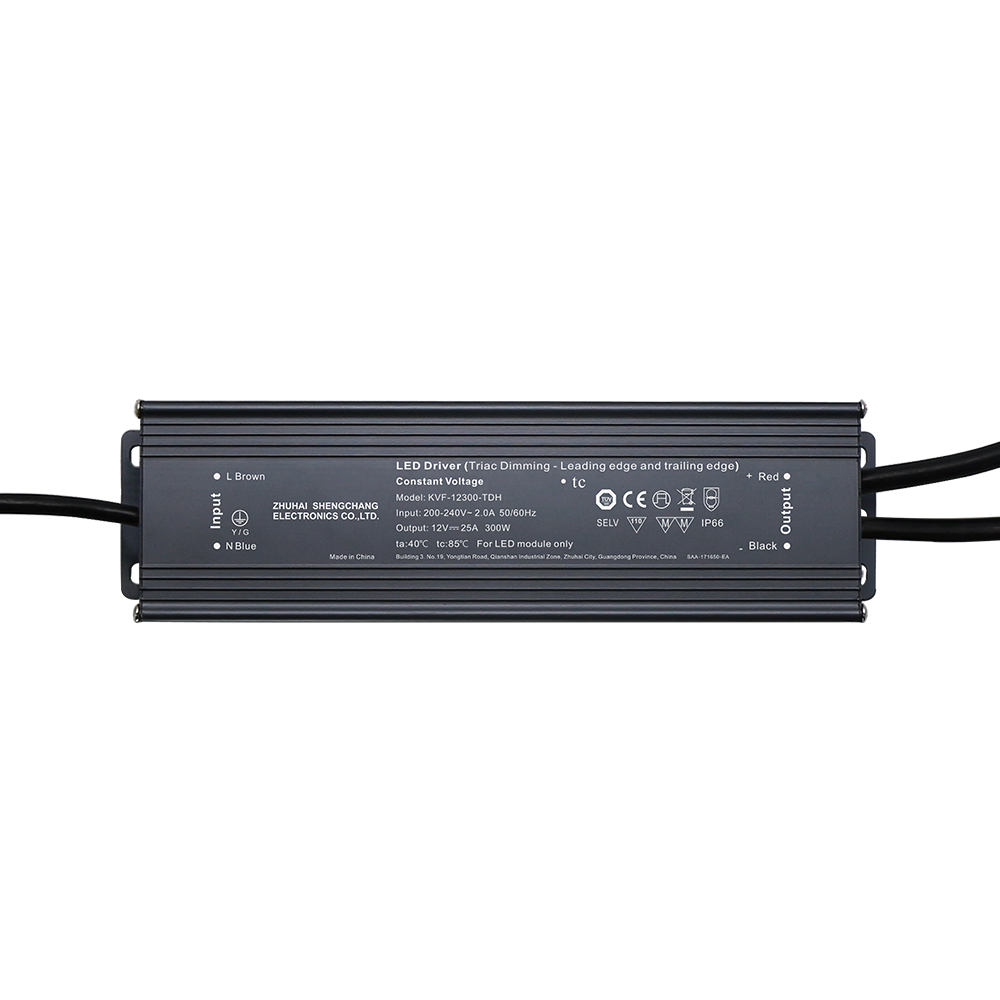

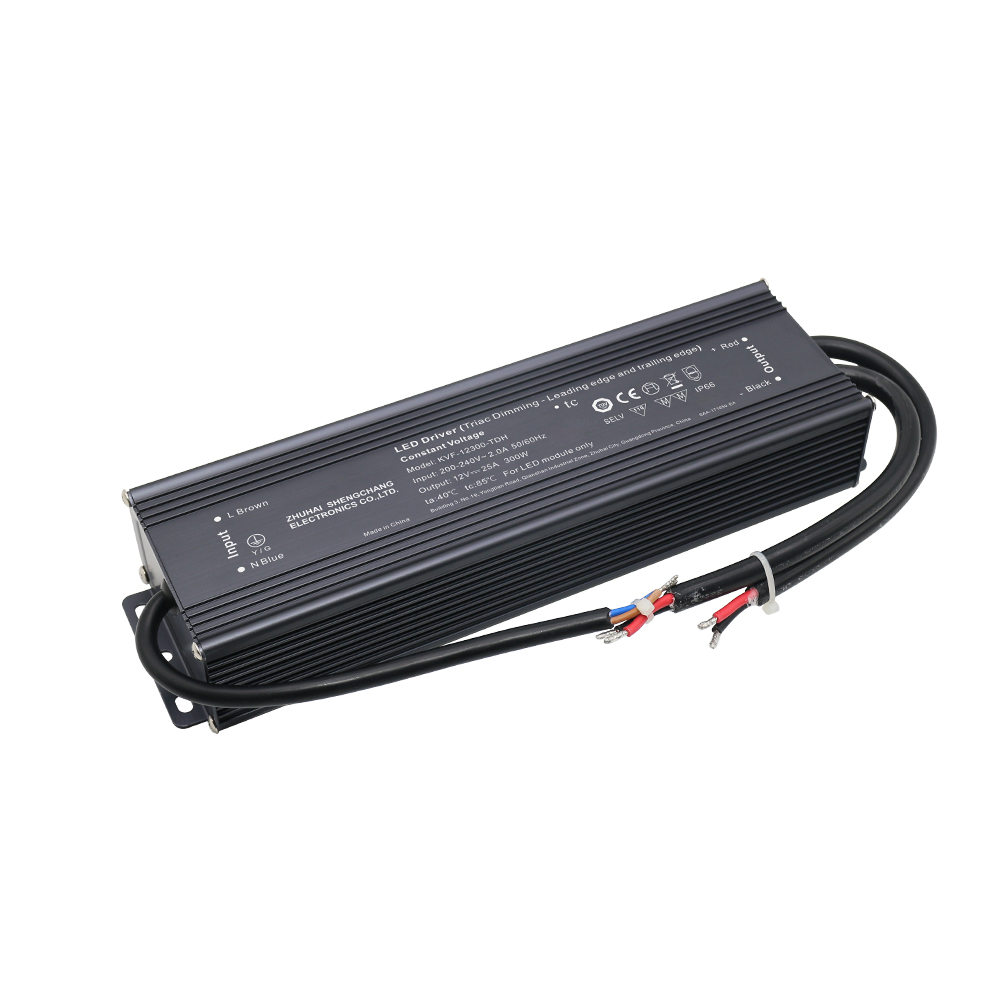

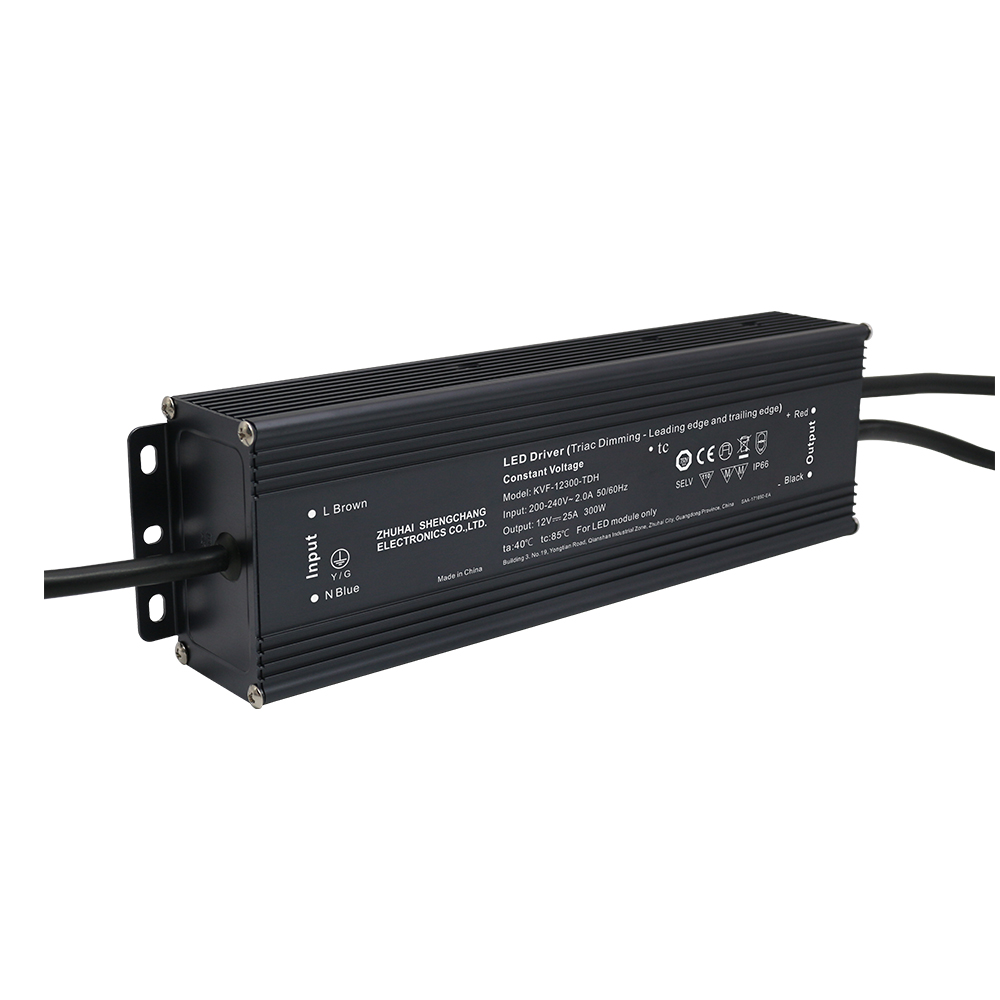

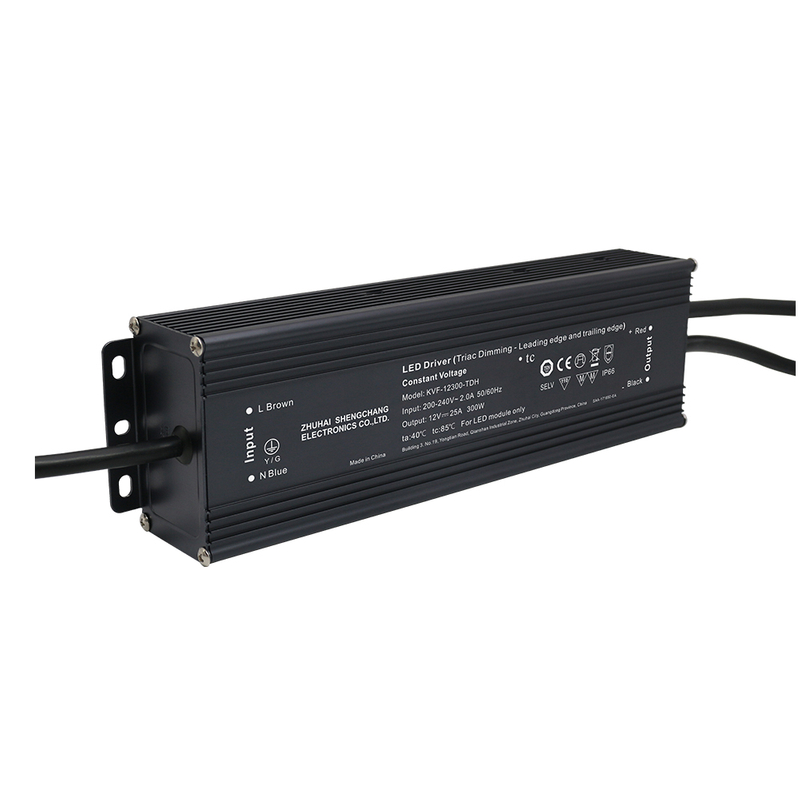

300 320 360 Watt CV Triac Dimmable LED Power Supply 12 24 36 48 volt
Output: | Constant Voltage |
Range: | 200-240VAC |
PFC design: | Built-in active PFC function |
Protections: | Short circuit/ over load/ over temperature |
Heat dissipation: | Cooling by free air convection |
Waterproof performance: | IP66 |
Dimming function: | Phase dimming: work with leading edge and trailing edge, TRIAC dimmers. |
Dimming range: | 0-100% |
Application: | Suitable for the application of LED lighting |
Warranty: | 5 years warranty |

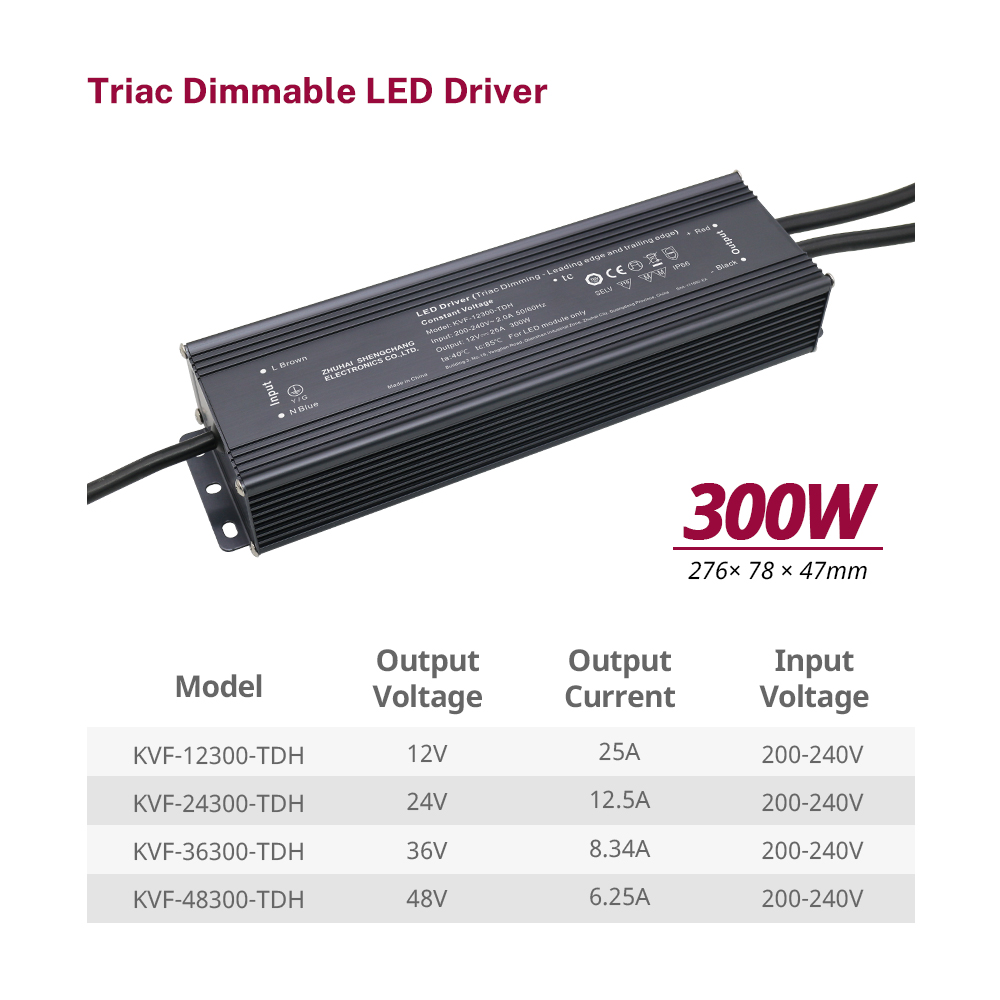

Output Power | Model Number | Output VoltaFe | Output Current | Size | WeiFht |
300W | KVF-12300-TDH | 12V | 25A | 276*78*47mm | 1.6kg |
KVF-24300-TDH | 24V | 12.5A | |||
KVF-36300-TDH | 36V | 8.33A | |||
KVF-48300-TDH | 48V | 6.25A | |||
320W | KVF-12320-TDH | 12V | 26.67A | ||
KVF-24320-TDH | 24V | 13.34A | |||
KVF-36320-TDH | 36V | 8.89A | |||
KVF-48320-TDH | 48V | 6.67A | |||
360W | KVF-12360-TDH | 12V | 30A | ||
KVF-24360-TDH | 24V | 15A | |||
KVF-36360-TDH | 36V | 10A | |||
KVF-48360-TDH | 48V | 7.5A |
Triac LED Driver Wiring Diagram
Triac LED Driver Size（see the spec download）
