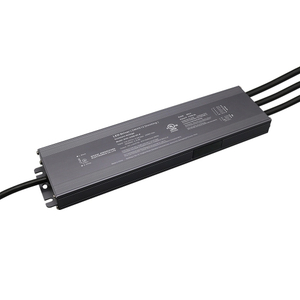

300W Class 2 CV Dimming CW RGB RGBW RGBCW DMX Dimmable LED Driver 1 2 3 4 5 Channels from China manufacturer

Products Detail

You are here: Home / Products / DMX512 Dimmable LED Driver / Constant Voltage DMX LED Driver / 300W Class 2 CV Dimming CW RGB RGBW RGBCW DMX Dimmable LED Driver 1 2 3 4 5 Channels

Product Category

Online shopping

Official Store on Alibaba.com

Official Store on 1688.com

Dimming Type:
DMX512
Isolated Type:
Isolated
Output Type:
Constant Voltage
Channels:
1CH (Dimming), 2CH (CCT), 1-5CH (RGBCW)
Waterproof Performance:
IP66, Dry & Damp, Wet
Input Voltage:
100-277VAC
Output Power:
300W
Output Voltage:
12/ 24/ 36/ 48V
Certification:
UL & cUL, FCC, Class 2

Advantage

150W 200W Class 2 CV RGB CW DMX Dimmable LED Driver 12 24 36 48 Volt

Output:	Constant Voltage
Range:	110-277VAC
PFC design:	Built-in active PFC function
Efficiency:	Up to 93%
Protections:	Short circuit/ over load/ over temperature
Heat dissipation:	Cooling by free air convection
Waterproof performance:	Full protection aluminum housing, for dry, damp, wet locations
Dimming function:	DMX512 and RDM dim. Digital dimming, single light control, DMX512 signal-side isolation
Dimming range:	0.1-100%
NFC function	Fine tune the output voltage, write and read address
ProNFC	Suitable for LED lighting and moving sign applications
Warranty:	5 years warranty

Specification

Output Power	Channel	Model Number	Output Voltage	Output Current	Others standard	Size	Weight
300W	1 Channel Dimming	KVX-12300-1C-J	12V	25A	Class P, TYPE HL, Wet	31612542.7mm (LWH)	1.15kg
		KVX-24300-1C-J	24V	12.5A
		KVX-36300-1C-J	36V	8.33A
		KVX-48300-1C-J	48V	6.25A
	2 Channels CCT	KVX-12300-2C-J	12V	25A	Class P, TYPE HL, Wet
		KVX-24300-2C-J	24V	12.5A
		KVX-36300-2C-J	36V	8.33A
		KVX-48300-2C-J	48V	6.25A
	3 Channels RGB	KVX-12300-3C-J	12V	25A	Class P, TYPE HL, Wet
		KVX-24300-3C-J	24V	12.5A
		KVX-36300-3C-J	36V	8.33A
		KVX-48300-3C-J	48V	6.25A
	4 Channels RGBW	KVX-C12300-4C-J	12V	25A	Class P, TYPE HL, Wet
		KVX-C24300-4C-J	24V	12.5A	Class2, Class P, TYPE HL, Wet
		KVX-C36300-4C-J	36V	8.33A
		KVX-C48300-4C-J	48V	6.25A
	5 Channels RGBCW	KVX-C12300-5C-J	12V	25A	Class2, Class P, TYPE HL, Wet
		KVX-C24300-5C-J	24V	12.5A
		KVX-C36300-5C-J	36V	8.33A
		KVX-C48300-5C-J	48V	6.25A

DMX Driver Wiring Diagram

300W Class 2 RGB CW DMX Dimmable LED Driver 1 2 3 4 5 channel

300W RGBCW DMX LED Drivers Size:

300W RGB CW DMX Dimmable LED Driver size

Description

This series is designed for DMX RDM full colour dimming application, especially suitable for architeture, art and museum, entertainment, hospitality, healthcare and urban landscape.
