| Ouput Power: | |
|---|---|
0-10V
Isolated
Constant Voltage
1CH (Dimming)
IP66, Dry & Damp, Wet
110-277VAC
30W, 60W, 80W, 96W, 100W, 120W, 150W, 200W, 300W, 500W, 600W, 180W, 192W, 288W
12/ 24/ 36/ 48V
UL & cUL, FCC, Class 2, ICES
30W ~ 600W CV 0-10V Dimmable LED Power Supplies with Junction Box
Output: | Constant Voltage |
Range: | 100-277VAC |
PFC design: | Built-in active PFC function |
Protections: | Short circuit/ over load/ over temperature |
Heat dissipation: | Cooling by free air convection |
Waterproof performance: | For dry, damp & wet location |
Dimming function: Dimming range: | 0-10V dimming: 0-10V/1-10V/Potentiometer/10V PWM 4 in 1 0-100% |
Application: | Suitable for LED lighting and moving sign applications |
Warranty: | 5 years warranty |
Output Power | Model Number | Output Voltage | Output Current | Input Voltage | Size | Weight |
30W | KVE-12030-DMWJ | 12V | 5A | 100-277V AC | 165*95.4*43.8mm | kg |
KVE-24030-DMWJ | 24V | 2.5A | ||||
KVE-33030-DMWJ | 36V | 1.67 | ||||
KVE-48030-DMWJ | 48V | 1.25A | ||||
60W | KVE-12060-DMWJ | 12V | 5A | 188*95.4*42.7mm | ||
KVE-24060-DMWJ | 24V | 2.5A | ||||
KVE-36060-DMWJ | 36V | 1.67 | ||||
KVE-48060-DMWJ | 48V | 1.25A | ||||
80W | KVE-12080-DMWJ | 12V | 6.66A | |||
KVE-24080-DMWJ | 24V | 3.34A | ||||
KVE-36080-DMWJ | 36V | 2.22A | ||||
KVE-48080-DMWJ | 48V | 1.67A | ||||
96W | KVE-24096-DMWJ | 24V | 4A | |||
KVE-36096-DMWJ | 36V | 2.67A | ||||
KVE-48096-DMWJ | 48V | 2A | ||||
100W | KVE-12100-DMWJ | 12V | 8.34A | |||
KVE-24100-DMWJ | 24V | 4.17A | ||||
KVE-36100-DMWJ | 36V | 2.78A | ||||
KVE-48100-DMWJ | 48V | 2.09A | ||||
120W | KVE-12120-DMWJ | 12V | 10A | |||
KVE-24120-DMWJ | 24V | 5A | ||||
KVE-36120-DMWJ | 36V | 3.33A | ||||
KVE-48120-DMWJ | 48V | 2.5A | ||||
Output Power | Model Number | Output Voltage | Output Current | Input Voltage | Size | Weight |

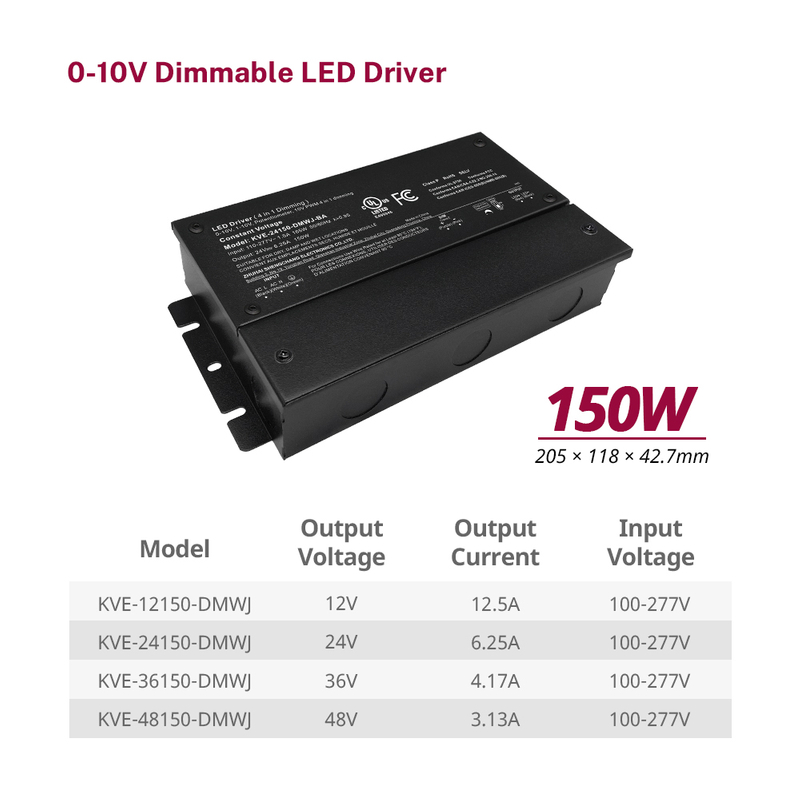

150W | KVE-12150-DMWJ | 12V | 12.5A | 100-277V AC | 205*118*42.7mm | kg |
KVE-24150-DMWJ | 24V | 6.25A | ||||
KVE-36150-DMWJ | 36V | 4.17A | ||||
KVE-48150-DMWJ | 48V | 3.13A | ||||
200W | KVE-12200-DMWJ | 12V | 16.67A | |||
KVE-24200-DMWJ | 24V | 8.34A | ||||
KVE-36200-DMWJ | 36V | 5.56A | ||||
KVE-48200-DMWJ | 48V | 4.17A | ||||
Output Power | Model Number | Output Voltage | Output Current | Input Voltage | Size | Weight |

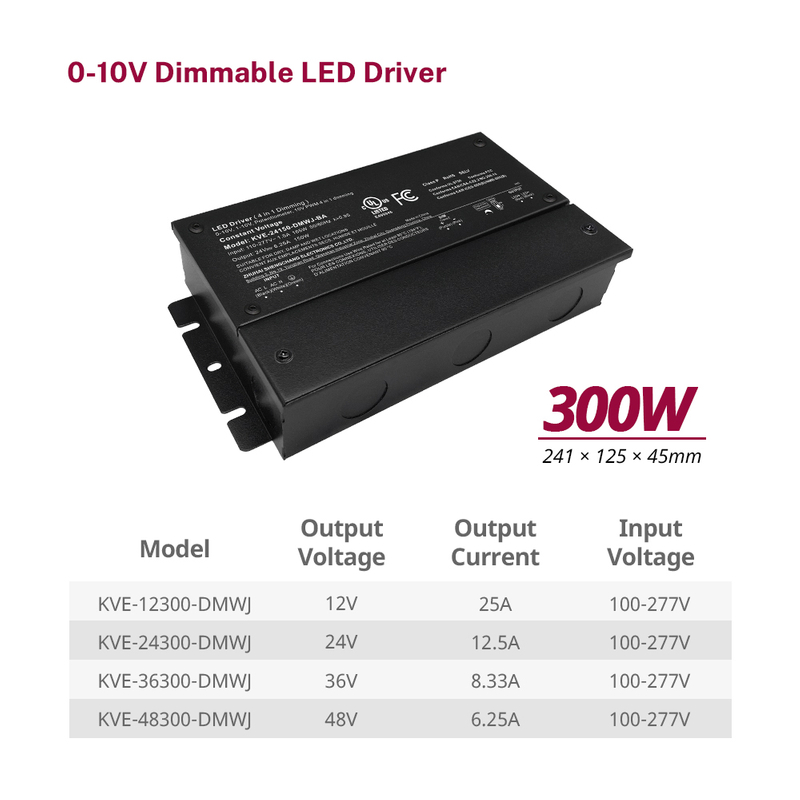

300W | KVE-12300-DMWJ | 12V | 25A | 100-277V AC | 241.125*45mm | kg |
KVE-24300-DMWJ | 24V | 12.5A | ||||
KVE-36300-DMWJ | 36V | 8.33A | ||||
KVE-48300-DMWJ | 48V | 6.25A | ||||
Output Power | Model Number | Output Voltage | Output Current | Input Voltage | Size | Weight |
500W | KVE-12150-DMWJ | 12V | 12.5A | 100-277V AC | 280*140*50.2mm | kg |
KVE-24150-DMWJ | 24V | 6.25A | ||||
KVE-36150-DMWJ | 36V | 4.17A | ||||
KVE-48150-DMWJ | 48V | 3.13A | ||||
600W | KVE-12200-DMWJ | 12V | 16.67A | |||
KVE-24200-DMWJ | 24V | 8.34A | ||||
KVE-36200-DMWJ | 36V | 5.56A | ||||
KVE-48200-DMWJ | 48V | 4.17A | ||||
Output Power | Model Number | Output Voltage | Output Current | Input Voltage | Size | Weight |
180W | KVE-C12180-DMWJ | 12V | 5A * 3 | 100-277V AC | 229*125*45mm | |
300W | KVE-C12300-DMWJ | 12V | 5A * 5 | 293*125*45mm | ||
192W | KVE-C24192-DMWJ | 24V | 4A * 2 | 100-277V AC | 229*125*45mm | |
KVE-C36192-DMWJ | 36V | 2.67A * 2 | ||||
KVE-C48192-DMWJ | 48V | 2A * 2 | ||||
288W | KVE-C24288-DMWJ | 24V | 4A * 3 | 293*125*45mm | ||
KVE-C36288-DMWJ | 36V | 2.67A * 3 | ||||
KVE-C48288-DMWJ | 48V | 2A * 3 | ||||
0-10V LED Power Supply
0-10V LED Power Supply Size:
