96W 100W 150W 200W Track Lighting Rail Triac 0-10V LED Light Driver for LED Bar

Availability:
Inquire Add to Basket

  • Triac 0-10V

  • 100-277Vac (North America)

  • UL, FCC, Class 2

96W 100W 150W 200W Track Lighting Rail Triac 0-10V LED Light Driver for LED Bar 24v


Output Power

Model Number

Output Voltage

Output Current

Size

96W
Class II

KVL-24096-DW

24V

4A

329*24.2*20mm

KVL-48096-DW

48V

2A

100W

KVL-24100-DW

24V

4.17A

KVL-48100-DW

48V

2.09A

150W

KVL-24150-DW

24V

6.25A

339*26*24.2mm

KVL-48150-DW

48V

3.13A

200W

KVL-24200-DW

24V

8.34A

KVL-48200-DW

48V

4.17A

192W
(96W*2)
Class II

KVL-24192-DW

24V

4A

339*26*24.2mm

KVL-48192-DW

48V

2A

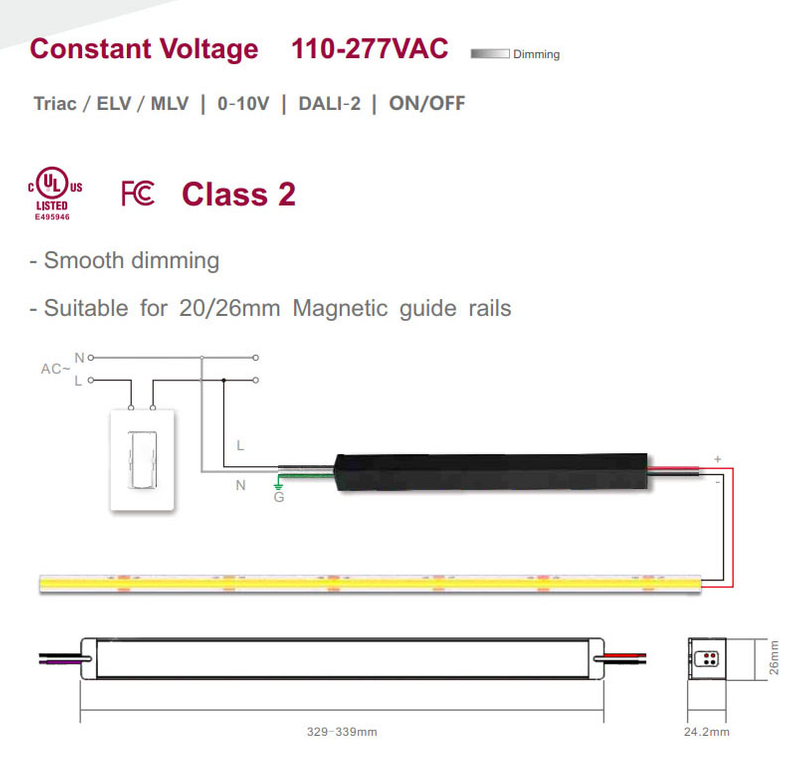

96W 100W 150W 200W Track Lighting Rail Triac 0-10V LED Light Driver for LED Bar 48v


96W 100W 150W 200W Track Lighting Rail Triac 0-10V LED Light Driver for LED Bar
