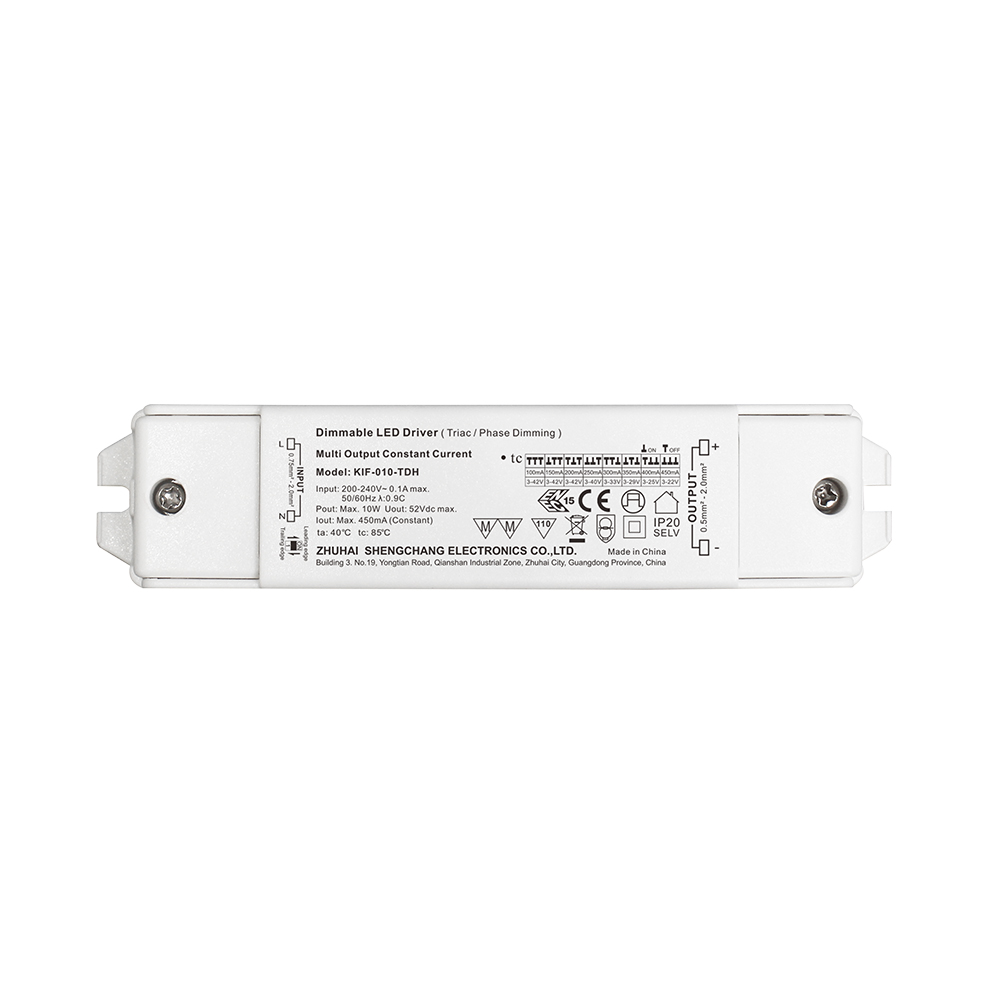

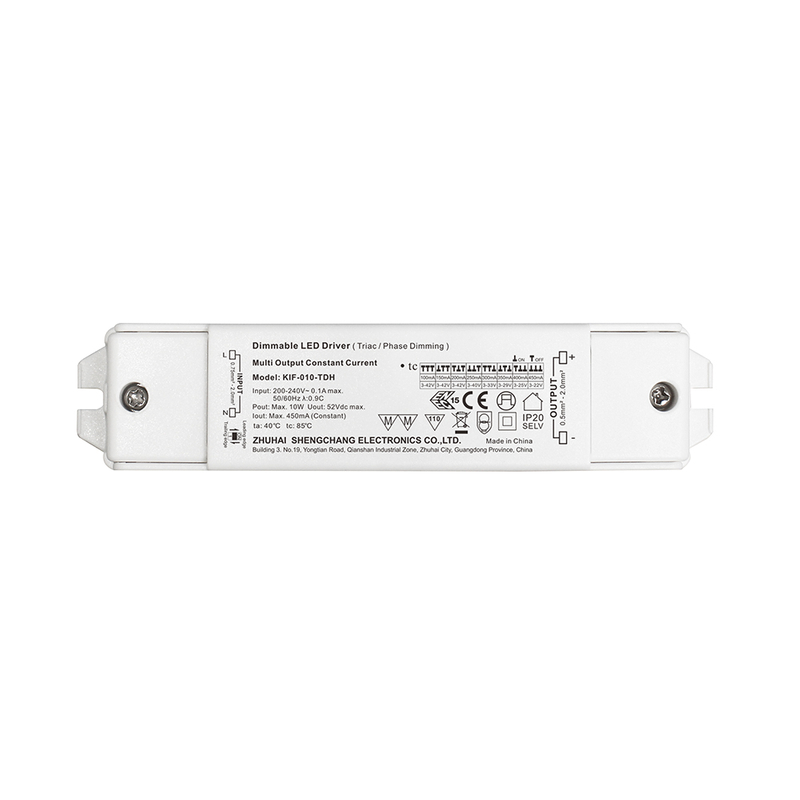

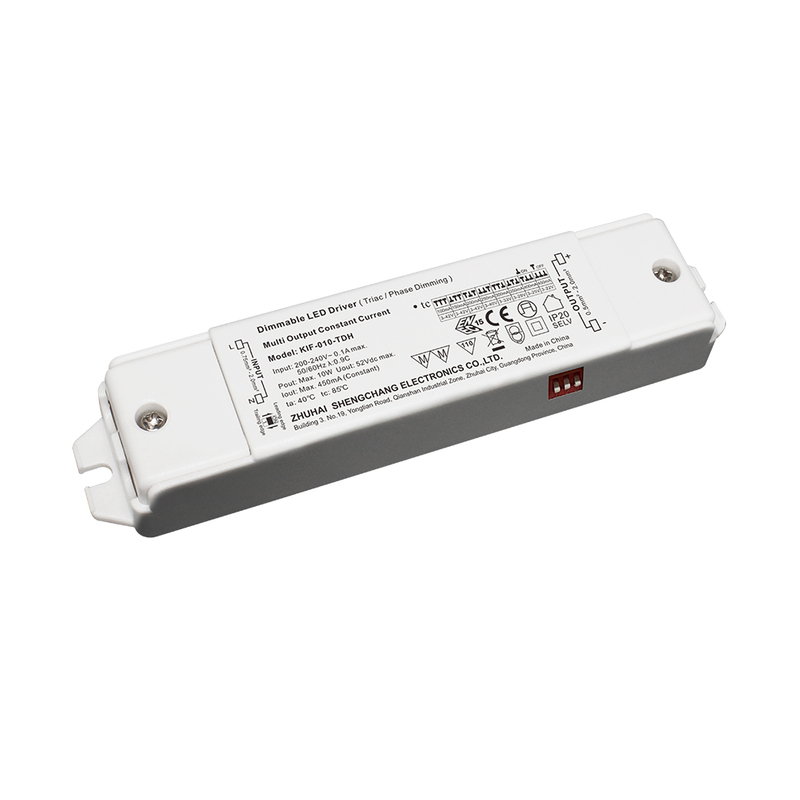

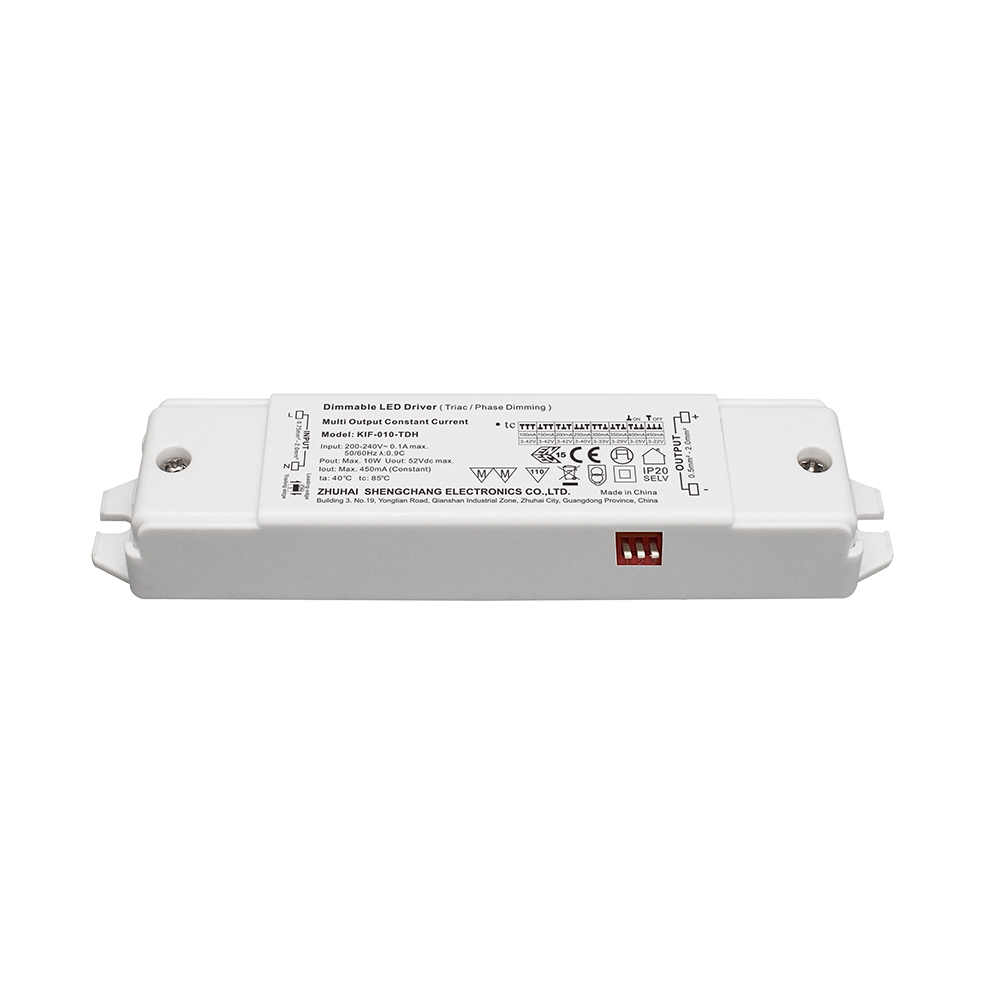

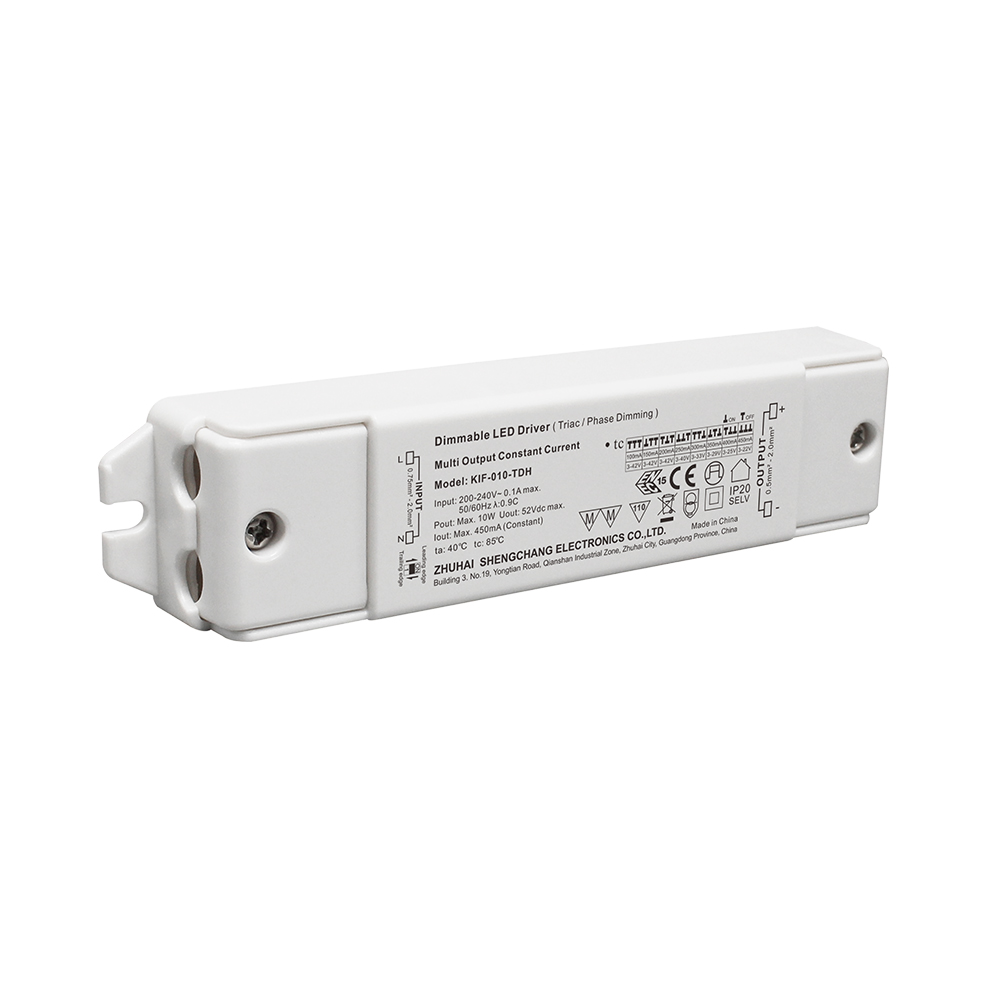

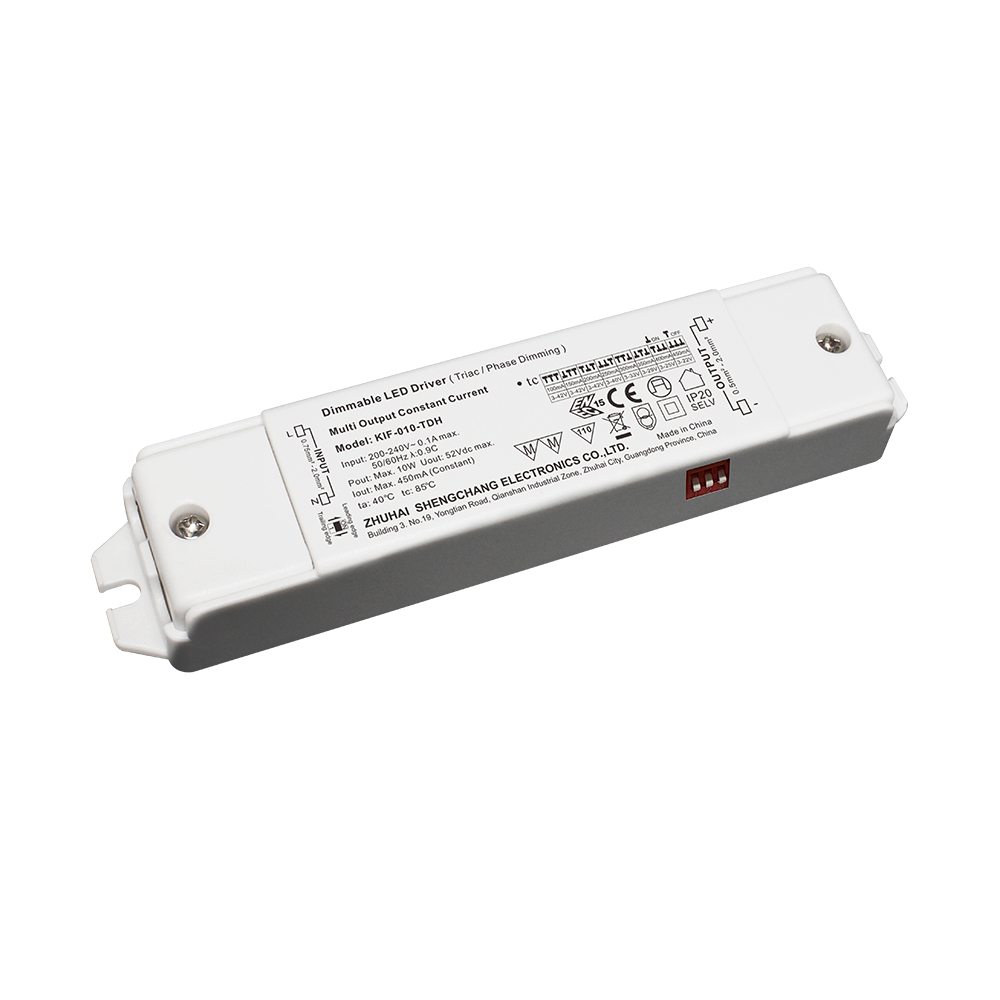

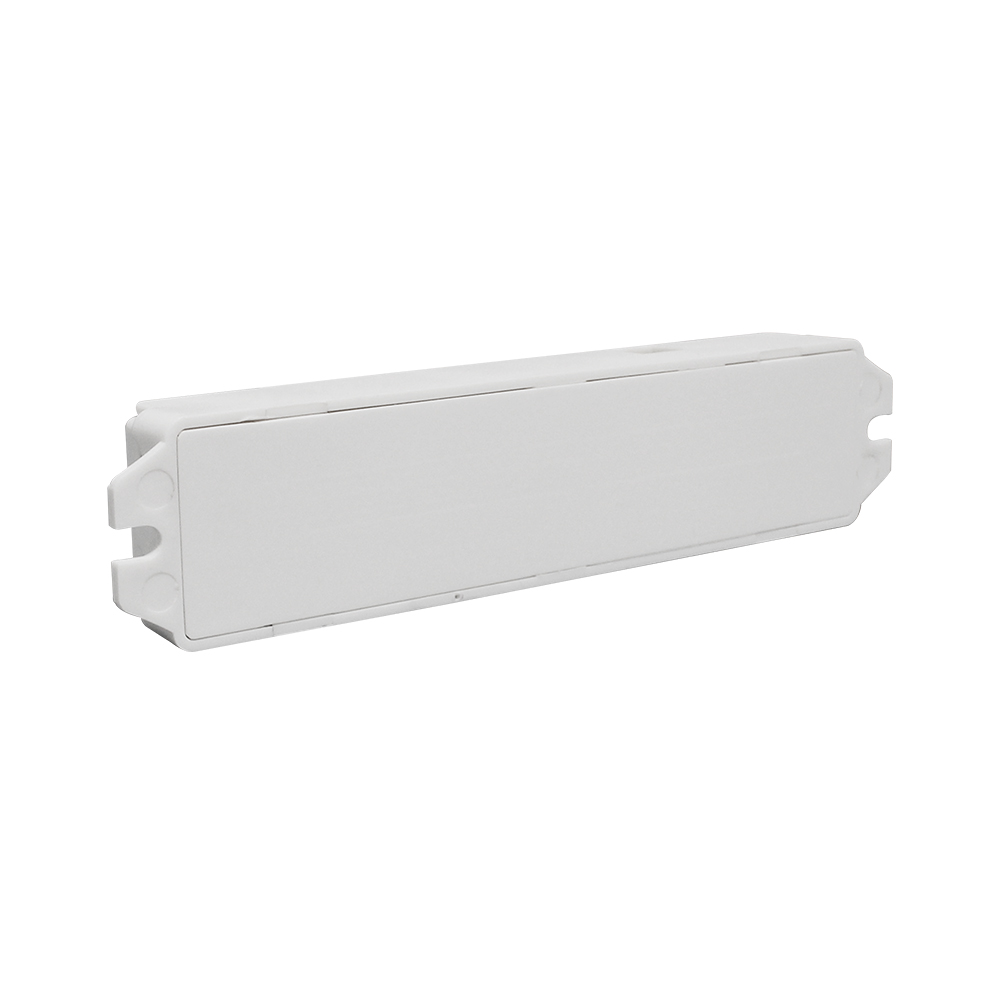

10 20 40 60 Watt CC Triac Dimming LED Power Supply 220 230 240 Volt

Ouput Power:
Availability:
  • Triac

  • Isolated

  • Constant Voltage

  • 1CH (Dimming)

  • IP20, Dry & Damp

  • 200-240VAC

  • 10W, 20W, 40W, 60W

  • 3V-42V

  • SAA, ENEC, CB, CE, RoHS, REACH

Advantage

10 20 40 60 Watt CC Triac Dimming LED Power Supply 220 230 240 Volt


Output:

Range:

Constant Current

200-240VAC

PFC design:

Built-in active PFC function

Protections:

Short circuit/ over temperature

Heat dissipation:

Cooling by free air convection

Waterproof performance:

IP20

Dimming function:

Triac/phase cut dimming : Work with leading or trailing edge Triac dimmer

Dimming range:

1-100%

Application:

Suitable for the application of indoor LED lighting

Warranty:

5 years warranty

Specification


Output Power

Model Number

Output

Size

Weight

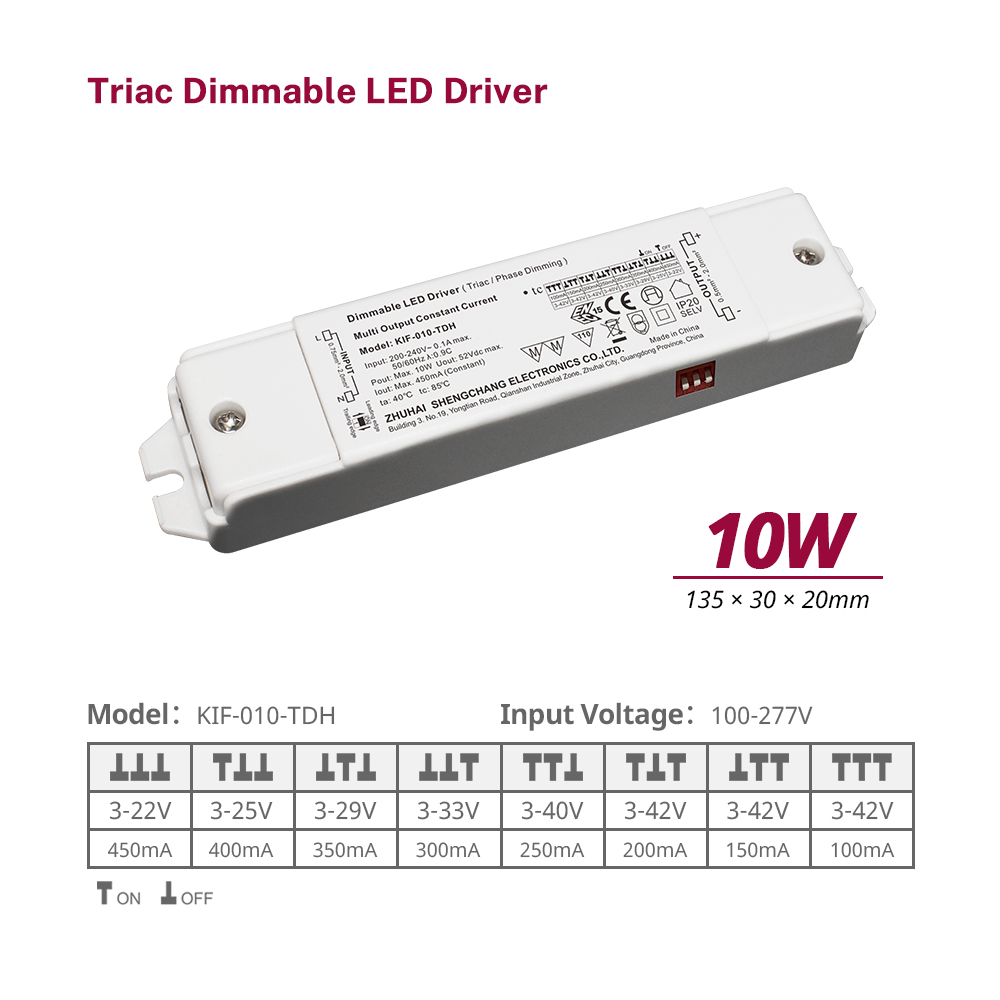

10W

KIF-010-TDH

3-42V 100mA

135*30*20mm

0.10Kg

3-42V 150mA

3-42V 200mA

3-40V 250mA

3-33V 300mA

3-29V 350mA

3-25V 400mA

3-22V 450mA

20W

KIF-020-TDH

3-42V 250mA

159.5*43*20mm

0.15Kg

3-42V 350mA

3-42V 400mA

3-42V 450mA

3-40V 500mA

3-36V 550mA

3-33V 600mA

3-29V 700mA

40W

KIF-040-TDH

3-50V 300mA

171.5*54*20mm

0.17Kg

3-50V 350mA

3-50V 400mA

3-50V 450mA

3-50V 500mA

3-50V 550mA

3-50V 600mA

3-50V 650mA

3-50V 700mA

3-50V 800mA

3-45V 900mA

3-40V 1000mA

3-37V 1100mA

3-34V 1200mA

3-31V 1300mA

3-29V 1400mA

60W

KIF-060-TDH

3-50V 600mA

192.5*62*24mm

0.30Kg

3-50V 700mA

3-50V 800mA

3-50V 900mA

3-50V 1000mA

3-50V 1100mA

3-50V 1200mA

3-46V 1300mA

3-43V 1400mA

3-40V 1500mA

3-38V 1600mA

3-35V 1700mA

3-33V 1800mA

3-32V 1900mA

3-30V 2000mA

3-29V 2100mA



Triac LED Power Supply Wiring Diagram

Triac LED Power Supply


Triac LED Driver Wiring Diagram (2)Triac LED Driver Wiring Diagram (1)


Triac LED Power Supply Size:

Triac & 0-10V LED Power Supply Size
