| Ouput Power: | |
|---|---|
Triac
Isolated
Constant Voltage
1CH (Dimming)
IP66, Dry & Damp, Wet
200-240VAC
30W, 40W, 60W
3V-42V
CE, RoHS, REACH

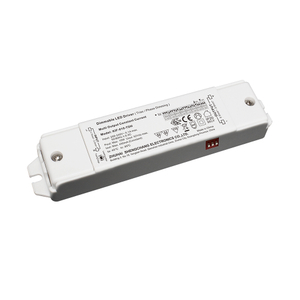

30 40 60 Watt Constant Current Triac Dimming LED Lights LED Power Supply
Output: | Constant Current |
NFC function: | Adjust output current by NFC |
Range: | 200-240VAC |
PFC design: | Built-in active PFC function |
Protections: | Short circuit / over load / over temperature |
Heat dissipation: | Cooling by free air convection |
Waterproof performance: | IP66 (EU) |
Dimming function: | Triac/phase cut-dimming (leading edge for default; trailing edge for customize). |
Dimming range: | 1-100% |
Application: | Suitable for the application of indoor and outdoor LED lighting |
Warranty: | 5 years warranty |
Output Power | Model Number | Output Voltage | Output Current | Size |
30W | KIF-030-TDHL | 3-42V | 300-1050mA | 314.7*38.5*23.6mm |
40W | KIF-040-TDHL | 3-42V | 400-1400mA | 314.7*38.5*23.6mm |
60W | KIF-060-TDHL | 3-42V | 500-2100mA | 332*38.5*23.6mm |
Triac LED Power Supply
30 40 60 Watt Constant Current Triac Dimming LED Lights LED Power Supply
Output: | Constant Current |
NFC function: | Adjust output current by NFC |
Range: | 200-240VAC |
PFC design: | Built-in active PFC function |
Protections: | Short circuit / over load / over temperature |
Heat dissipation: | Cooling by free air convection |
Waterproof performance: | IP66 (EU) |
Dimming function: | Triac/phase cut-dimming (leading edge for default; trailing edge for customize). |
Dimming range: | 1-100% |
Application: | Suitable for the application of indoor and outdoor LED lighting |
Warranty: | 5 years warranty |
Output Power | Model Number | Output Voltage | Output Current | Size |
30W | KIF-030-TDHL | 3-42V | 300-1050mA | 314.7*38.5*23.6mm |
40W | KIF-040-TDHL | 3-42V | 400-1400mA | 314.7*38.5*23.6mm |
60W | KIF-060-TDHL | 3-42V | 500-2100mA | 332*38.5*23.6mm |
Triac LED Power Supply
