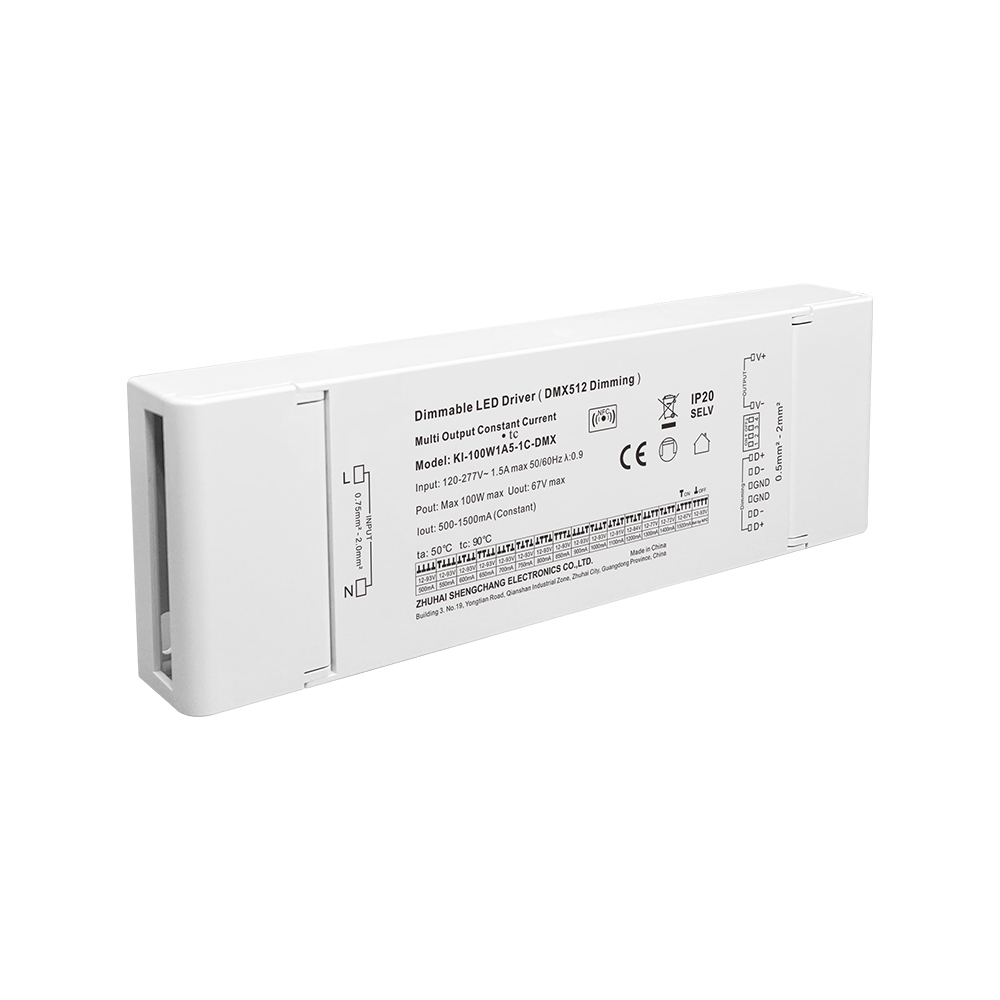

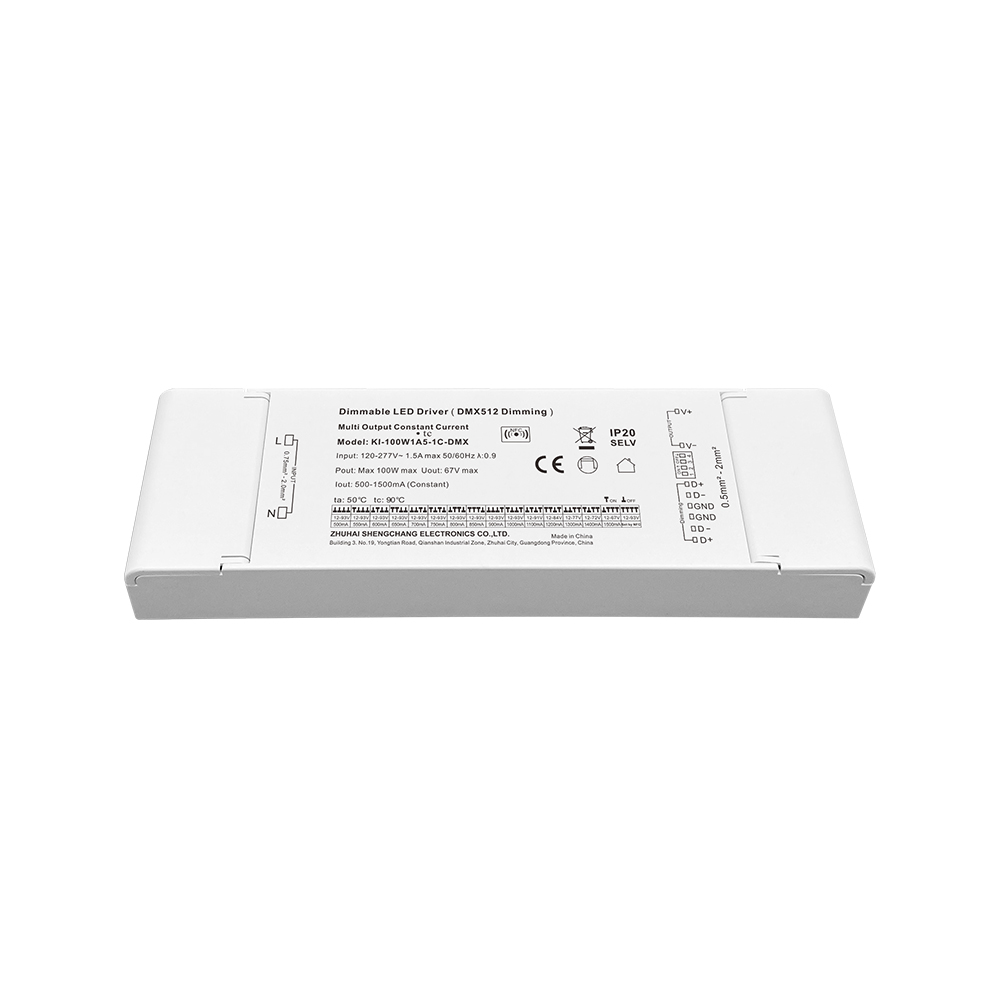

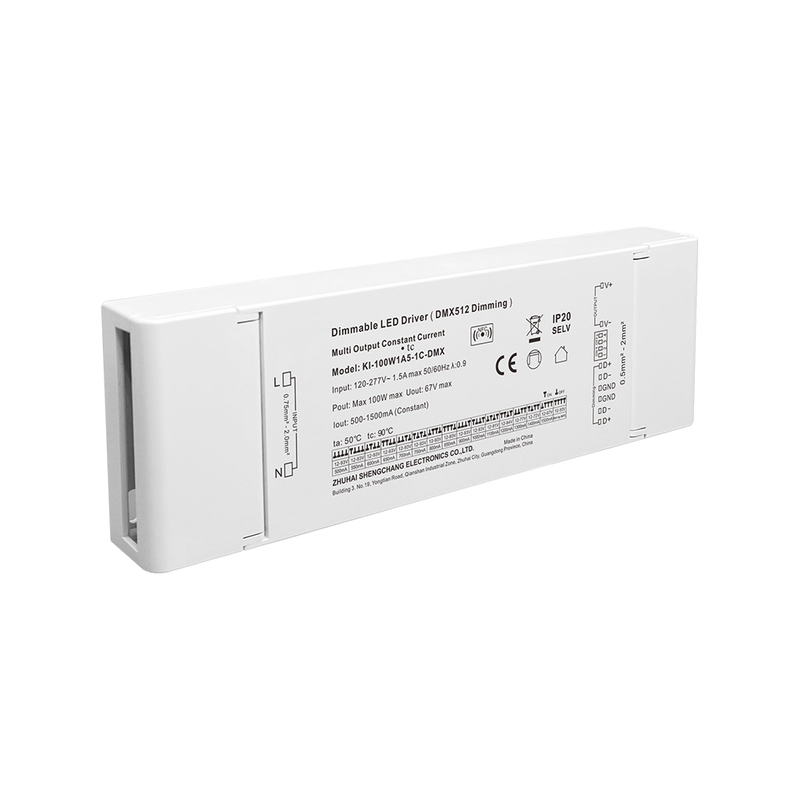

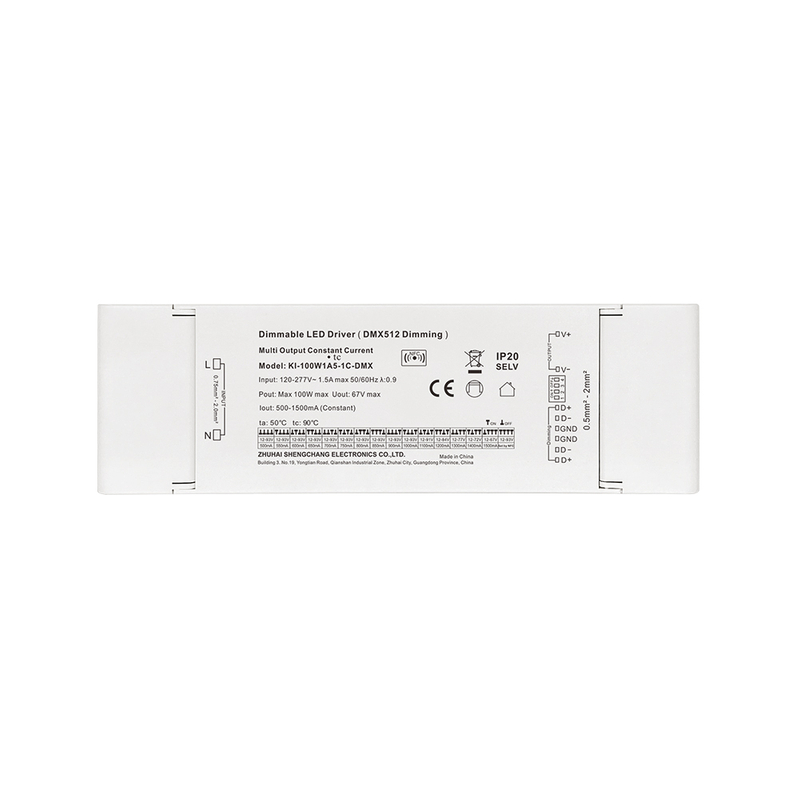

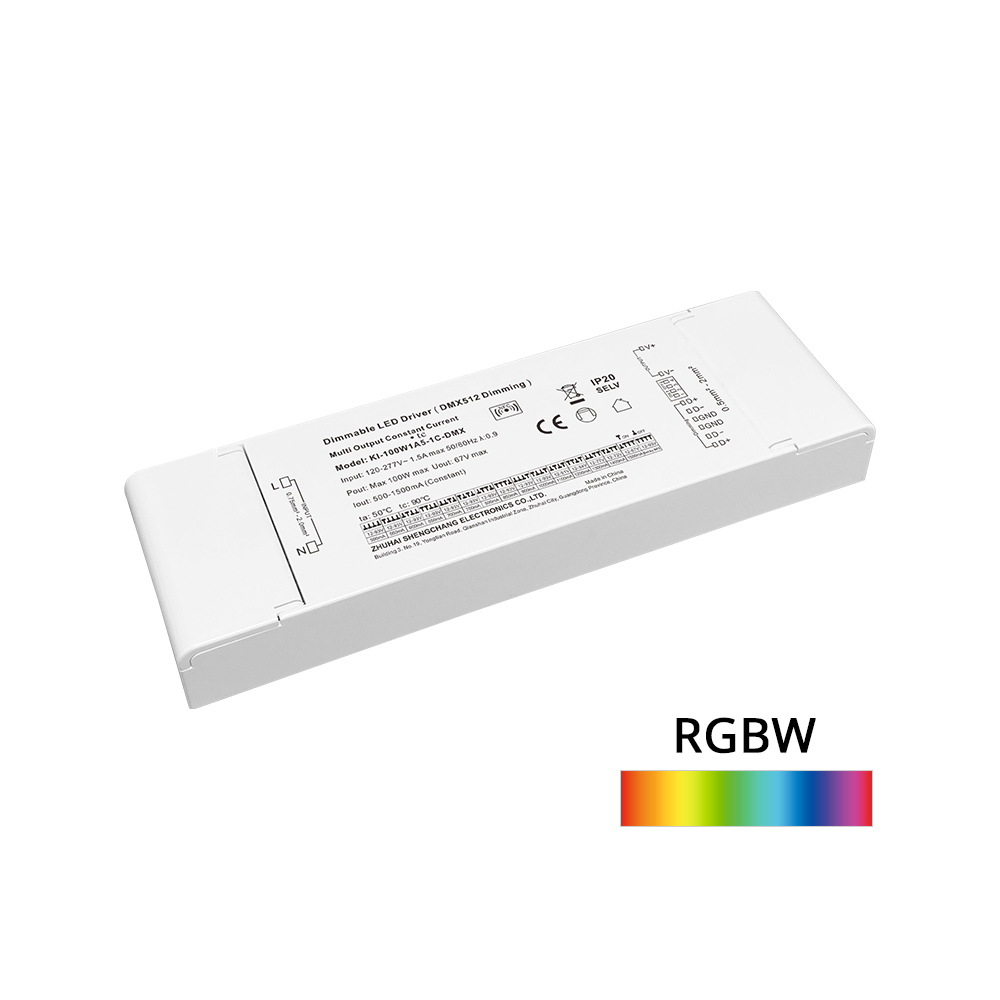

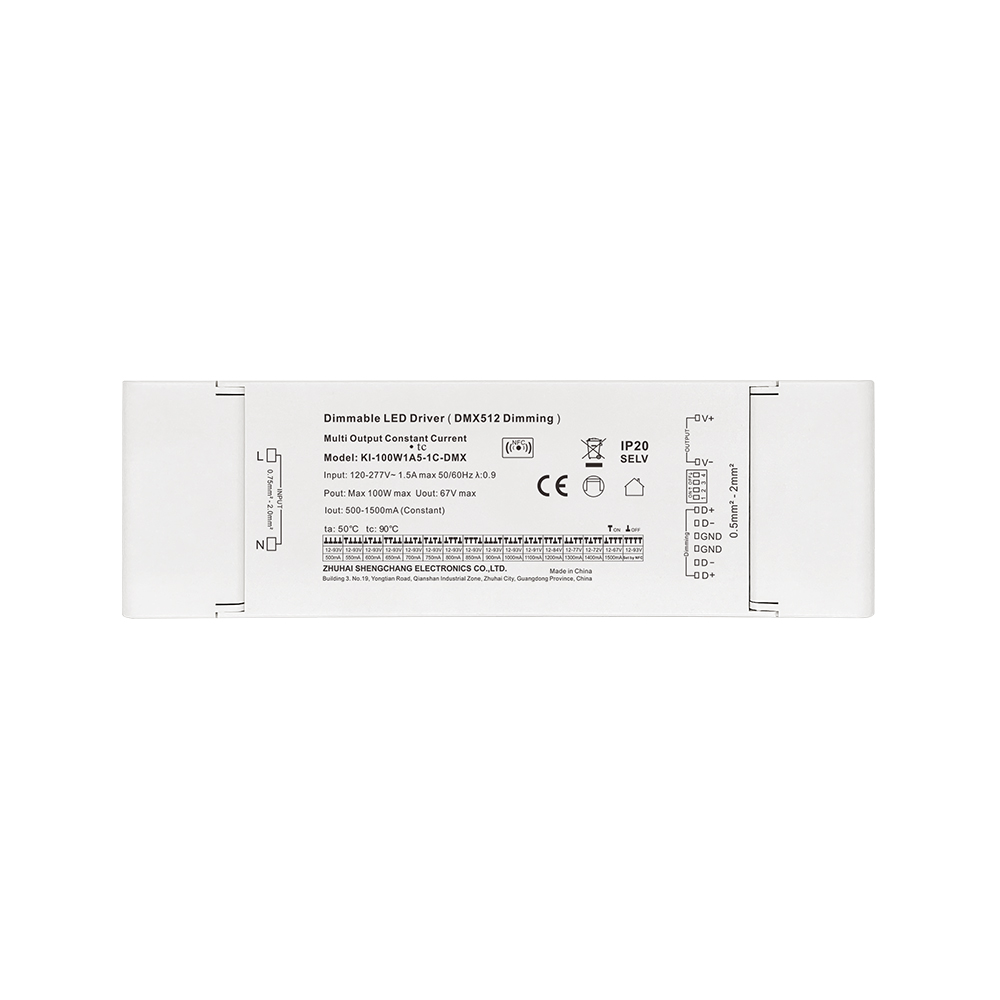

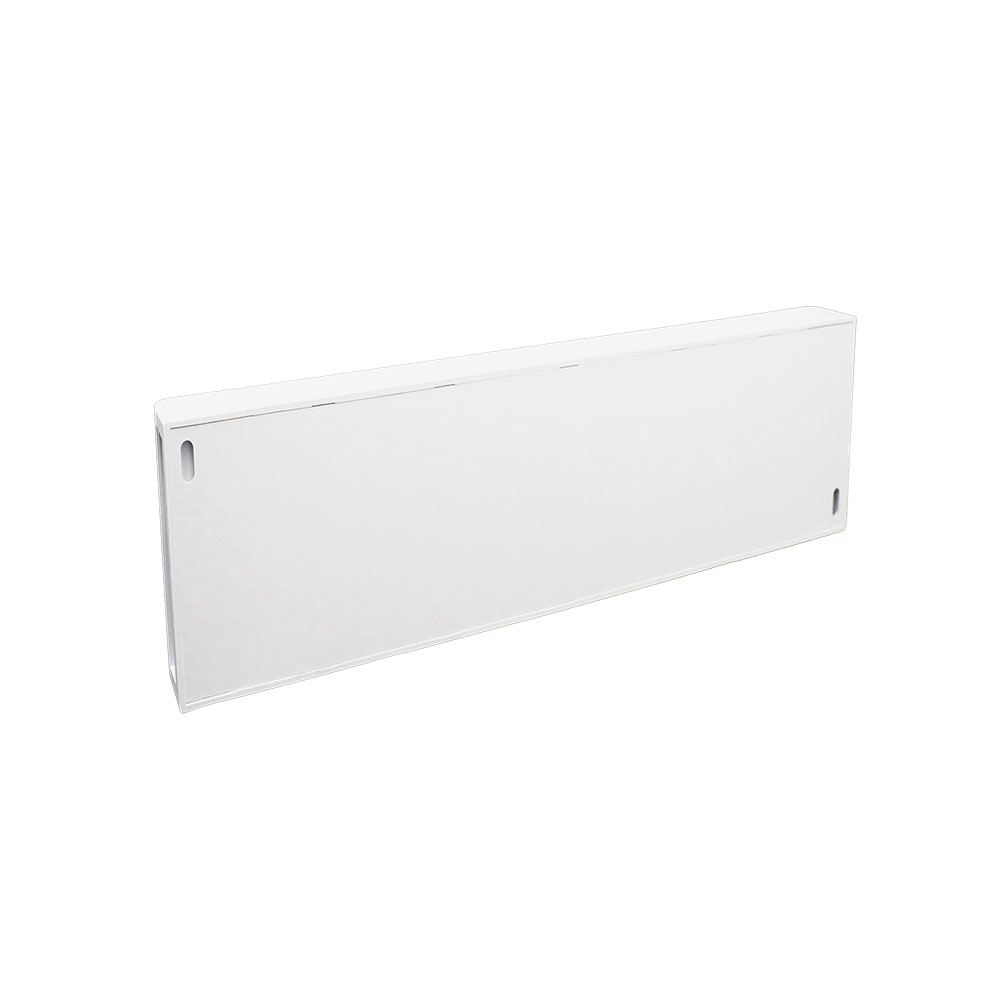

100W 500mA-2500mA 12V-93V DC Constant Current Dimmable 3 4 Channel RDM DMX RGB RGBW LED Driver

Model:
100W
Availability:
Inquire Add to Basket

  • DMX512

  • Isolated

  • Constant Current

  • 1CH (Dimming), 2CH (CCT), 1-5CH (RGBCW)

  • IP20, Dry & Damp

  • 100-277VAC

  • 100W

  • 3V-42V

  • RoHS, REACH

Advantage

100W 500mA-2500mA 12V-93V DC Constant Current Dimmable 3 4 Channel RDM DMX RGB RGBW LED Driver

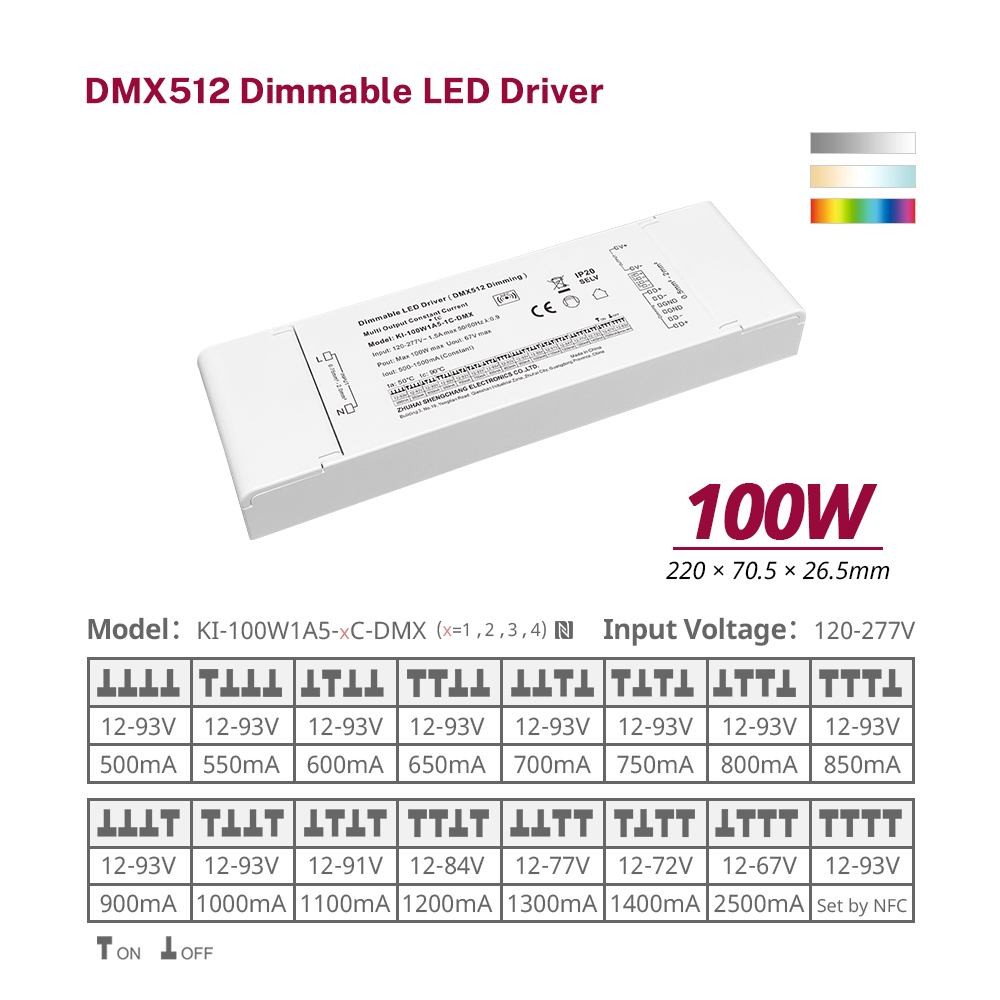

Specification


Output Power

Model Number

Output

Size

Weight

Channel

100W

KI-100WU1A5-1C-DMX

12-70V 500mA

220*70.5*26.5mm

0.465KG

1 Channel

12-70V 550mA

12-70V 600mA

12-70V 650mA

12-70V 700mA

12-70V 750mA

12-70V 800mA

12-70V 850mA

12-70V 900mA

12-70V 1000mA

12-70V 1100mA

12-70V 1200mA

12-70V 1300mA

12-70V 1400mA

12-67V 1500mA

12-70V Set by NFC

100W

KI-100WU1A5-2C-DMX

12-70V 500mA

220*70.5*26.5mm

0.485KG

2 Channels

12-70V 550mA

12-70V 600mA

12-70V 650mA

12-70V 700mA

12-70V 750mA

12-70V 800mA

12-70V 850mA

12-70V 900mA

12-70V 1000mA

12-70V 1100mA

12-70V 1200mA

12-70V 1300mA

12-70V 1400mA

12-67V 1500mA

12-70V Set by NFC

100W

KI-100WU1A5-3C-DMX

12-70V 500mA

220*70.5*26.5mm

0.465KG

3 Channels

12-70V 550mA

12-70V 600mA

12-70V 650mA

12-70V 700mA

12-70V 750mA

12-70V 800mA

12-70V 850mA

12-70V 900mA

12-70V 1000mA

12-70V 1100mA

12-70V 1200mA

12-70V 1300mA

12-70V 1400mA

12-67V 1500mA

12-70V Set by NFC

100W

KI-100WU1A5-4C-DMX

12-70V 500mA

220*70.5*26.5mm

0.485KG

4 Channels

12-70V 550mA

12-70V 600mA

12-70V 650mA

12-70V 700mA

12-70V 750mA

12-70V 800mA

12-70V 850mA

12-70V 900mA

12-70V 1000mA

12-70V 1100mA

12-70V 1200mA

12-70V 1300mA

12-70V 1400mA

12-67V 1500mA

12-70V Set by NFC



DMX LED Power Supply Wiring Diagram

DMX LED Power Supply




100W DMX LED Power Supply Size:

DALI-2 LED Power Supply Size
