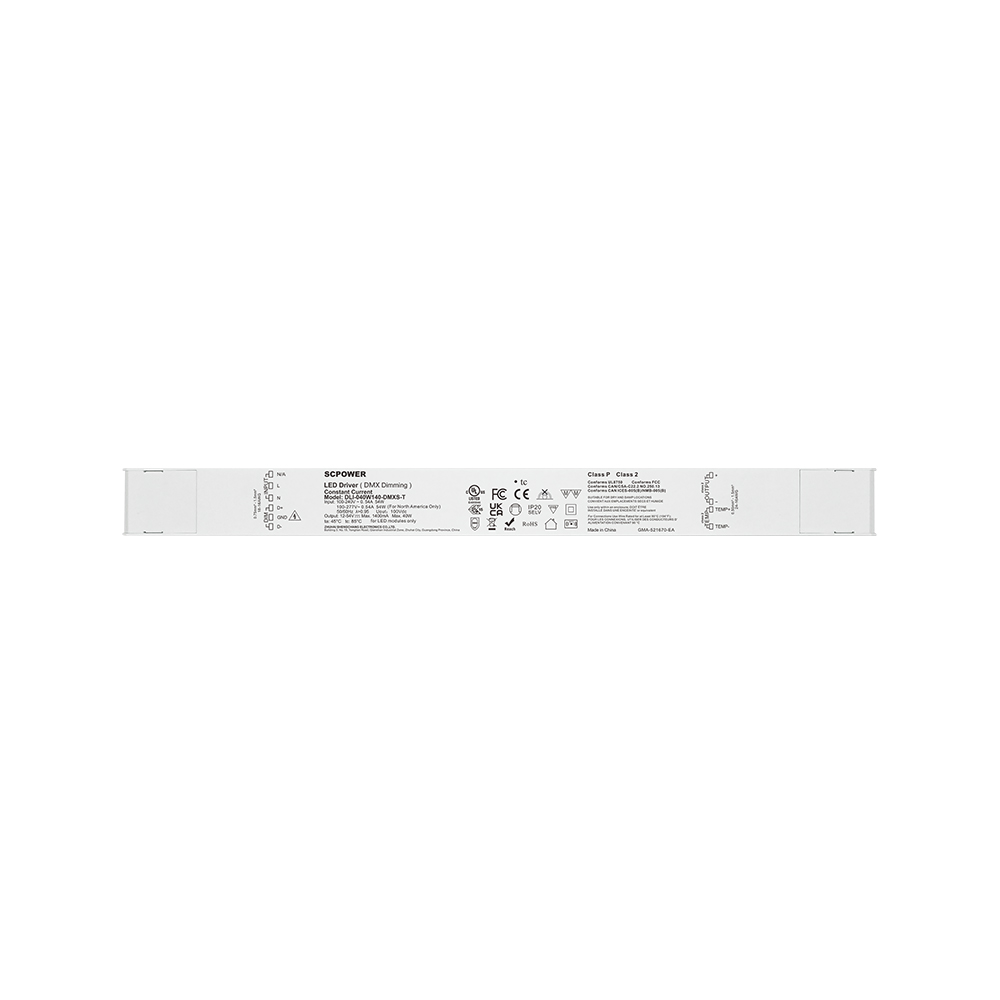

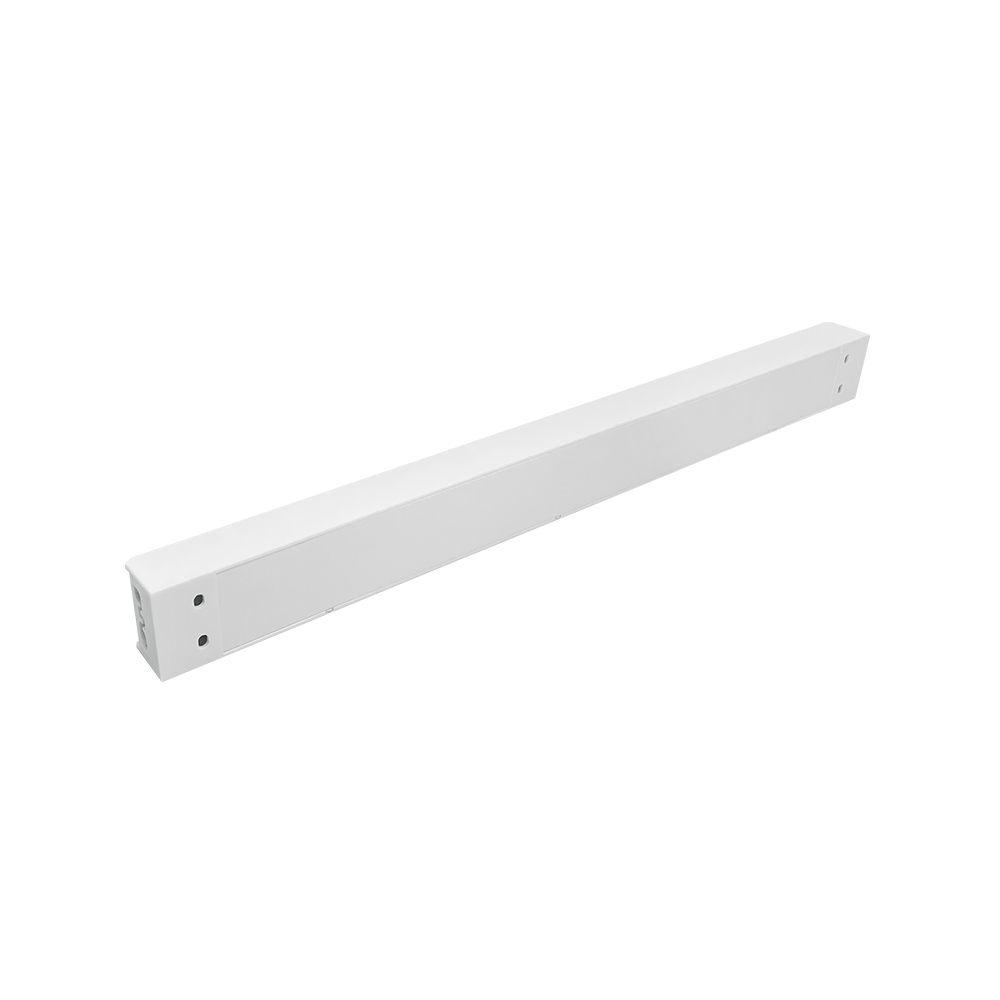

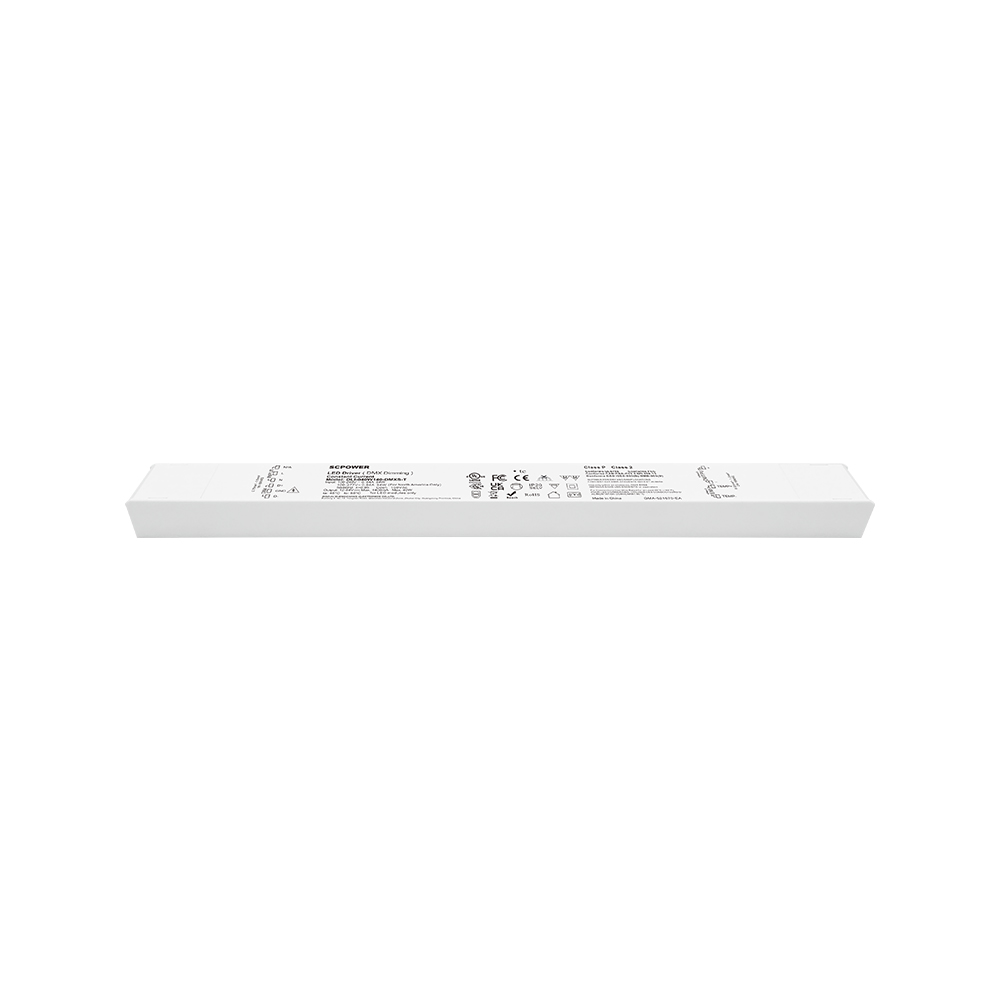

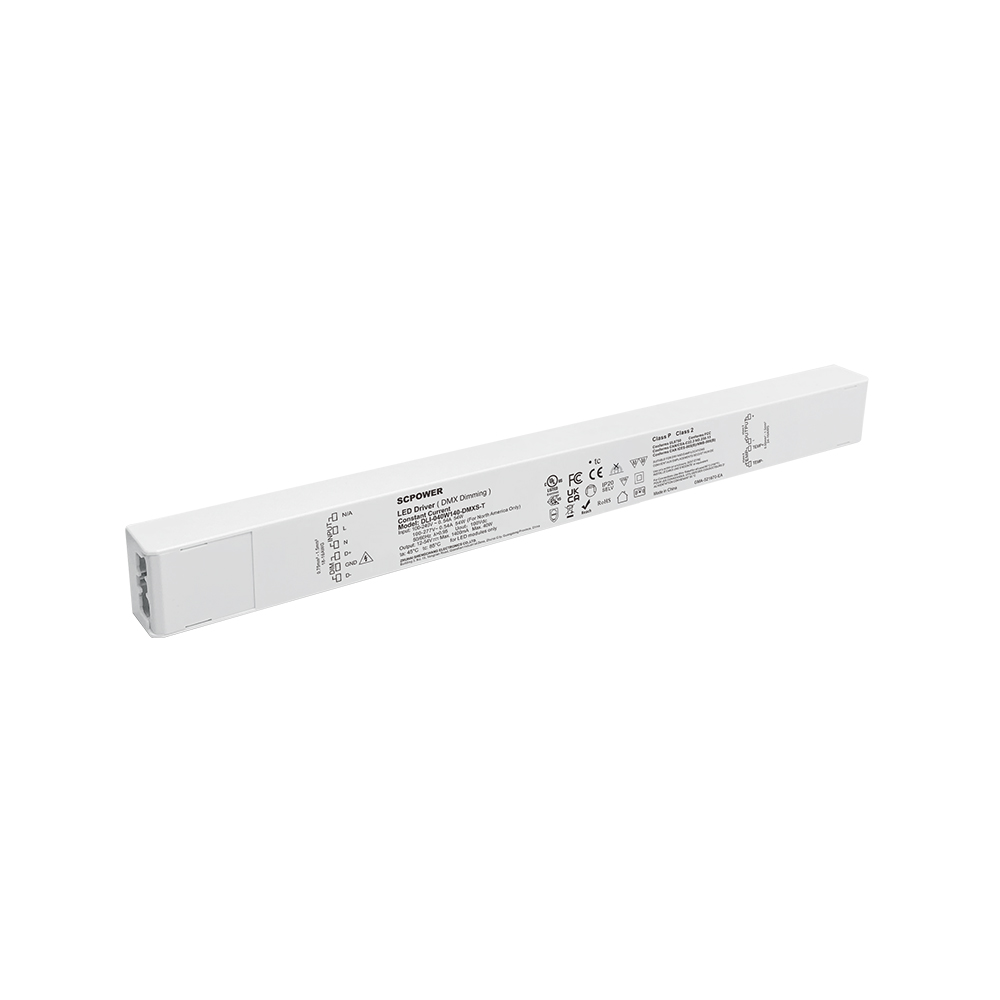

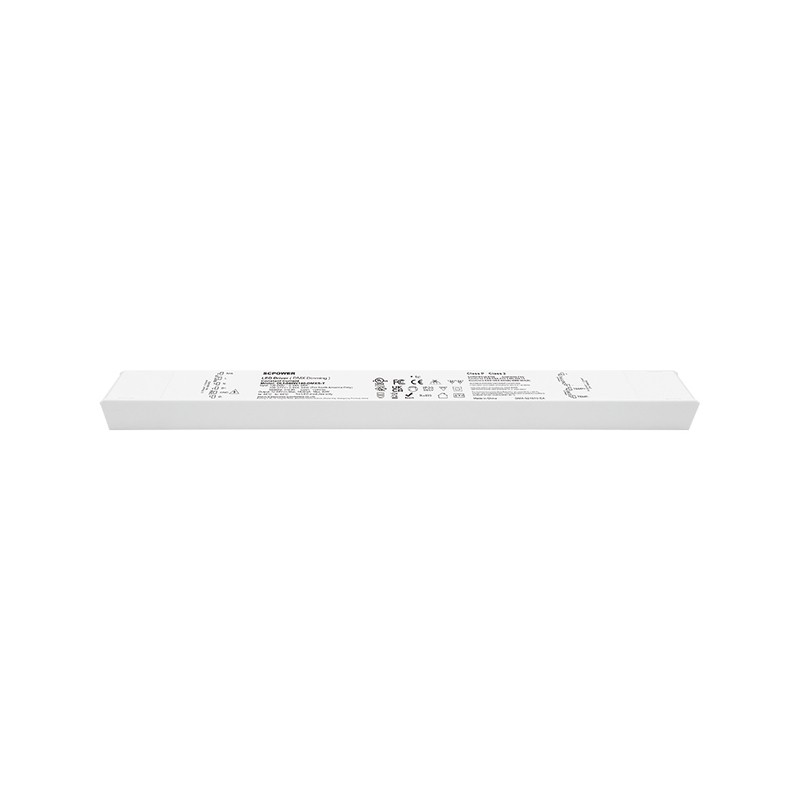

20 40 60 100 watt Constant Current DMX 512 LED Driver Linear Plastic Online

Ouput Power:
20W
40W
60W
100W
Availability:
Inquire Add to Basket

  • DMX512

  • Isolated

  • Constant Current

  • Dimming

  • IP20, Dry & Damp

  • 100-277VAC

  • 20W, 40W, 60W, 100W

  • 3V-42V

  • CE, RoHS

Advantage

20 40 60 100 watt Constant Current DMX 512 LED Driver Linear Plastic Online




Specification


Output Power

Model Number

Output

Size

Weight

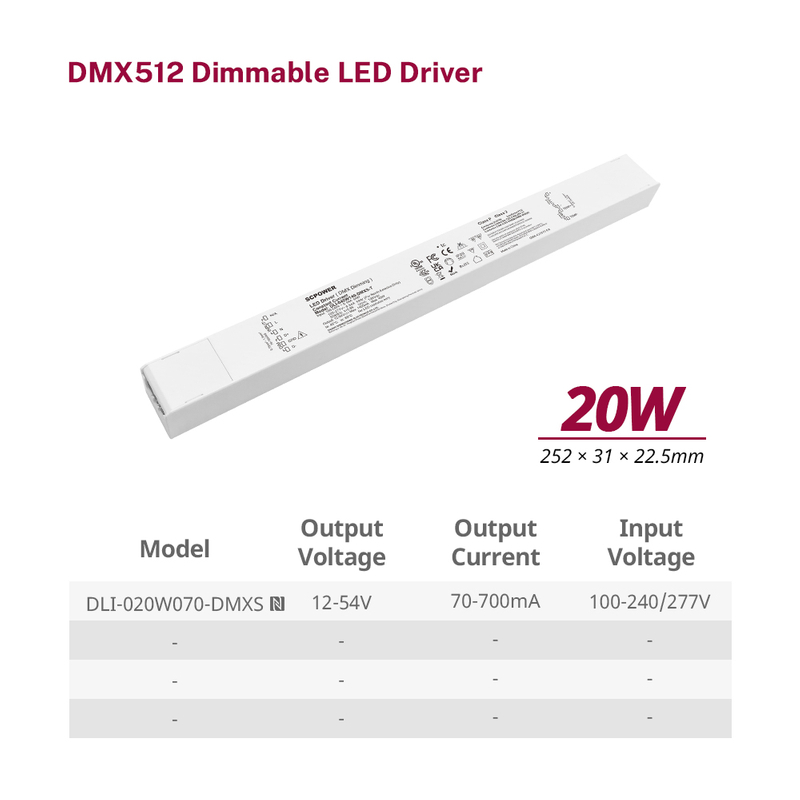

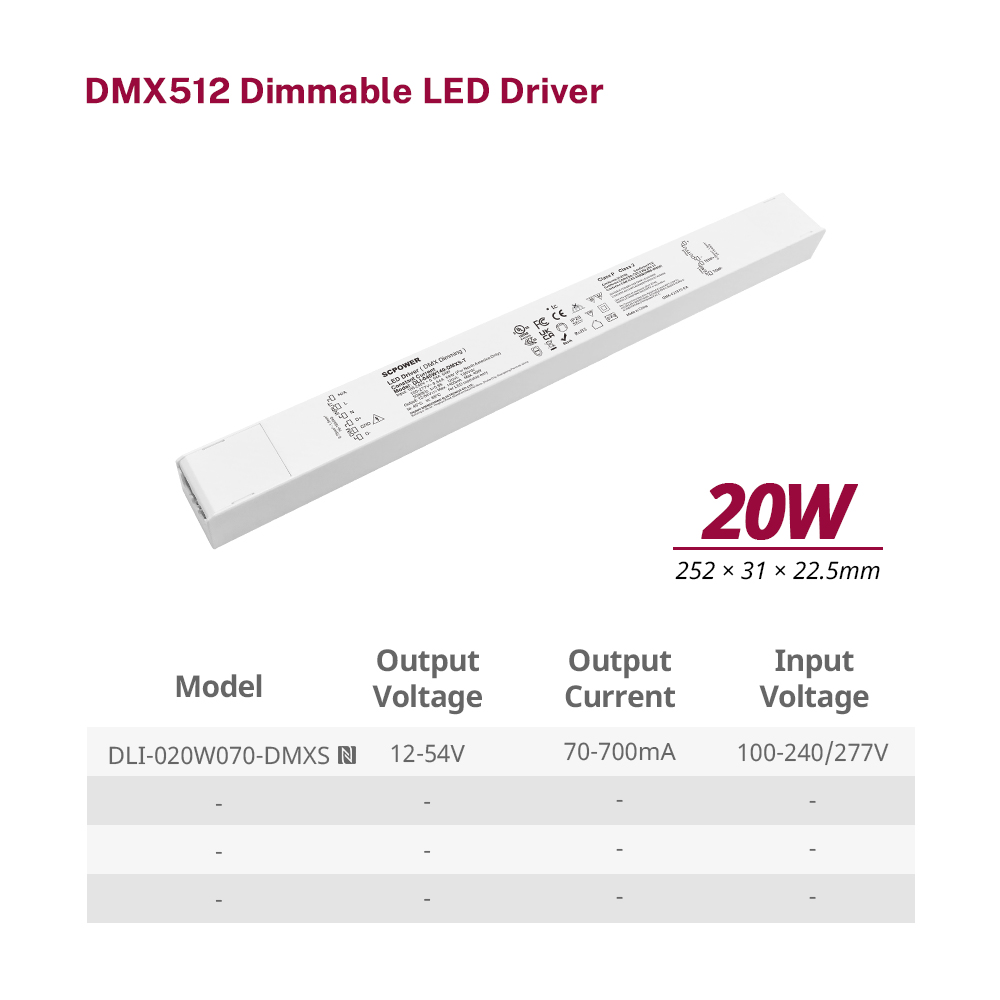

20W

DLI-020W070-DMXS

12-54V 70-700mA

252*31*22.5mm


40W

DLI-040W140-DMXS

12-54V 140-1400mA

324.7*34.8*24.1mm


DLI-040W070-DMXS

24-93V 70-700mA

60W

DLI-060W160-DMXS

12-54V 160-1600mA

324.7*34.8*24.1mm


DLI-060W120-DMXS

24-93V 120-1200mA

100W

DLI-100W210-DMXS

12-54V 210-2100mA

375.8*34.8*24.1mm


DLI-100W160-DMXS

24-93V 160-1600mA
