Triac
Isolated
Constant Current
1CH (Dimming)
IP20, Dry & Damp
100-277VAC
10W, 20W, 40W, 60W
3V-42V
UL & cUL, FCC, Class 2, CE, RoHS

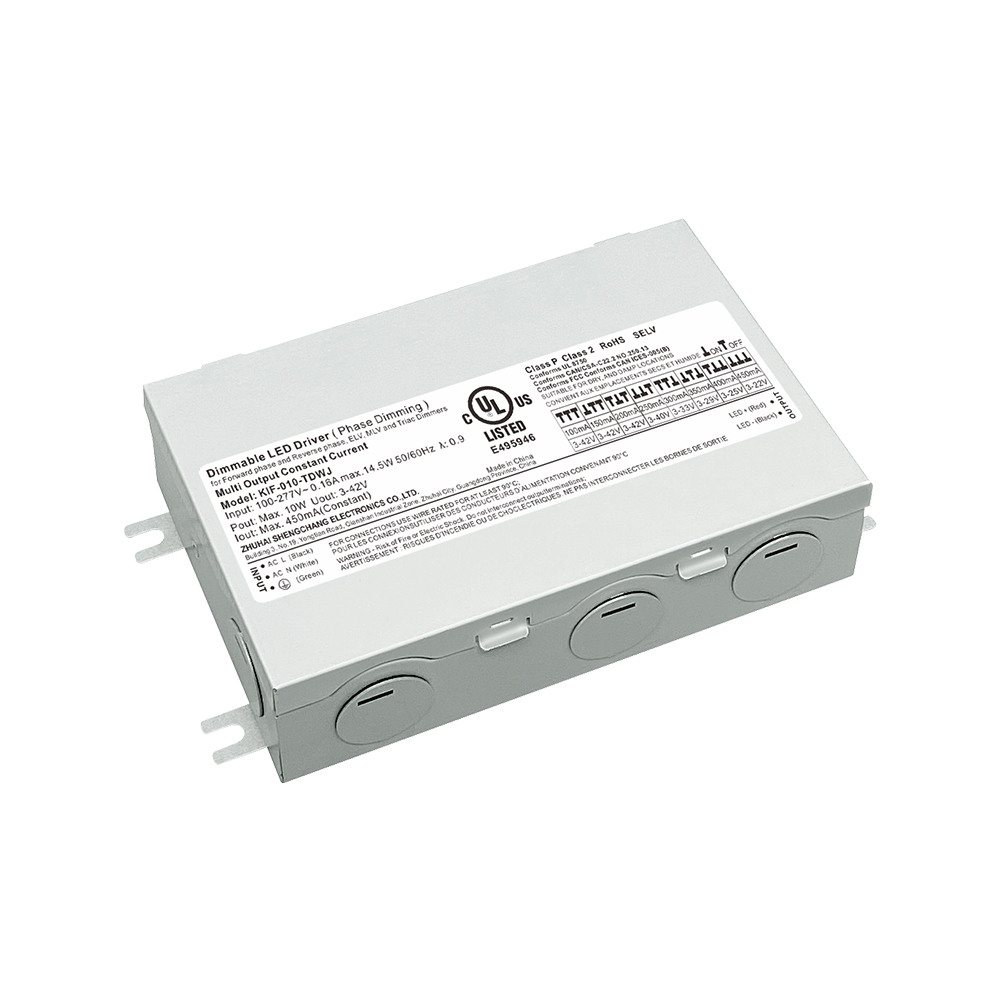

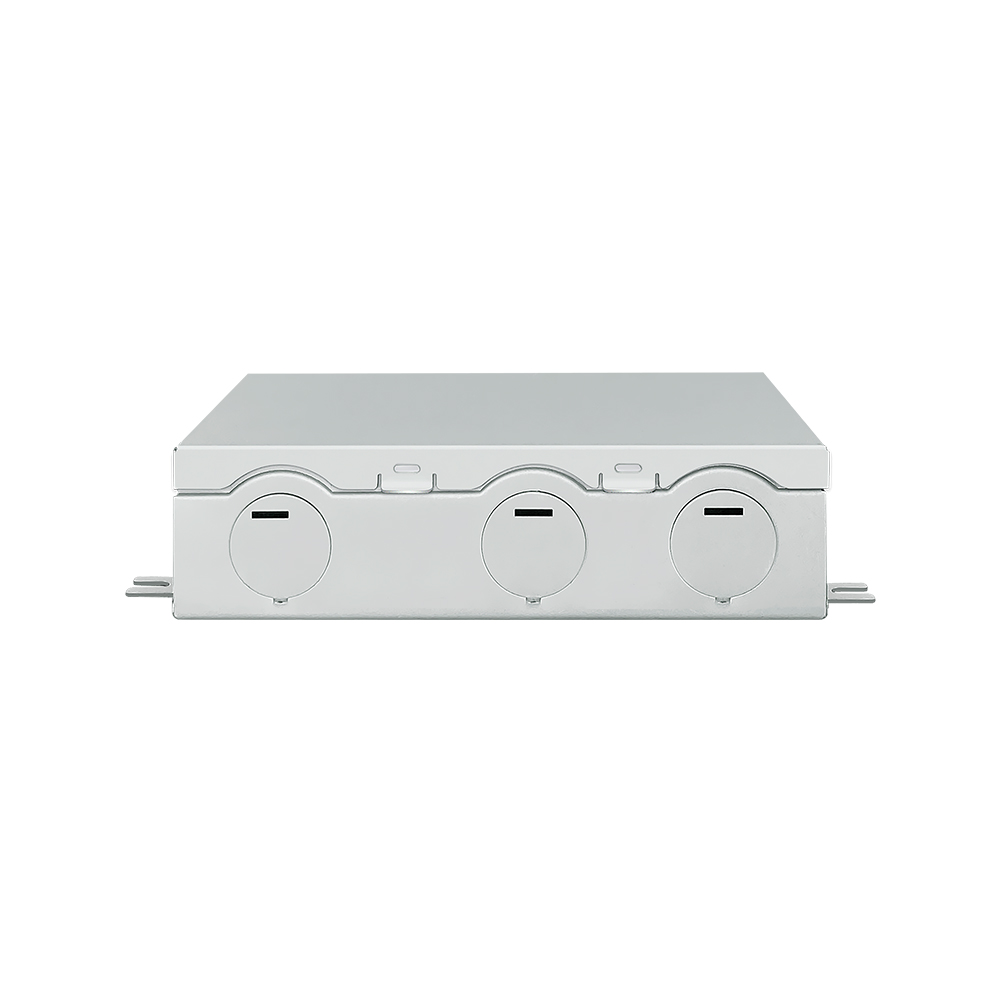

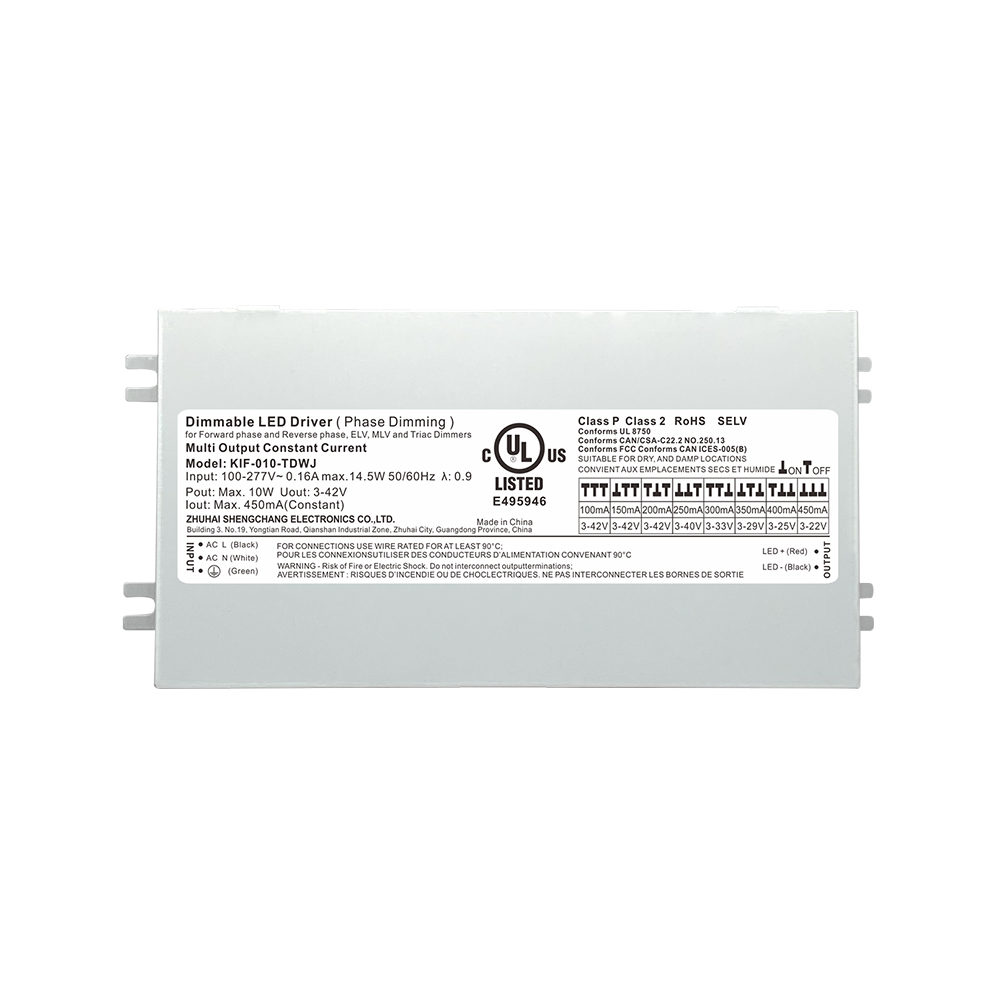

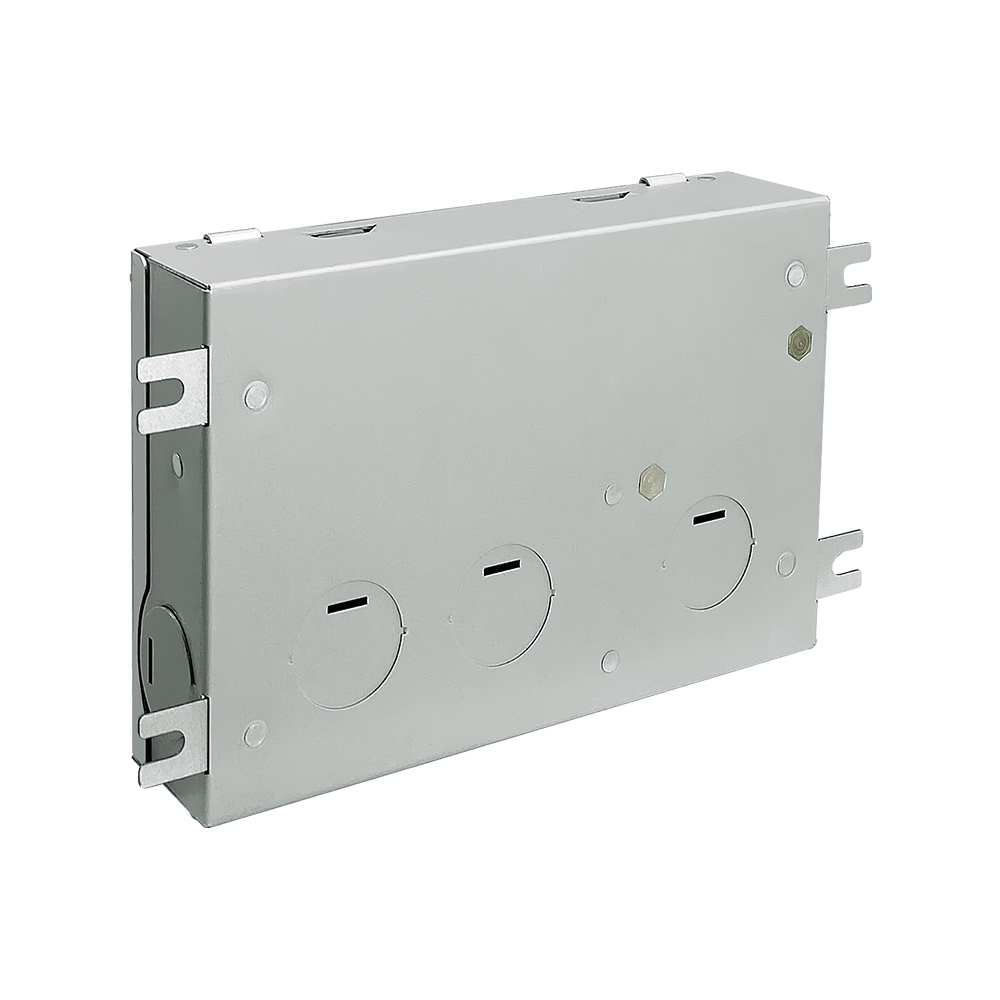

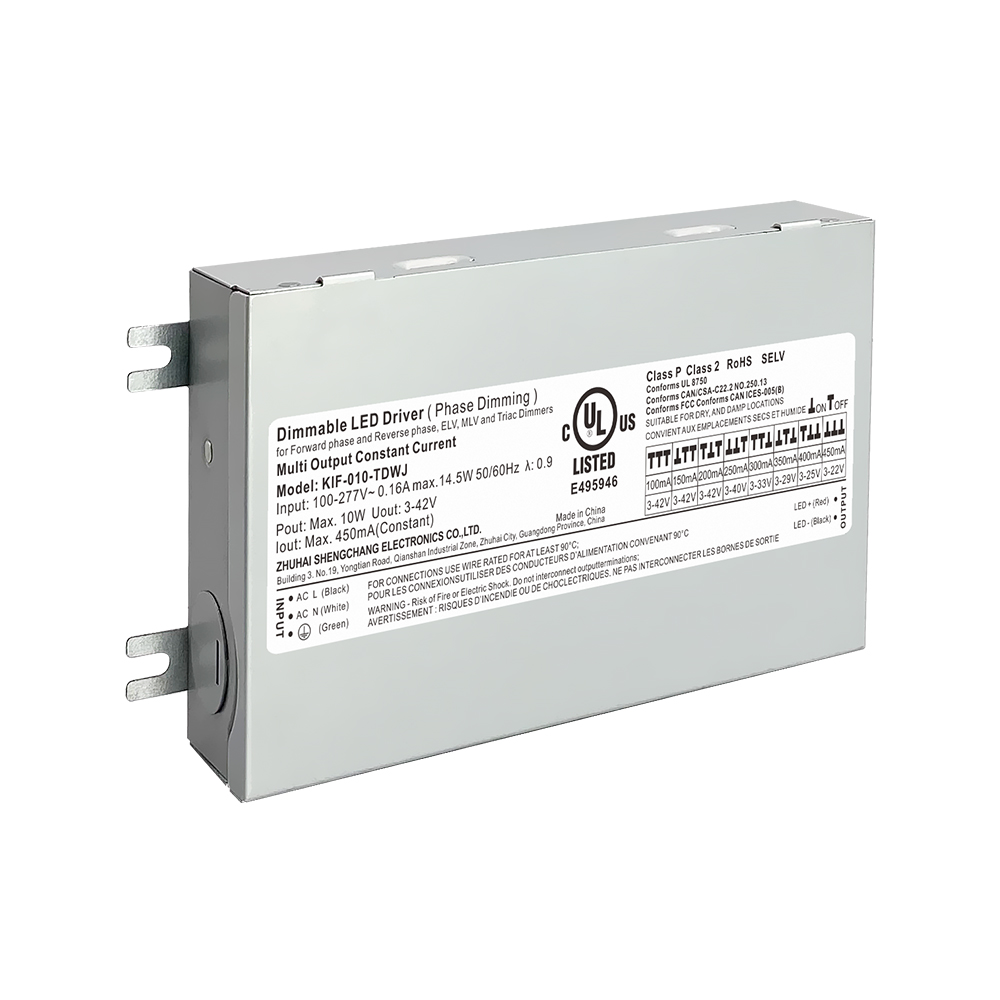

10W 20W 40W 60W CC Triac Dimming LED Power Supply with Junction box
Output: | Constant Current |
Range: | 100~277VAC |
PFC design: | Built-in active PFC function |
Protections: | Short circuit/ over load/ over temperature |
Heat dissipation: | Cooling by free air convection |
Waterproof performance: | Full protection plastic housing, for dry and damp locations |
Dimming function: | Triac/phase cut dimming: Work with leading or trailing edge Triac dimmer |
Dimming range: | 1-100% |
Application: | Suitable for the application of indoor LED lighting |
Warranty: | 5 years warranty |
Output Power | Model Number | Output | Power Factor | Size |

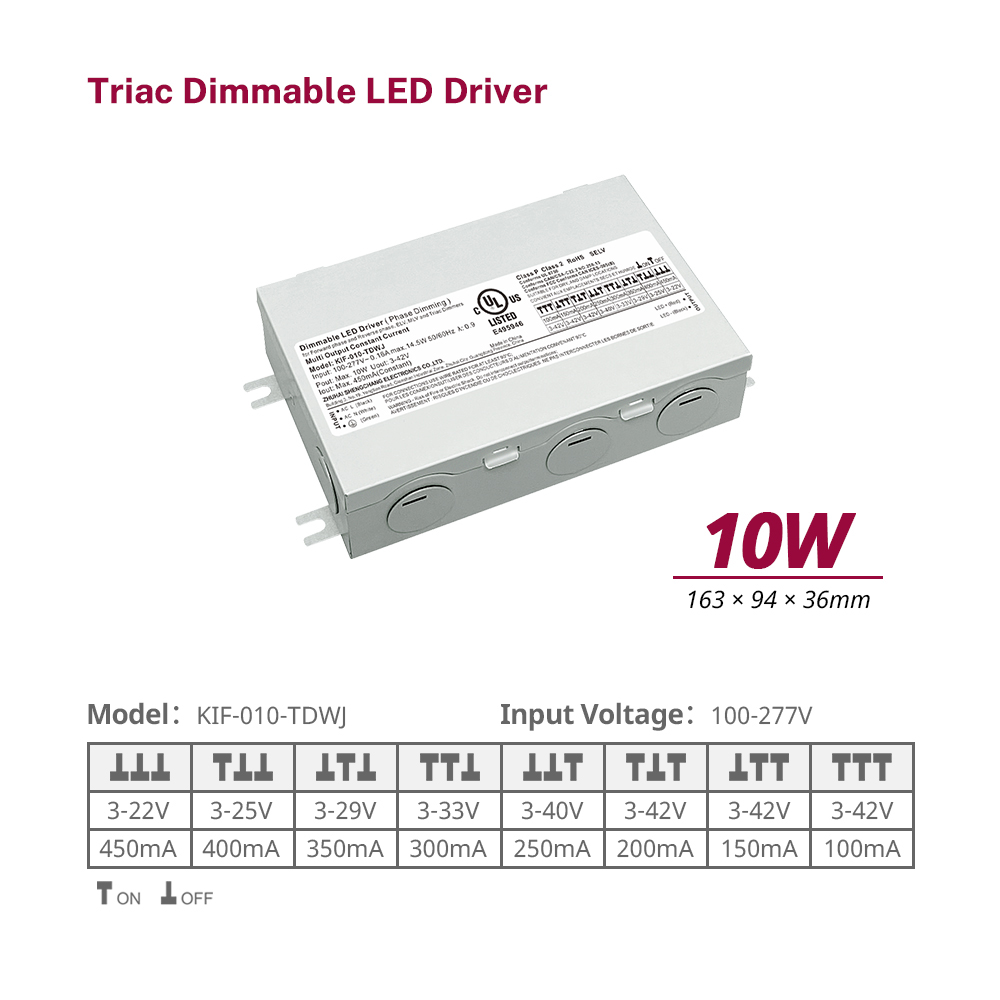

10W | KIF-010-TDWJ | 3-42V 100mA | 0.98 | 163*94*36mm |
3-42V 150mA | ||||
3-42V 200mA | ||||
3-40V 250mA | ||||
3-33V 300mA | ||||
3-29V 350mA | ||||
3-25V 400mA | ||||
3-22V 450mA | ||||
20W | KIF-020-TDWJ | 3-42V 250mA | 0.95 | 163*94*36mm |
3-42V 350mA | ||||
3-42V 400mA | ||||
3-42V 450mA | ||||
3-40V 500mA | ||||
3-36V 550mA | ||||
3-33V 600mA | ||||
3-29V 700mA | ||||
40W | KIF-040-TDWJ | 3-50V 300mA | 0.95 | 190*104*36mm |
3-50V 350mA | ||||
3-50V 400mA | ||||
3-50V 450mA | ||||
3-50V 500mA | ||||
3-50V 550mA | ||||
3-50V 600mA | ||||
3-50V 650mA | ||||
3-50V 700mA | ||||
3-50V 800mA | ||||
3-45V 900mA | ||||
3-40V 1000mA | ||||
3-37V 1100mA | ||||
3-34V 1200mA | ||||
3-31V 1300mA | ||||
3-29V 1400mA | ||||
60W | KIF-060-TDWJ | 3-50V 600mA | 0.99 | 192.5*62*24mm |
3-50V 700mA | ||||
3-50V 800mA | ||||
3-50V 900mA | ||||
3-50V 1000mA | ||||
3-50V 1100mA | ||||
3-50V 1200mA | ||||
3-46V 1300mA | ||||
3-43V 1400mA | ||||
3-40V 1500mA | ||||
3-38V 1600mA | ||||
3-35V 1700mA | ||||
3-33V 1800mA | ||||
3-32V 1900mA | ||||
3-30V 2000mA | ||||
3-29V 2100mA |
