| Ouput Power: | |
|---|---|
Triac
Isolated
Constant Current
1CH (Dimming)
IP66, Dry & Damp, Wet
100-277VAC
30W, 40W, 60W
3V-42V
UL & cUL

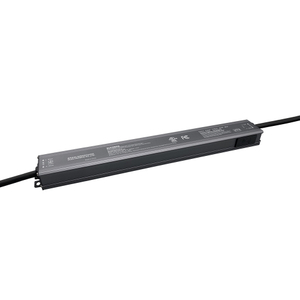

30W 40W 60W CC Triac Dimming LED Lights LED Power Supply 100v 110v 120v 277v ac input
Output: | Constant Current |
NFC function: | Adjust output current by NFC,PF≥0.9 Switch between dim for single color and Dim to warm for CCT light by NFC |
Range: | 100-277VAC |
PFC design: | Built-in active PFC function |
Protections: | Short circuit/ over load/ over temperature |
Heat dissipation: | Cooling by free air convection |
Waterproof performance: | IP60 for indoor or outdoor; Full protection aluminum housing, for dry ,damp&wet locations |
Dimming function: | Triac/phase cut-dimming. |
Dimming range: | 1-100% |
Application: | Suitable for the application of indoor LED lighting |
Warranty: | 5 years warranty |
Output Power | Model Number | Output Voltage | Output Current | Size |
30W | KIF-030-TDWL | 3-42V | 300-1050mA | 314.7*38.5*23.6mm |
40W | KIF-040-TDWL | 3-42V | 400-1400mA | 314.7*38.5*23.6mm |
60W | KIF-060-TDWL | 3-42V | 500-2100mA | 332*38.5*23.6mm |
30W 40W 60W CC Triac Dimming LED Lights LED Power Supply 100v 110v 120v 277v ac input
Output: | Constant Current |
NFC function: | Adjust output current by NFC,PF≥0.9 Switch between dim for single color and Dim to warm for CCT light by NFC |
Range: | 100-277VAC |
PFC design: | Built-in active PFC function |
Protections: | Short circuit/ over load/ over temperature |
Heat dissipation: | Cooling by free air convection |
Waterproof performance: | IP60 for indoor or outdoor; Full protection aluminum housing, for dry ,damp&wet locations |
Dimming function: | Triac/phase cut-dimming. |
Dimming range: | 1-100% |
Application: | Suitable for the application of indoor LED lighting |
Warranty: | 5 years warranty |
Output Power | Model Number | Output Voltage | Output Current | Size |
30W | KIF-030-TDWL | 3-42V | 300-1050mA | 314.7*38.5*23.6mm |
40W | KIF-040-TDWL | 3-42V | 400-1400mA | 314.7*38.5*23.6mm |
60W | KIF-060-TDWL | 3-42V | 500-2100mA | 332*38.5*23.6mm |
