| Ouput Power: | |
|---|---|
Triac
Isolated
Constant Voltage
1CH (Dimming)
IP66, Dry & Damp, Wet
200-240VAC
150W, 200W
12/ 24/ 36/ 48V
CE, RoHS, REACH

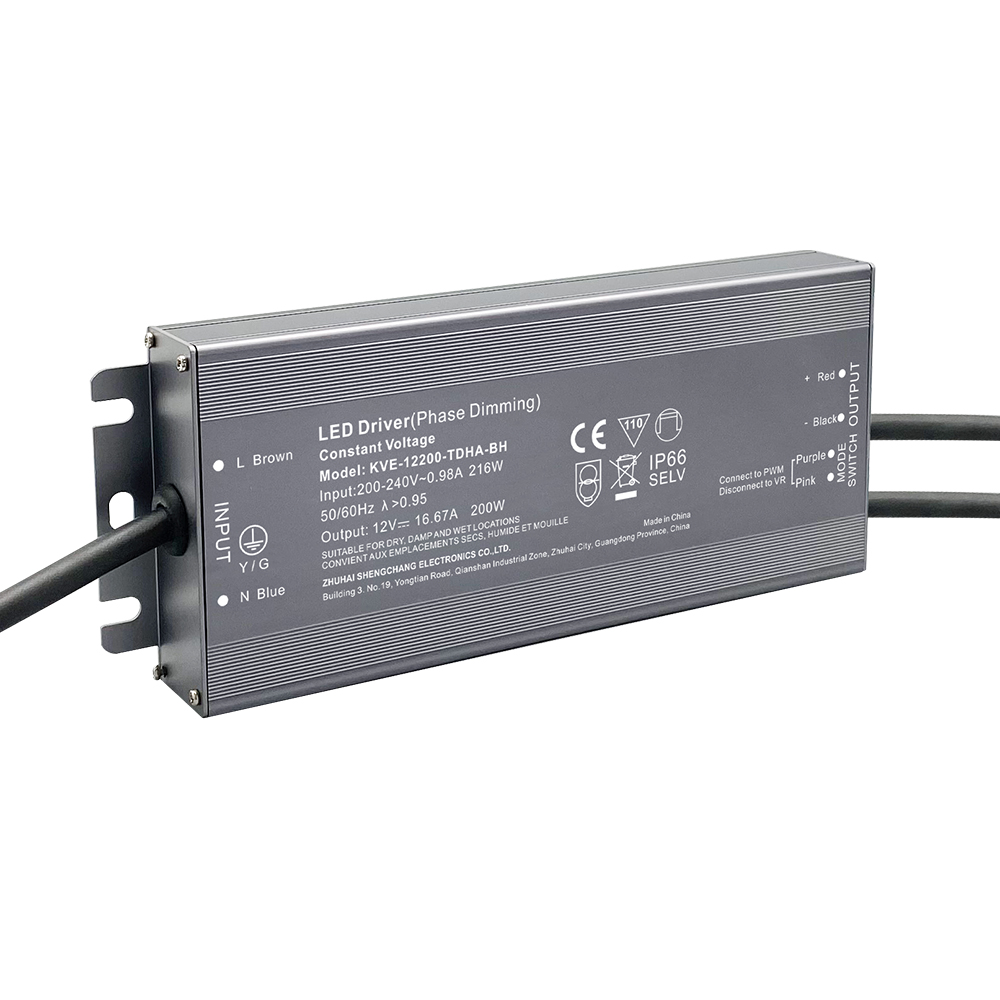

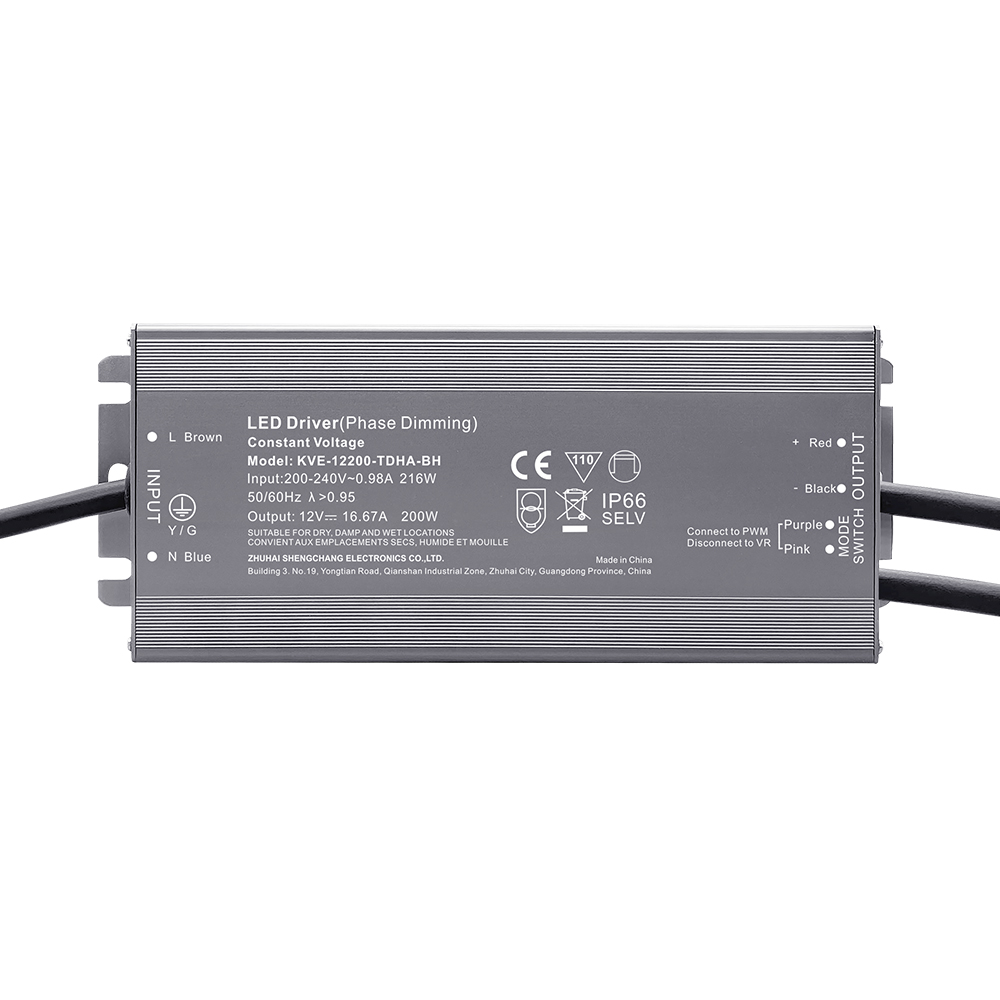

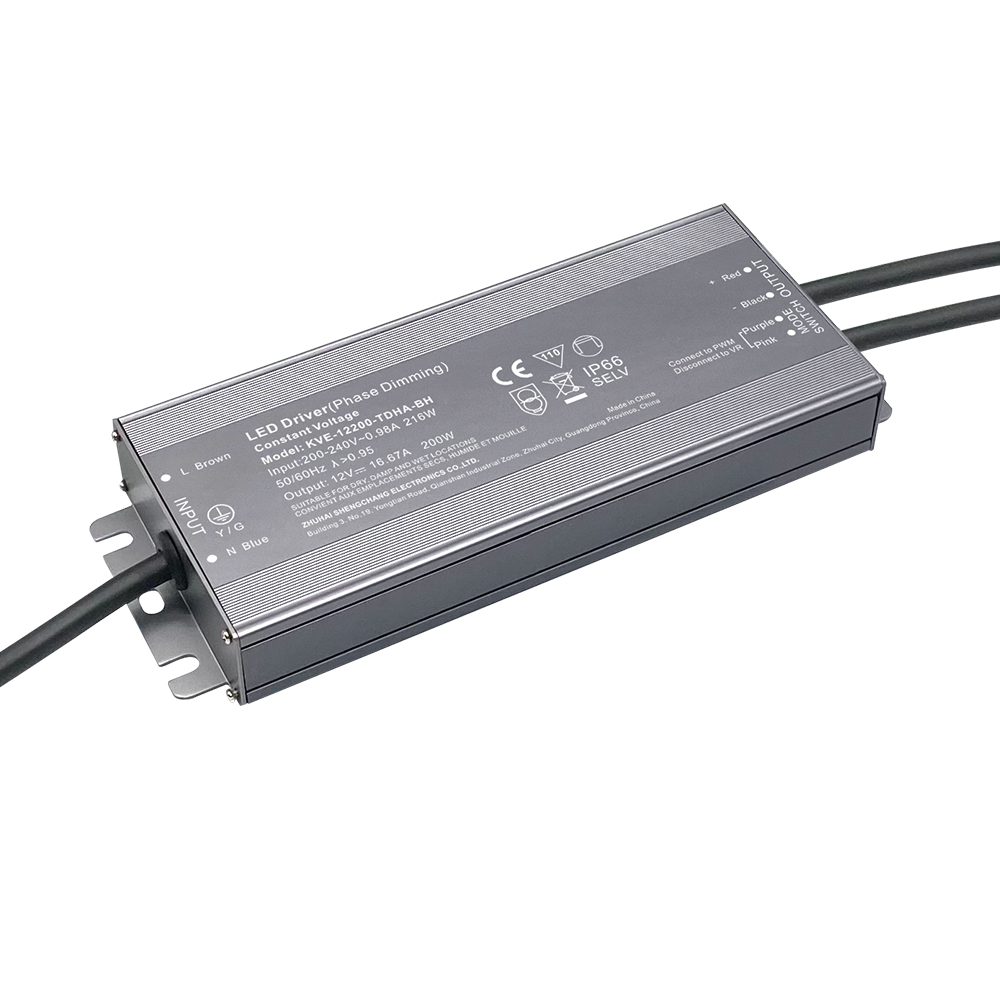

150 200 Watt CV Triac Dimmable LED Power Supplies Best
Output: | Constant Voltage |
Range: | 200-240VAC |
PFC design: | Built-in active PFC function,PF≥0.95 |
Efficiency: | Up to 90% |
Protections: | Short circuit/over temperature/over load |
Heat dissipation: | Cooling by free air convection |
Waterproof performance: | IP66 can be used indoor and outdoor (EU) |
Dimming function: | PWM & Voltage reduce (VR) mode can be switched Phase dimming: work with Forward phase, MLV and Reverse phase, ELV, TRIAC dimmers. |
Dimming range: | 0-100% |
Application: | Suitable for LED lighting and moving sign applications |
Warranty: | 5 years warranty |
Others | High efficiency, smaller size, high power factor, low THD |

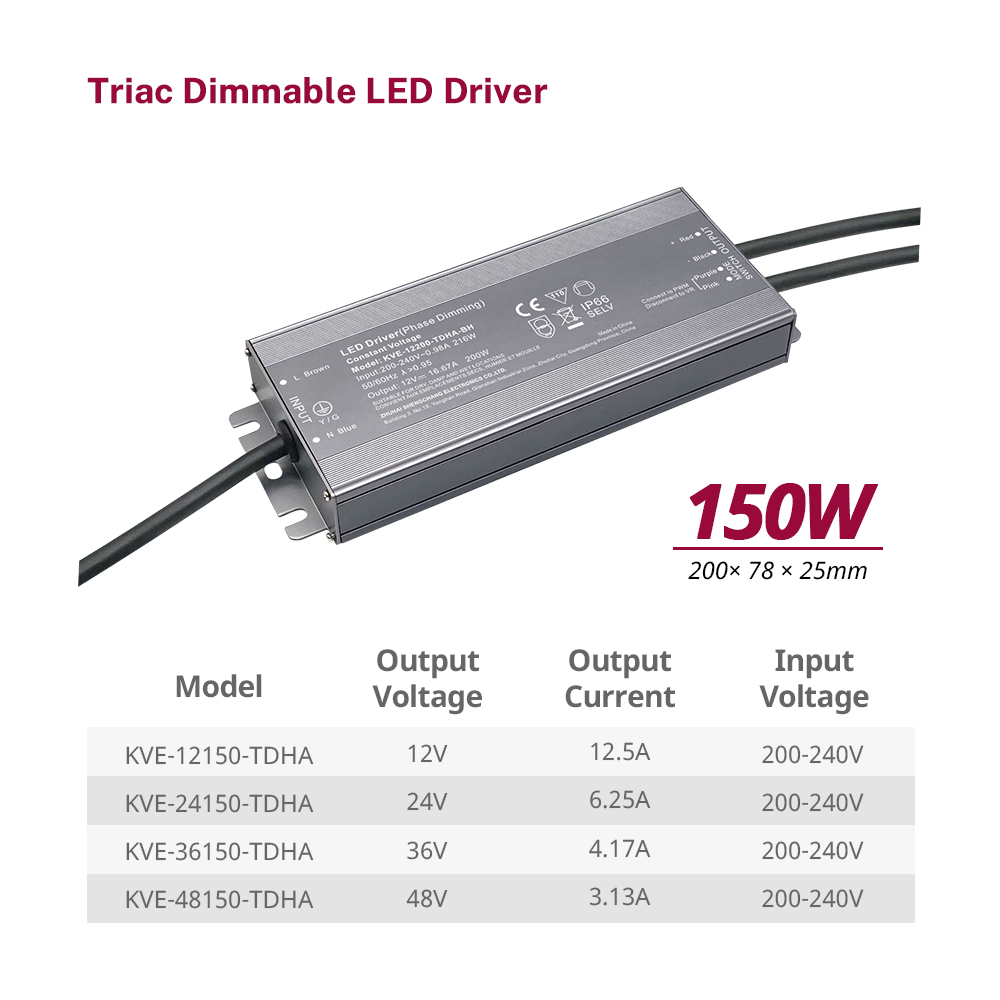

Output Power | Model Number | Output Voltage | Output Current | Size | Weight |
150W | KVE-12150-TDHA | 12V | 12.5A | 205*118*42.7mm | kg |
KVE-24150-TDHA | 24V | 6.25A | |||
KVE-36150-TDHA | 36V | 4.17A | |||
KVE-48150-TDHA | 48V | 3.13A | |||
200W | KVE-12200-TDHA | 12V | 16.67A | ||
KVE-24200-TDHA | 24V | 8.34A | |||
KVE-36200-TDHA | 36V | 5.56A | |||
KVE-48200-TDHA | 48V | 4.17A |
Triac LED Driver Wiring Diagram
Triac LED Driver Size（see the spec download）
