| Ouput Power: | |
|---|---|
Triac
Isolated
Constant Voltage
1CH (Dimming)
IP66, Dry & Damp, Wet
200-240VAC
30W
12/ 24/ 36/ 48V
CE, RoHS, REACH

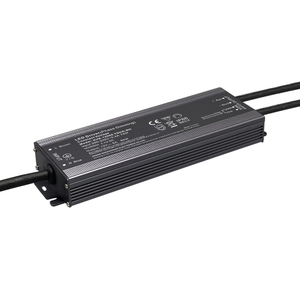

30 Watt CV Triac Dimmable LED Power Supplies 12V 24V 36V 48V
Output: | Constant Voltage |
Range: | 200-240VAC |
PFC design: | Built-in active PFC function |
Efficiency: | Up to 82% |
Protections: | Short circuit/ over load/ over temperature |
Heat dissipation: | Cooling by free air convection |
Waterproof performance: | IP66 can be used indoor and outdoor (EU) |
Dimming function: | PWM & Voltage reduce (VR) mode can be switched Phase dimming: work with Forward phase, MLV and Reverse phase, ELV, TRIAC dimmers. |
Min load | Min load is 20% |
Dimming range: | 0-100% dimming depth 0.1% |
Application: | Suitable for LED lighting and moving sign applications |
Warranty: | 5 years warranty |
Others | High efficiency, smaller size, high power factor, low THD |
Output Power | Model Number | Output Voltage | Output Current | Size | Weight |
30W | KVE-12030-TDHA | 12V | 2.5A | 167*61.4*25.5mm | kg |
KVE-24030-TDHA | 24V | 1.25A | |||
KVE-36030-TDHA | 36V | 0.83A | |||
KVE-48030-TDHA | 48V | 0.63A |
Triac LED Driver Wiring Diagram
Triac LED Driver Size（see the spec download）
