ZigBee (Tuya, Smart Life)
Isolated
Constant Voltage
1CH (Dimming), 2CH (CCT), 2CH (Dim to warn), 1-5CH (RGBCW)
IP66, Dry & Damp, Wet
100-277VAC
150W, 200W, 300W
12/ 24/ 36/ 48V
UL & cUL, CE, RoHS, REACH

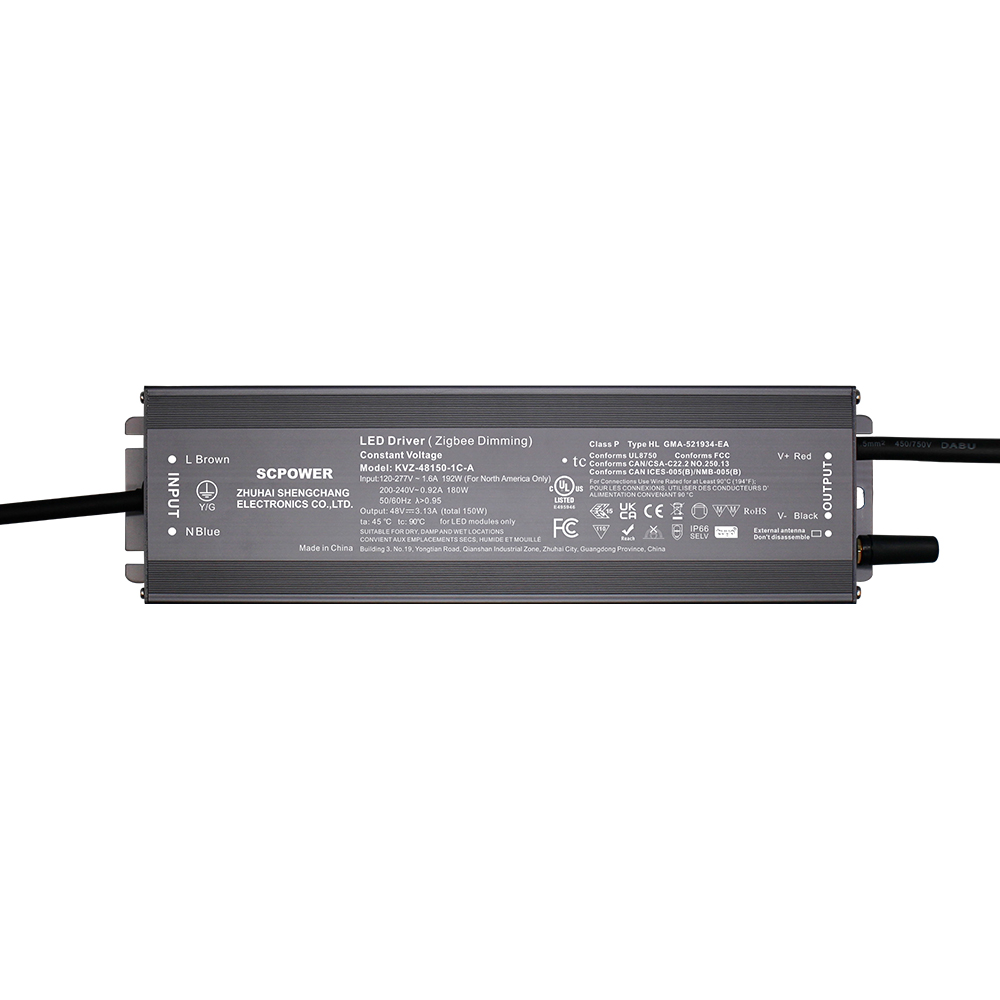

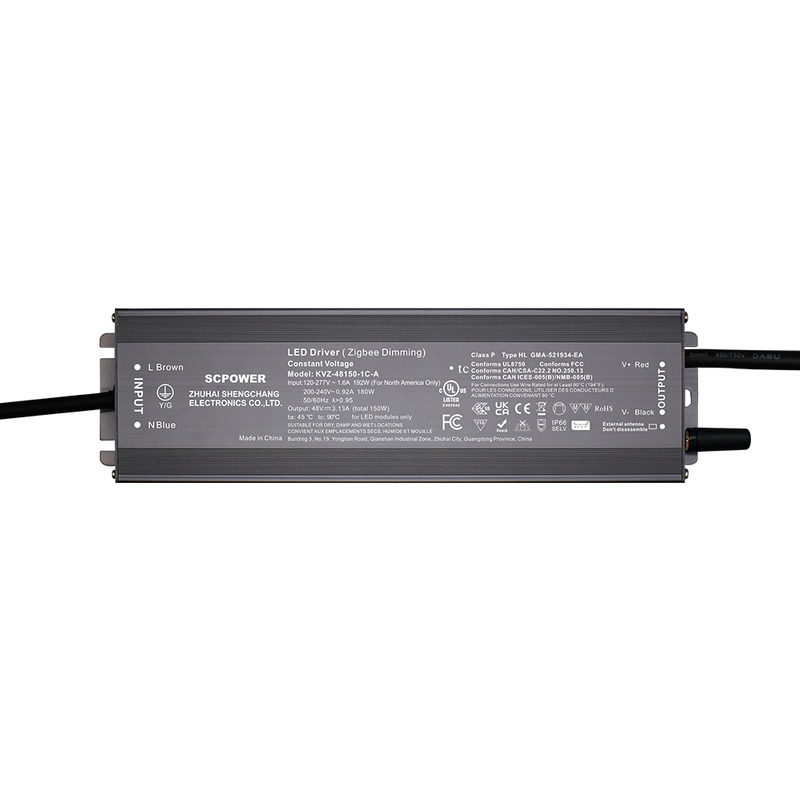

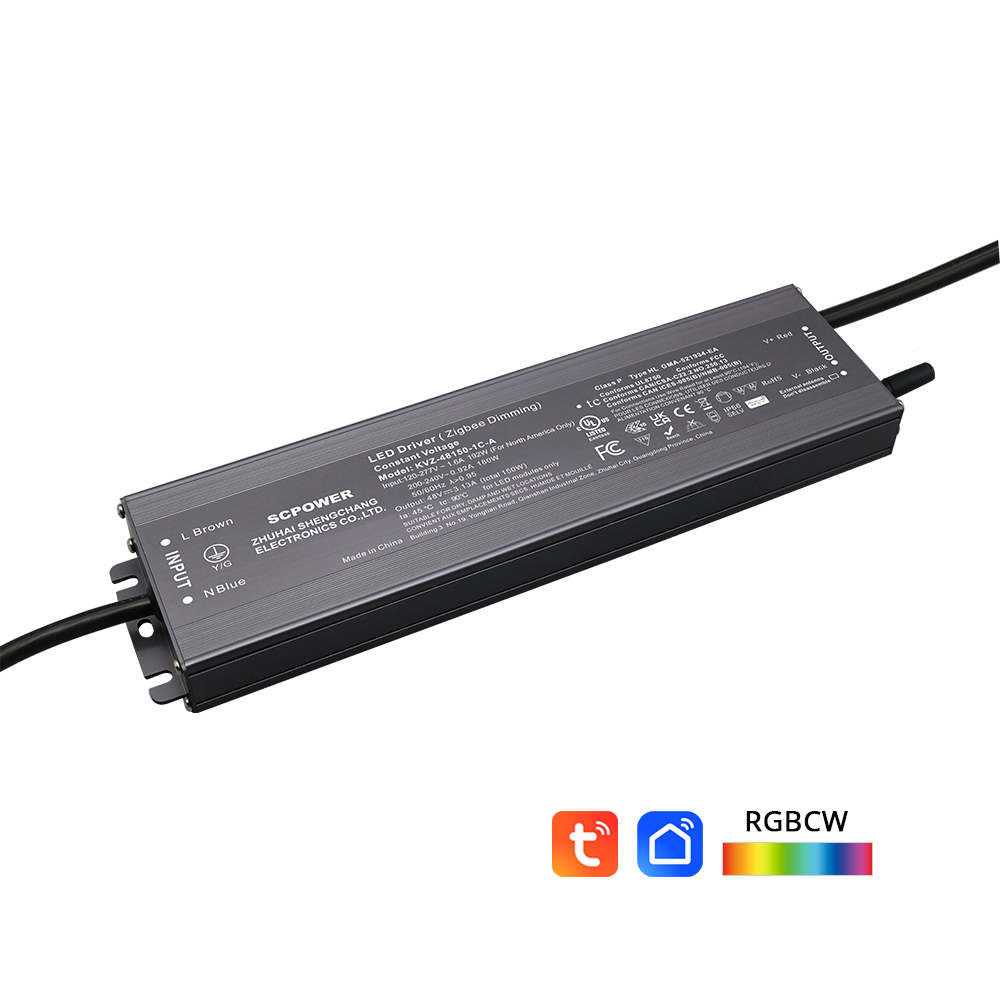

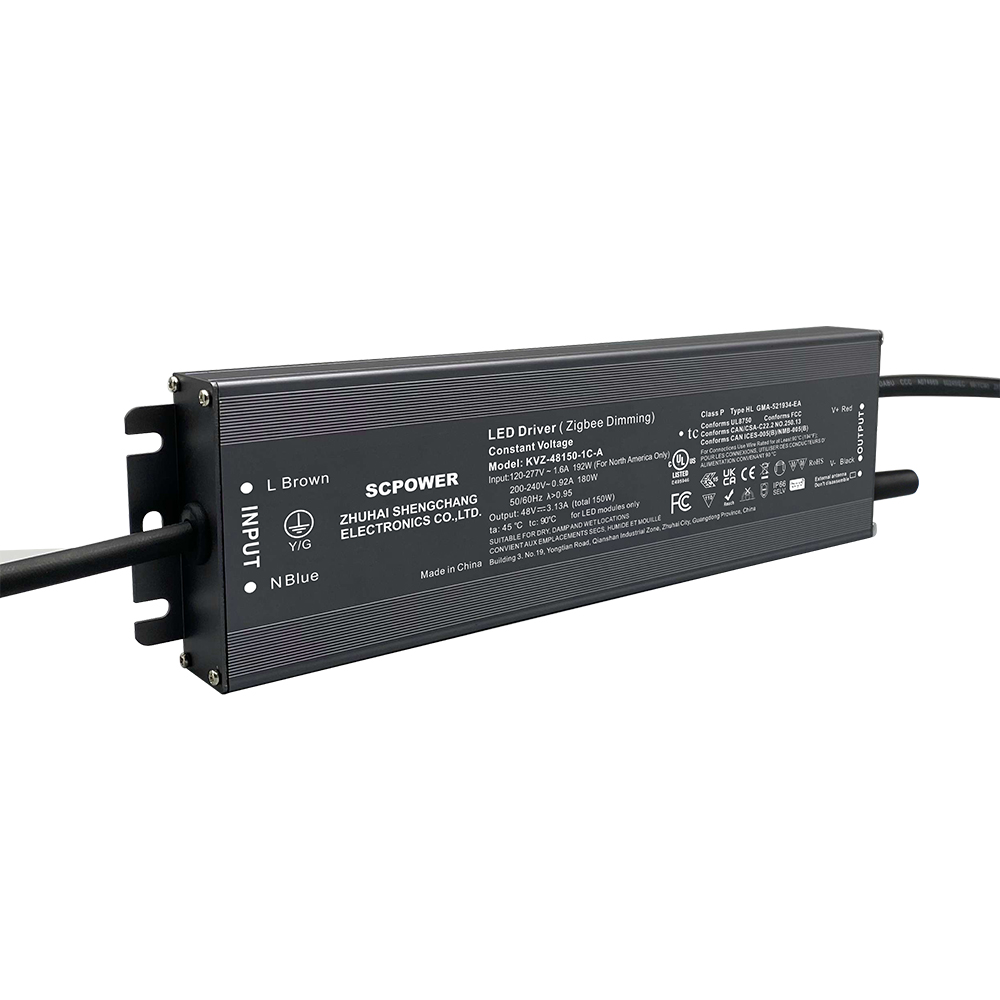

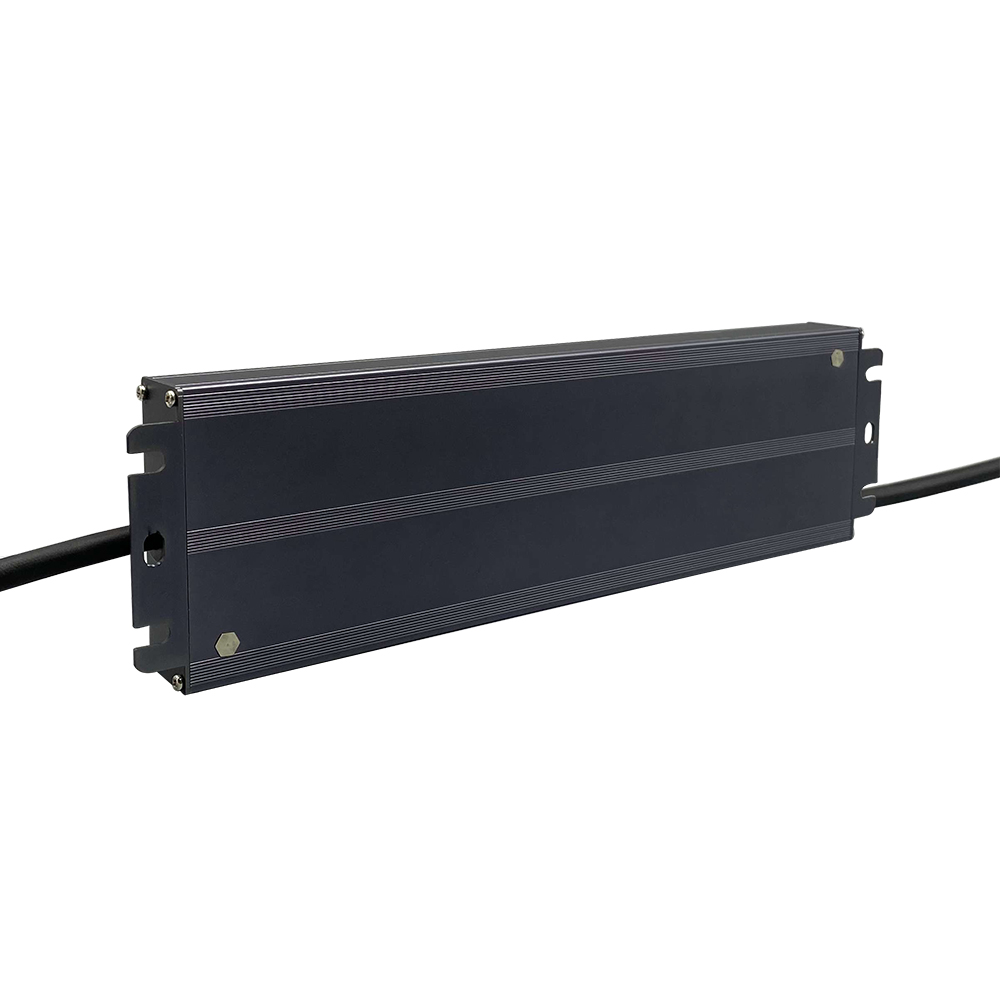

150W 200W 300W CV RGB CW ZigBee 3.0 Pro+ Smart LED Driver 25A Max DC 12V 24V 36V 48V Compatible with Amazon echo Google Home Smart Life Tuya Smart APP Control
Output: | Constant Voltage |
Range: | 110-277VAC |
PFC design: | Built-in active PFC function |
Efficiency: | Up to 93% |
Protections: | Short circuit/ over load/ over temperature |
Heat dissipation: | Cooling by free air convection |
Waterproof performance: | Full compact aluminum shell housing, for dry, damp & wet locations |
Dimming function: | ZigBee wireless dim., which can be controller by Mobile App or Smart speaker, like Google home or Amazon echo .Adopt TUYA module, 8K Hz PWM output |
Dimming range: | 1-100% |
Application: | Suitable for the application of LED lighting |
Warranty: | 5 years warranty |
Others: | Flicker free, 8KHZ PWM output to reach the exemption level |
Model Number | Output Voltage | Output Current | Output Power | Size | Weight |
KVZ-12150-xC-A | 12V | 12.5A | 150W | 205*118*42.7mm | 1.45kg |
KVZ-24150-xC-A | 24V | 6.25A | |||
KVZ-36150-xC-A | 36V | 4.17A | |||
KVZ-48150-xC-A | 48V | 3.13A | |||
KVZ-12200-xC-A | 12V | 16.67A | 200W | ||
KVZ-24200-xC-A | 24V | 8.34A | |||
KVZ-36200-xC-A | 36V | 5.56A | |||
KVZ-48200-xC-A | 48V | 4.17A | |||
KVZ-12300-xC-A | 12V | 25A | 300W | 276*78*47mm | 1.45kg |
KVZ-24300-xC-A | 24V | 12.5A | |||
KVZ-36300-xC-A | 36V | 8.33A | |||
KVZ-48300-xC-A | 48V | 6.25A |
150W 200W 300W CV RGB CW ZigBee 3.0 Pro+ Smart LED Driver 25A Max DC 12V 24V 36V 48V Compatible with Amazon echo Google Home Smart Life Tuya Smart APP Control
Output: | Constant Voltage |
Range: | 110-277VAC |
PFC design: | Built-in active PFC function |
Efficiency: | Up to 93% |
Protections: | Short circuit/ over load/ over temperature |
Heat dissipation: | Cooling by free air convection |
Waterproof performance: | Full compact aluminum shell housing, for dry, damp & wet locations |
Dimming function: | ZigBee wireless dim., which can be controller by Mobile App or Smart speaker, like Google home or Amazon echo .Adopt TUYA module, 8K Hz PWM output |
Dimming range: | 1-100% |
Application: | Suitable for the application of LED lighting |
Warranty: | 5 years warranty |
Others: | Flicker free, 8KHZ PWM output to reach the exemption level |
Model Number | Output Voltage | Output Current | Output Power | Size | Weight |
KVZ-12150-xC-A | 12V | 12.5A | 150W | 205*118*42.7mm | 1.45kg |
KVZ-24150-xC-A | 24V | 6.25A | |||
KVZ-36150-xC-A | 36V | 4.17A | |||
KVZ-48150-xC-A | 48V | 3.13A | |||
KVZ-12200-xC-A | 12V | 16.67A | 200W | ||
KVZ-24200-xC-A | 24V | 8.34A | |||
KVZ-36200-xC-A | 36V | 5.56A | |||
KVZ-48200-xC-A | 48V | 4.17A | |||
KVZ-12300-xC-A | 12V | 25A | 300W | 276*78*47mm | 1.45kg |
KVZ-24300-xC-A | 24V | 12.5A | |||
KVZ-36300-xC-A | 36V | 8.33A | |||
KVZ-48300-xC-A | 48V | 6.25A |
