| Model: | |
|---|---|
0-10V
Isolated
Constant Current
1CH (Dimming), 2CH (Dim to warn)
IP20, Dry & Damp
100-277VAC
30W, 40W, 60W
3V-42V
CE, RoHS, REACH

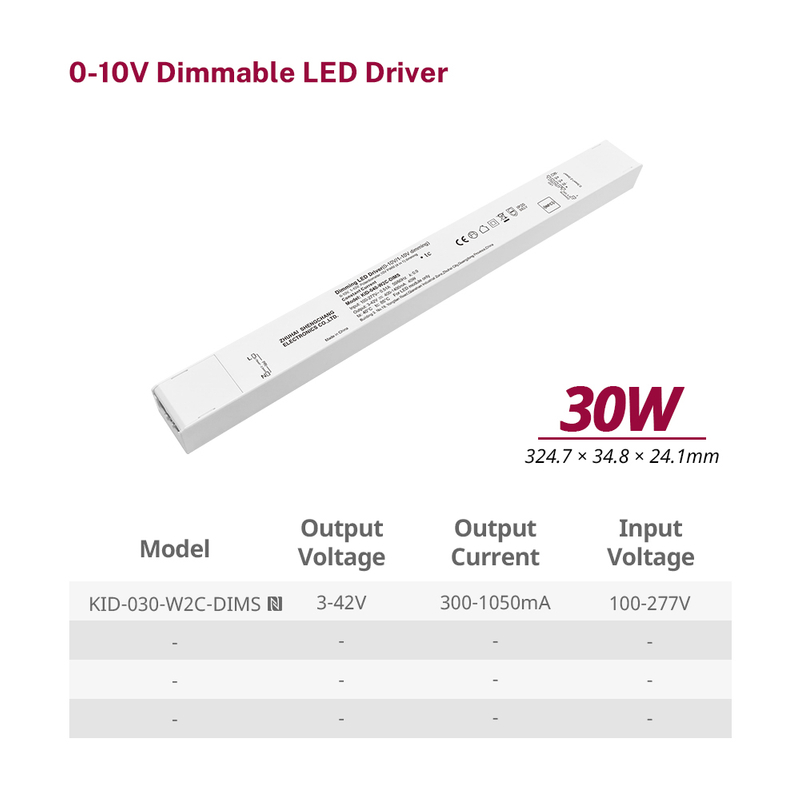

30 40 60 Watt CC Dim to Warm 0-10V Dimmable Constant Current LED Power Supply 100V 110V 120V 130V 277V AC
Output: | Constant Current |
NFC function: | Adjust output current by NFC; Switch between dim for single color and Dim to warm for CCT light by NFC |
Range: | 100-277VAC |
PFC design: | Built-in active PFC function |
Protections: | Short circuit/ over temperature |
Heat dissipation: | Cooling by free air convection |
Waterproof performance: | IP20 for indoor; Full protection plastic housing, for dry and damp locations |
Dimming function: | 0-10V dimming: 0-10V/1-10V/Potentiometer/10V PWM 4 in 1 |
Dimming range: | 1-100% |
Application: | Suitable for the application of indoor LED lighting |
Warranty: | 5 years warranty |
Others: | Strong compatibility, flicker-free dimming |
Output Power | Model Number | Output Voltage | Output Current | Input Voltage | Size | Weight |
30W | KID-030-W2C-DIMS | 3-42V | 300-1050mA | 100-277VAC | 320*37*24mm | 0.30 kg |
40W | KID-040-W2C-DIMS | 3-42V | 400-1400mA | 100-277VAC | 324.7*34.8*24.1mm | 0.29 kg |
60W | KID-060-W2C-DIMS | 3-42V | 500-2100mA | 110-277VAC | 342*34.8*24.1mm |
