| Model: | |
|---|---|
0-10V
Isolated
Constant Current
1CH (Dimming)
IP20, Dry & Damp
100-277VAC
30W, 40W, 60W
3V-42V
UL & cUL

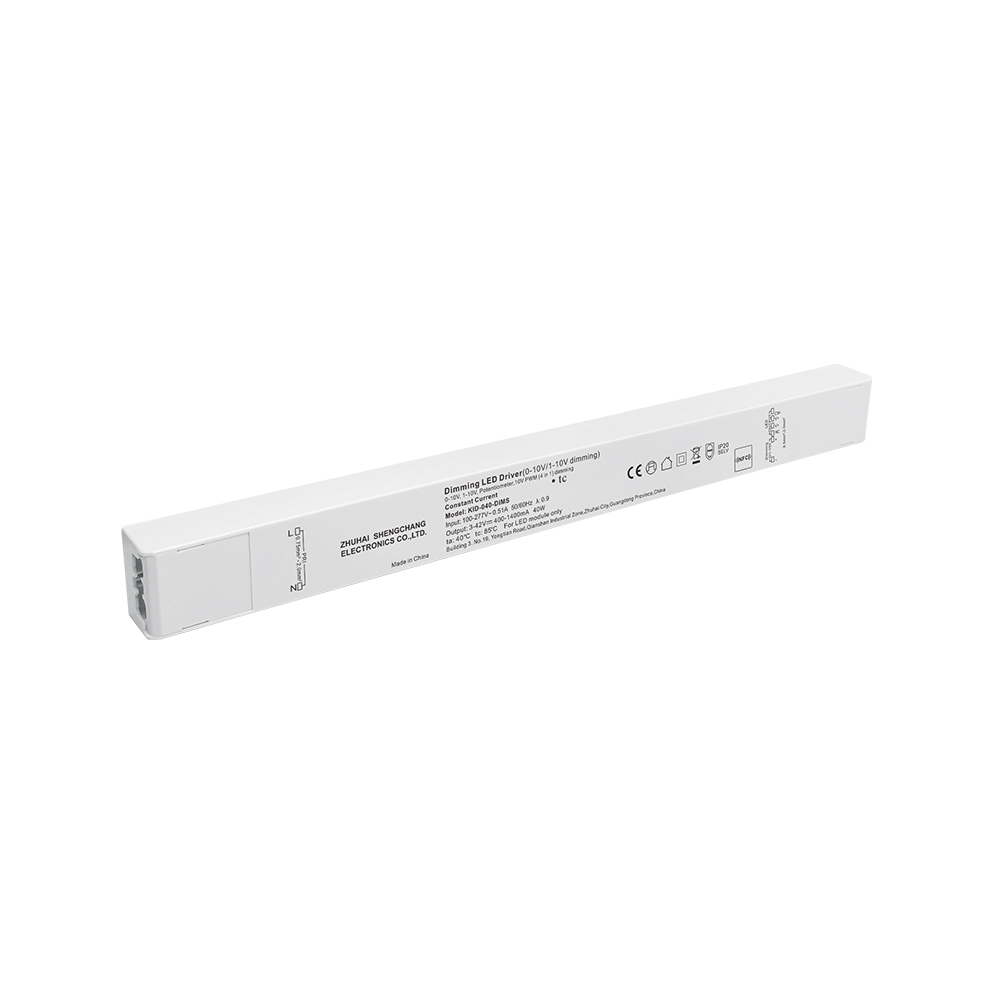

30W 36W 60W 96W 100W 150W CC 0-10V Dimming Indoor Linear LED Power Supply for LED Lamp
Output: | Constant Current |
NFC function: | Adjust output current by NFC |
Range: | 100-277VAC |
PFC design: | Built-in active PFC function |
Protections: | Short circuit/ over temperature |
Heat dissipation: | Cooling by free air convection |
Waterproof performance: | IP20 for indoor; Full protection plastic housing, for dry, damp, locations |
Dimming function: | 0-10V dimming: 0-10V/1-10V/Potentiometer/10V PWM 4 in 1 |
Dimming range: | 1-100% |
Application: | Suitable for the application of indoor LED lighting |
Warranty: | 5 years warranty |
Output Power | Model Number | Output Voltage | Output Current | Size | Weight |
30W | KID-030-DIMS | 3-42V | 300-1050mA | 320*37*24mm | |
40W | KID-040-DIMS | 3-42V | 400-1400mA | 324.7*34.8*24.1mm | |
60W | KID-060-DIMS | 3-42V | 500-2100mA | 342*34.8*24.1mm |
30W 36W 60W 96W 100W 150W CC 0-10V Dimming Indoor Linear LED Power Supply for LED Lamp
Output: | Constant Current |
NFC function: | Adjust output current by NFC |
Range: | 100-277VAC |
PFC design: | Built-in active PFC function |
Protections: | Short circuit/ over temperature |
Heat dissipation: | Cooling by free air convection |
Waterproof performance: | IP20 for indoor; Full protection plastic housing, for dry, damp, locations |
Dimming function: | 0-10V dimming: 0-10V/1-10V/Potentiometer/10V PWM 4 in 1 |
Dimming range: | 1-100% |
Application: | Suitable for the application of indoor LED lighting |
Warranty: | 5 years warranty |
Output Power | Model Number | Output Voltage | Output Current | Size | Weight |
30W | KID-030-DIMS | 3-42V | 300-1050mA | 320*37*24mm | |
40W | KID-040-DIMS | 3-42V | 400-1400mA | 324.7*34.8*24.1mm | |
60W | KID-060-DIMS | 3-42V | 500-2100mA | 342*34.8*24.1mm |
