| Ouput Power: | |
|---|---|
0-10V
Isolated
Constant Voltage
1CH (Dimming)
IP66, Dry & Damp, Wet
110-277VAC
500W, 600W
12/ 24/ 36/ 48V
UL & cUL, FCC, Class 2, RoHS, REACH

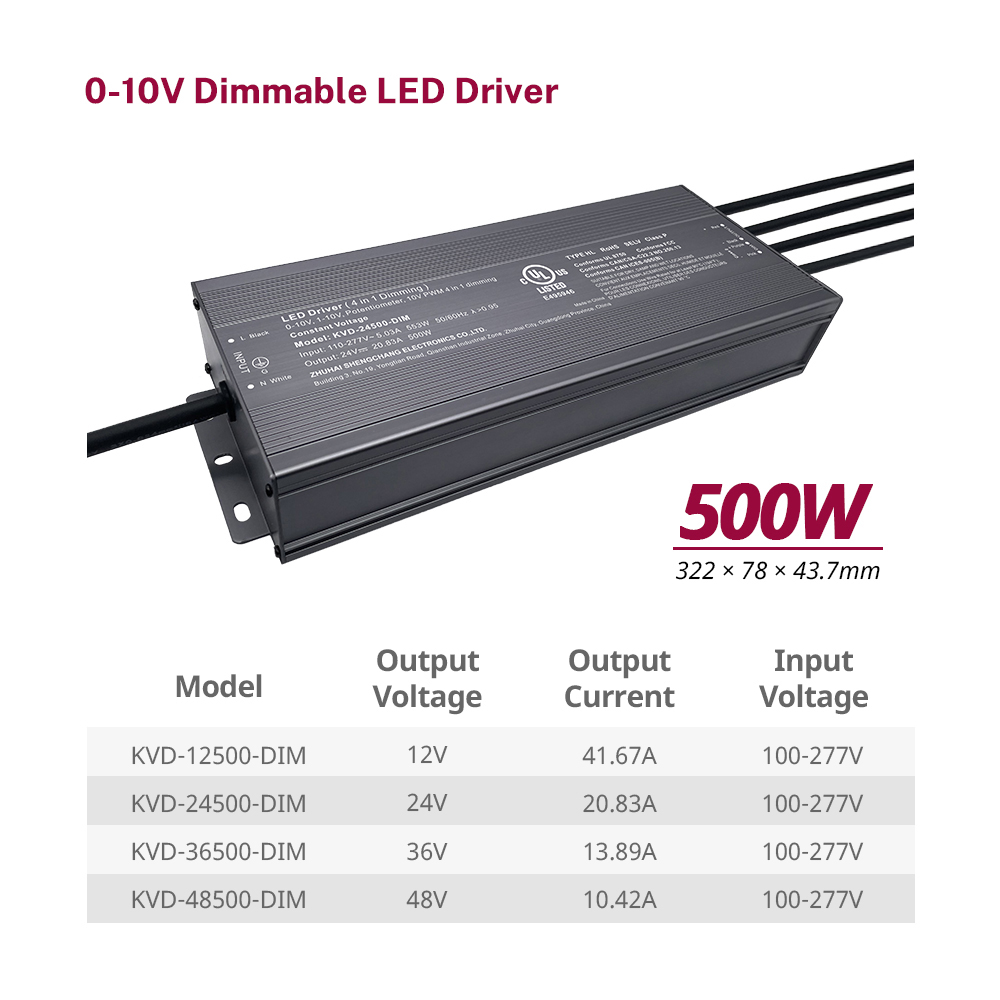

500W 600W CV 0-10V Dimmable LED Power Supply for Lights
·Output constant Voltage
·Range: 100-277VAC
·Built-in active PFC function
·Protections: short circuit/over load/ over temperature
·Cooling by free air convection
·Full protection aluminum housing, for dry, damp, wet locations
·Dimming function:
·0-10V dimming: 0-10V/1-10V/Potentiometer/10V PWM 4 in 1
·Dimming range: 0-100%
·Suitable for LED lighting and moving sign applications
Output Power | Model Number | Output Voltage | Output Current | Input Voltage | Size | Weight |
500W | KVD-12150-DIM | 12V | 12.5A | 100-277V AC | 322*78*43.7mm | 1.98kg |
KVD-24150-DIM | 24V | 6.25A | ||||
KVD-36150-DIM | 36V | 4.17A | ||||
KVD-48150-DIM | 48V | 3.13A | ||||
600W | KVD-12200-DIM | 12V | 16.67A | |||
KVD-24200-DIM | 24V | 8.34A | ||||
KVD-36200-DIM | 36V | 5.56A | ||||
KVD-48200-DIM | 48V | 4.17A |
500W/600W 0-10V LED Power Supply
500W/600W 0-10V LED Power Supply Size:
500W 600W CV 0-10V Dimmable LED Power Supply for Lights
·Output constant Voltage
·Range: 100-277VAC
·Built-in active PFC function
·Protections: short circuit/over load/ over temperature
·Cooling by free air convection
·Full protection aluminum housing, for dry, damp, wet locations
·Dimming function:
·0-10V dimming: 0-10V/1-10V/Potentiometer/10V PWM 4 in 1
·Dimming range: 0-100%
·Suitable for LED lighting and moving sign applications
Output Power | Model Number | Output Voltage | Output Current | Input Voltage | Size | Weight |
500W | KVD-12150-DIM | 12V | 12.5A | 100-277V AC | 322*78*43.7mm | 1.98kg |
KVD-24150-DIM | 24V | 6.25A | ||||
KVD-36150-DIM | 36V | 4.17A | ||||
KVD-48150-DIM | 48V | 3.13A | ||||
600W | KVD-12200-DIM | 12V | 16.67A | |||
KVD-24200-DIM | 24V | 8.34A | ||||
KVD-36200-DIM | 36V | 5.56A | ||||
KVD-48200-DIM | 48V | 4.17A |
500W/600W 0-10V LED Power Supply
500W/600W 0-10V LED Power Supply Size:
