Ouput Power: | |
---|---|
Availability: | |
BLE (Casambi, Tuya, Smart Life
Isolated
Constant Voltage
Dimming, CCT, Warm-dim, RGBCW
IP66, Dry & Damp, Wet
110-277VAC
150W, 200W, 300W
12/ 24/ 36/ 48V
CE, RoHS, REACH

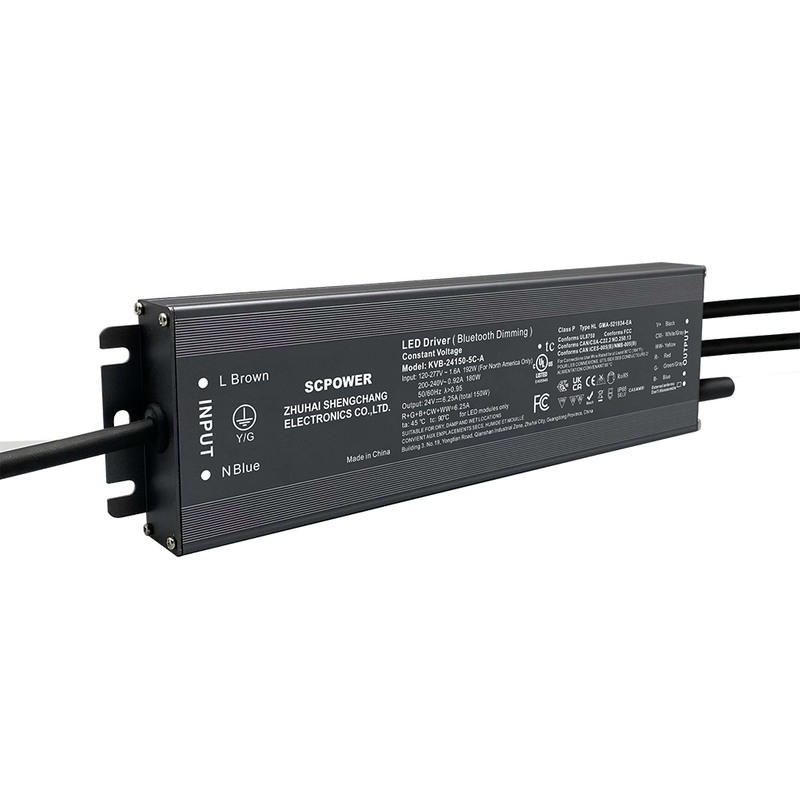

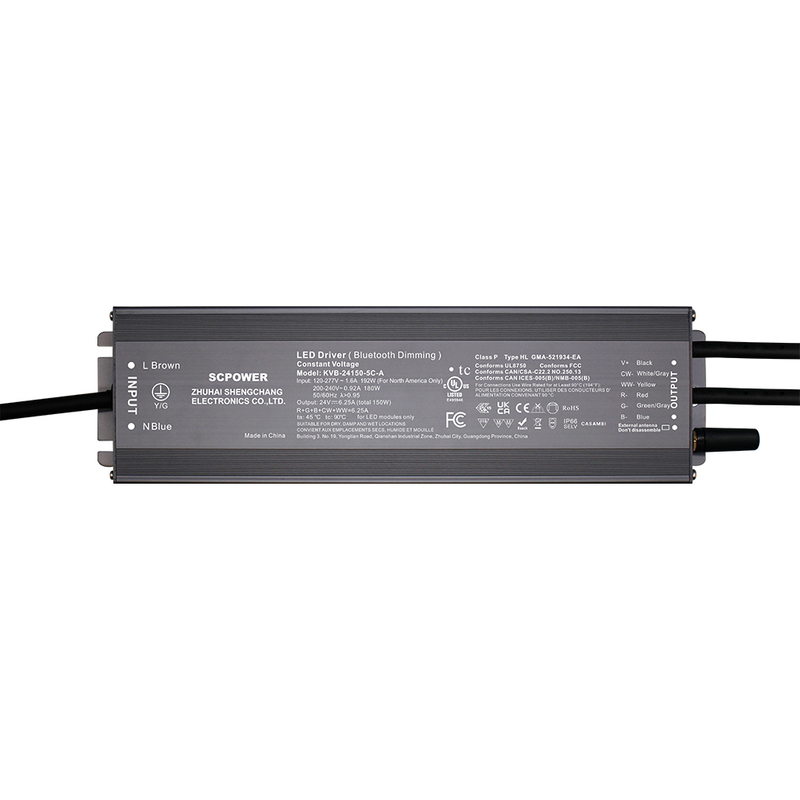

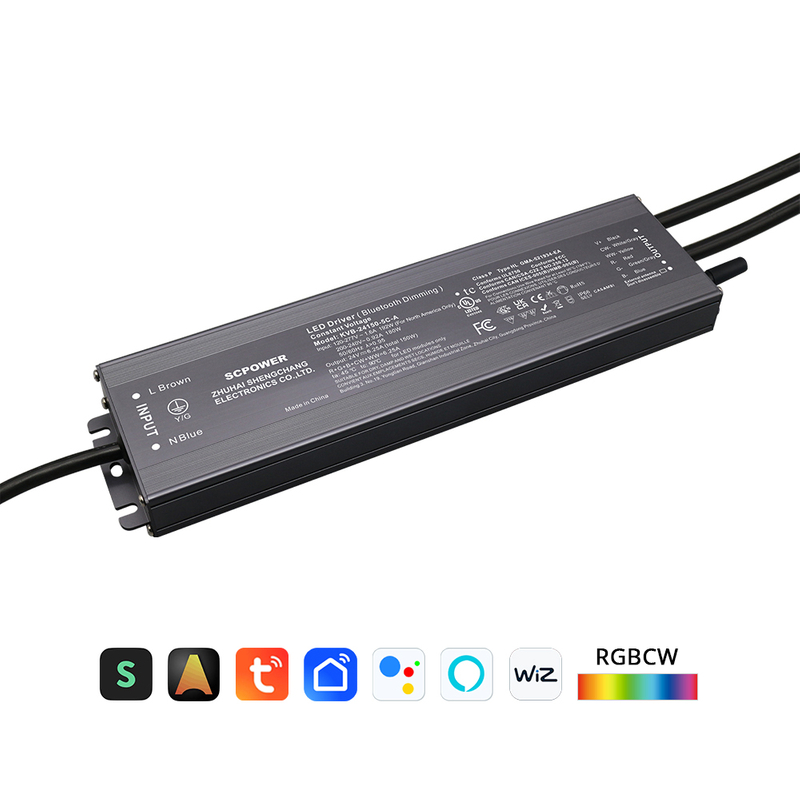

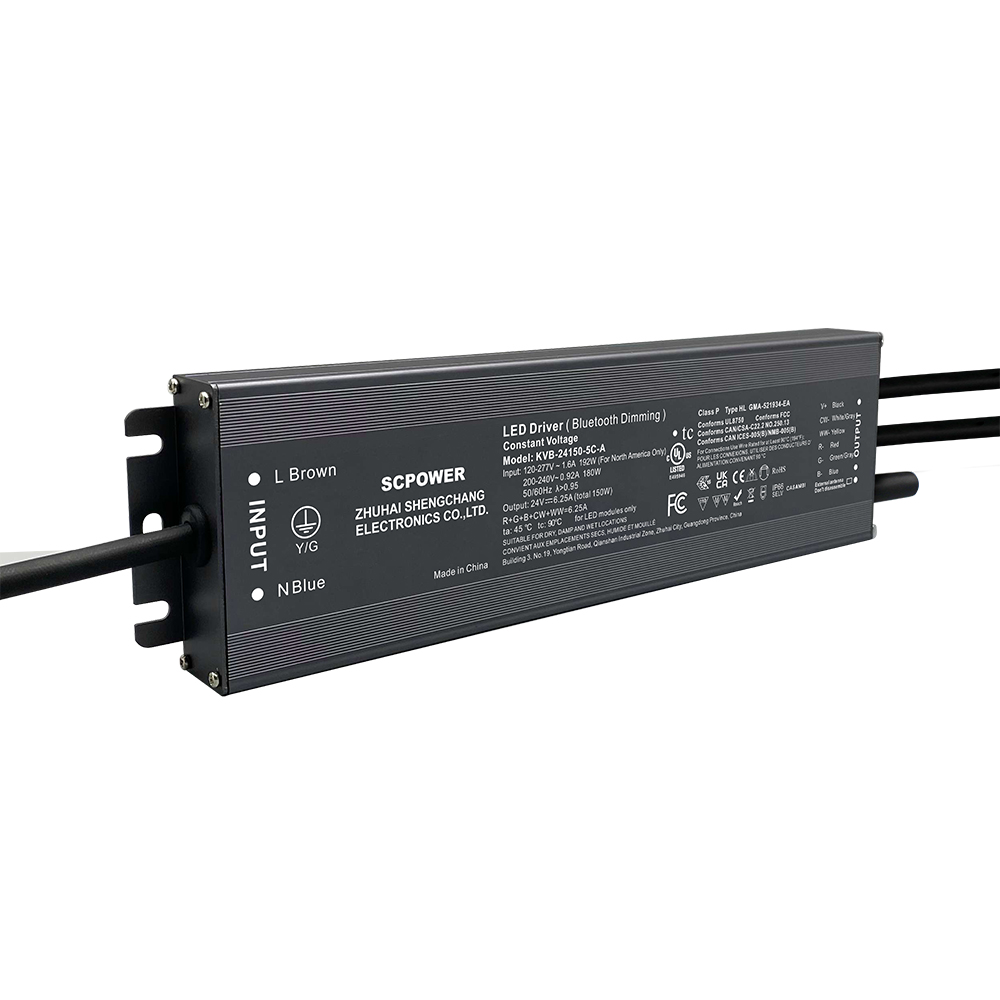

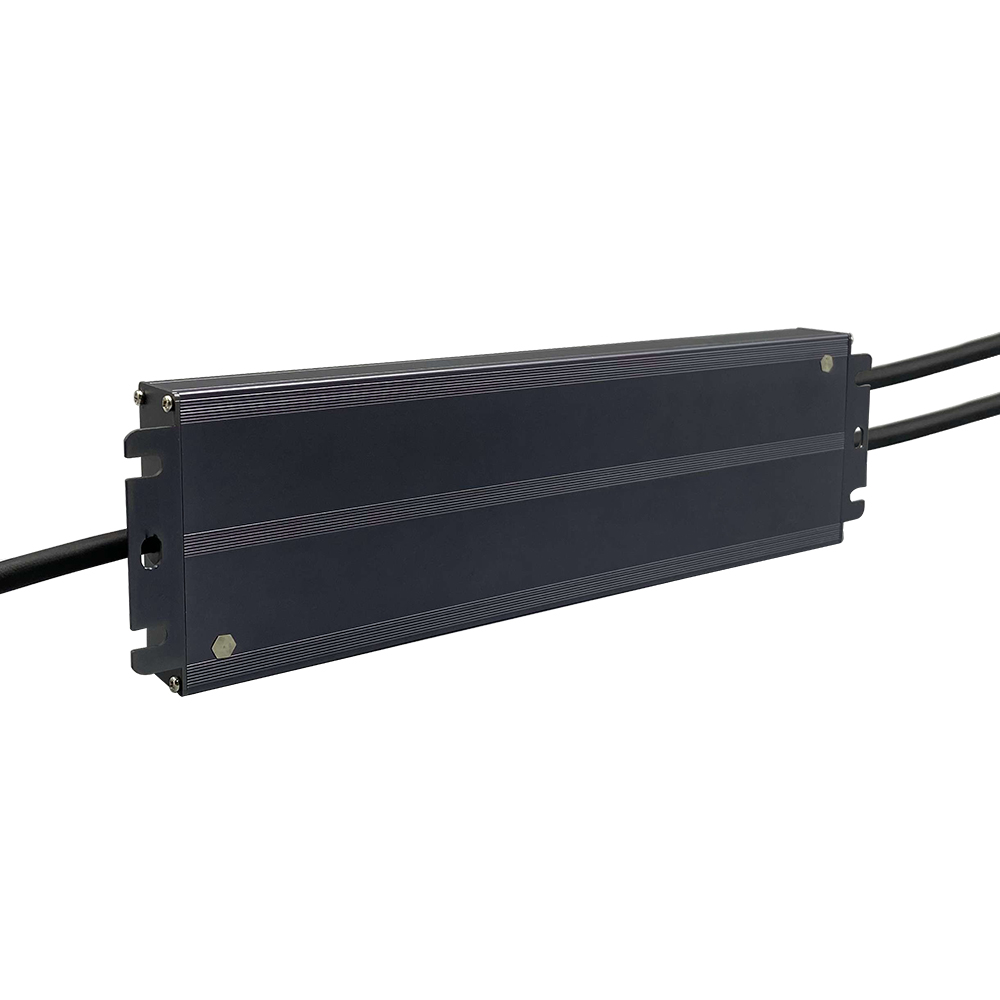

150W 200W 300W CV RGB CW 1 - 5 Channels BLE Dimmable Tuya Silvair Wiz Casambi LED Power Supply for LED Lights
Output: | Constant Voltage |
Range: | 110-277VAC |
PFC design: | Built-in active PFC function |
Efficiency: | Up to 93% |
Protections: | Short circuit/ over load/ over temperature |
Heat dissipation: | Cooling by free air convection |
Waterproof performance: | IP66 |
Dimming function | Bluetooth wireless dim., which can be controller by Mobile App or Smart speaker, like Google home or Amazon echo. Adopt TUYA module, 8K Hz PWM output |
Dimming range: | 1-100% |
Application: | Suitable for the application of LED lighting |
Warranty: | 5 years warranty |
Model Number | Output Voltage | Output Current | Output Power | Size | Weight |
KVB-12150-xC-A | 12V | 12.5A | 150W | 279*78*25.1mm (L*W*H) | 1.1KG |
KVB-24150-xC-A | 24V | 6.25A | |||
KVB-36150-xC-A | 36V | 4.17A | |||
KVB-48150-xC-A | 48V | 3.13A | |||

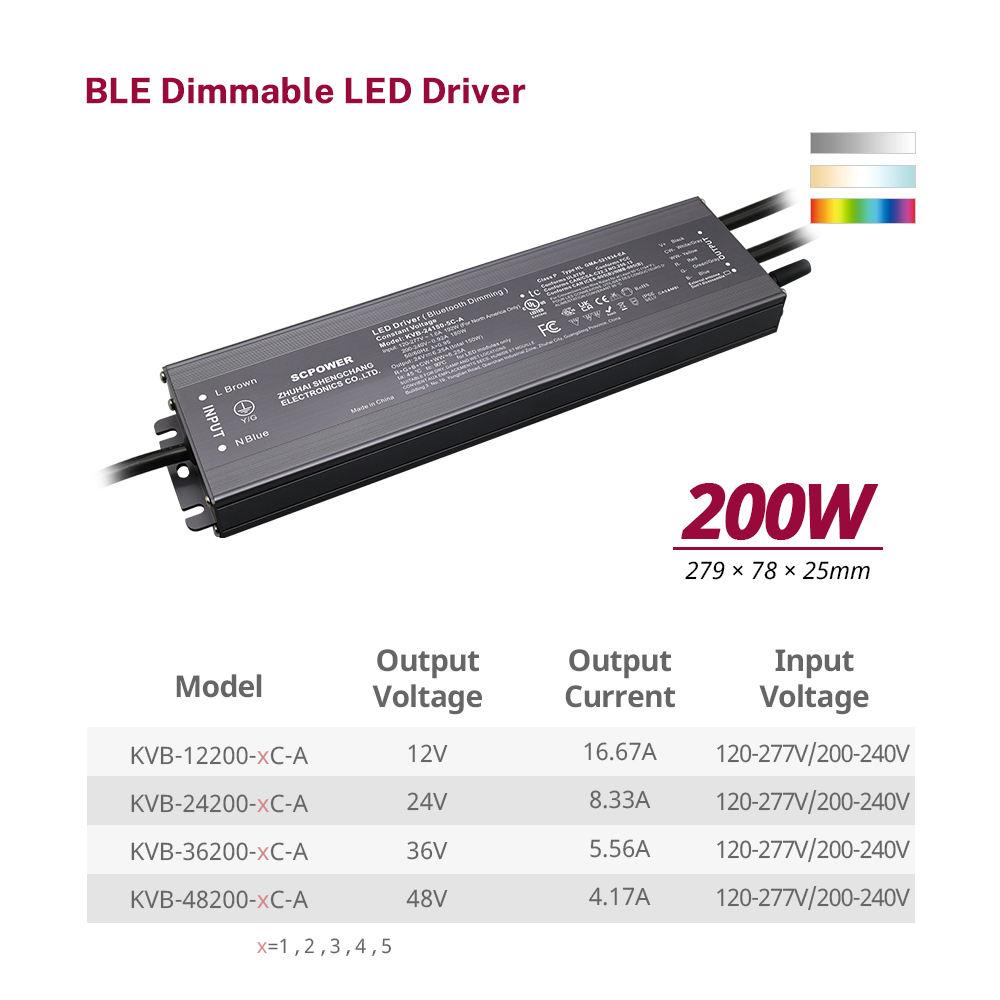

KVB-12200-xC-A | 12V | 16.67A | 200W | ||
KVB-24200-xC-A | 24V | 8.34A | |||
KVB-36200-xC-A | 36V | 5.56A | |||
KVB-48200-xC-A | 48V | 4.17A | |||
KVB-12300-xC-A | 12V | 25A | 300W | 302*78*25.1mm (L*W*H) | 1.15KG |
KVB-24300-xC-A | 24V | 12.5A | |||
KVB-36300-xC-A | 36V | 8.33A | |||
KVB-48300-xC-A | 48V | 6.25A |
150W 200W 300W RGB CW 1 - 5 Channels BLE Dimmable Tuya Silvair Wiz Casambi LED Power Supply CV for LED Lights
150W 200W 300W CV RGB CW 1 - 5 Channels BLE Dimmable Tuya Silvair Wiz Casambi LED Power Supply for LED Lights
Output: | Constant Voltage |
Range: | 110-277VAC |
PFC design: | Built-in active PFC function |
Efficiency: | Up to 93% |
Protections: | Short circuit/ over load/ over temperature |
Heat dissipation: | Cooling by free air convection |
Waterproof performance: | IP66 |
Dimming function | Bluetooth wireless dim., which can be controller by Mobile App or Smart speaker, like Google home or Amazon echo. Adopt TUYA module, 8K Hz PWM output |
Dimming range: | 1-100% |
Application: | Suitable for the application of LED lighting |
Warranty: | 5 years warranty |
Model Number | Output Voltage | Output Current | Output Power | Size | Weight |
KVB-12150-xC-A | 12V | 12.5A | 150W | 279*78*25.1mm (L*W*H) | 1.1KG |
KVB-24150-xC-A | 24V | 6.25A | |||
KVB-36150-xC-A | 36V | 4.17A | |||
KVB-48150-xC-A | 48V | 3.13A | |||
KVB-12200-xC-A | 12V | 16.67A | 200W | ||
KVB-24200-xC-A | 24V | 8.34A | |||
KVB-36200-xC-A | 36V | 5.56A | |||
KVB-48200-xC-A | 48V | 4.17A | |||
KVB-12300-xC-A | 12V | 25A | 300W | 302*78*25.1mm (L*W*H) | 1.15KG |
KVB-24300-xC-A | 24V | 12.5A | |||
KVB-36300-xC-A | 36V | 8.33A | |||
KVB-48300-xC-A | 48V | 6.25A |
150W 200W 300W RGB CW 1 - 5 Channels BLE Dimmable Tuya Silvair Wiz Casambi LED Power Supply CV for LED Lights
