Products Detail

You are here: Home / Products / Wireless Dimmable LED Driver-Casambi Tuya BLE WiFi ZigBee / Constant Voltage BLE / 96 100 120 150 200 300 Watt RGB CW BLE Dimming Tuya Silvair Casambi App LED Driver Constant Voltage 12VDC 24VDC Output

Dimming Type:
BLE (Casambi, Tuya, Smart Life
Isolated Type:
Isolated
Output Type:
Constant Voltage
Output Channels:
Dimming, CCT, Warm-dim, RGBCW
IP Rate:
IP66, Dry & Damp, Wet
Input Voltage:
100-277VAC
Output Power:
96W, 100W, 120W, 150W, 300W
Output Voltage:
12/ 24/ 36/ 48V
Certification:
CE, RoHS, REACH

Advantage

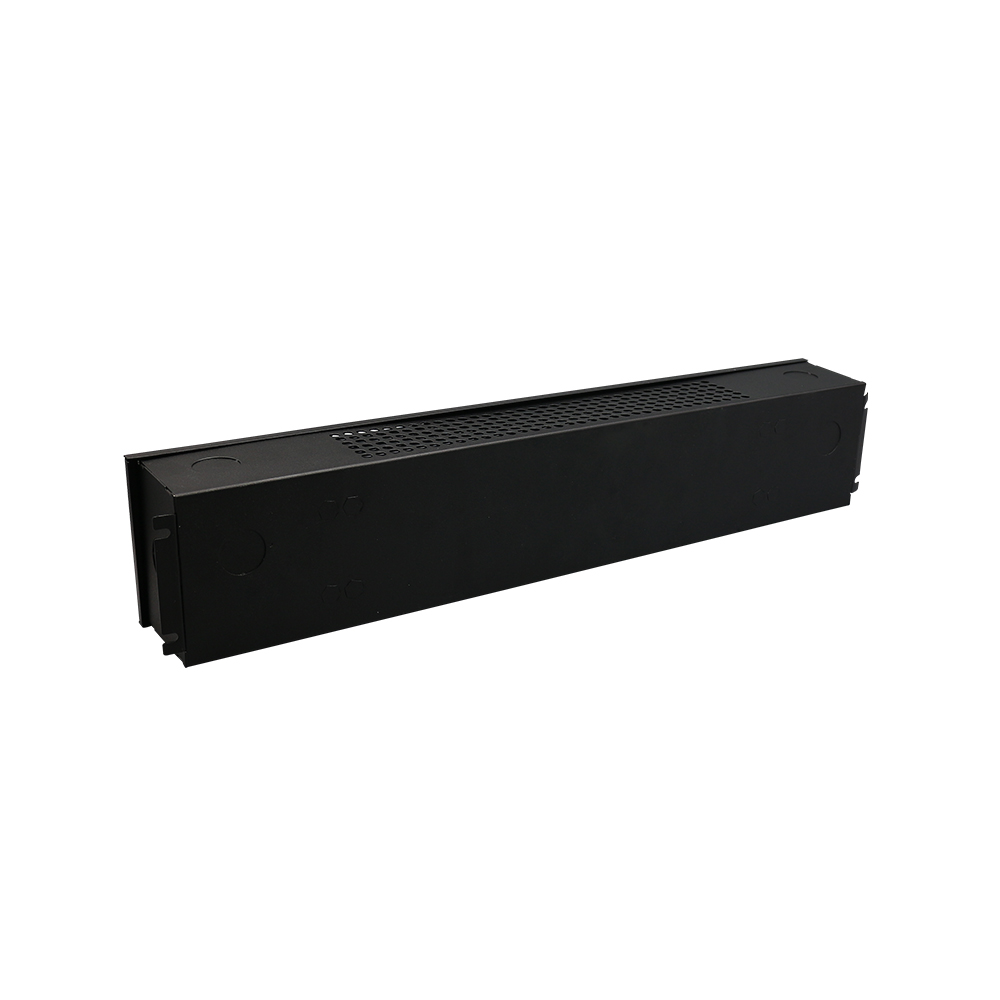

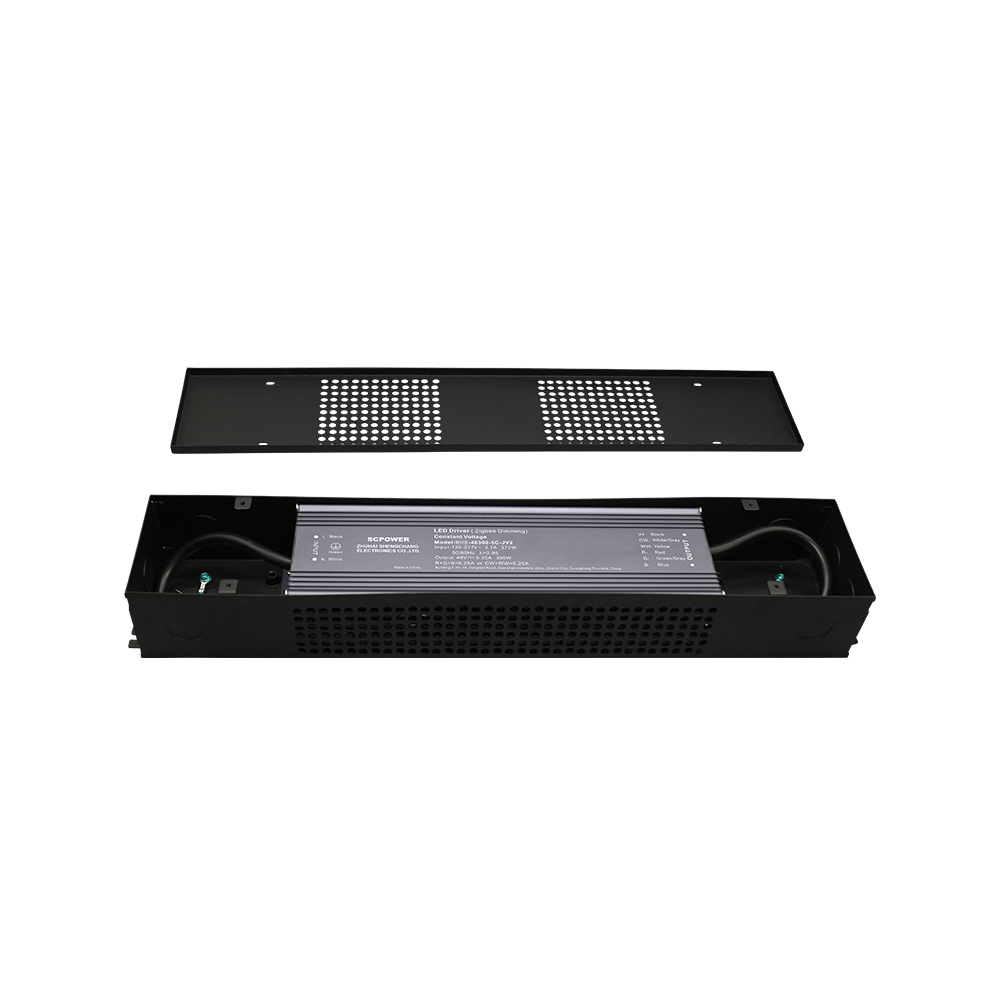

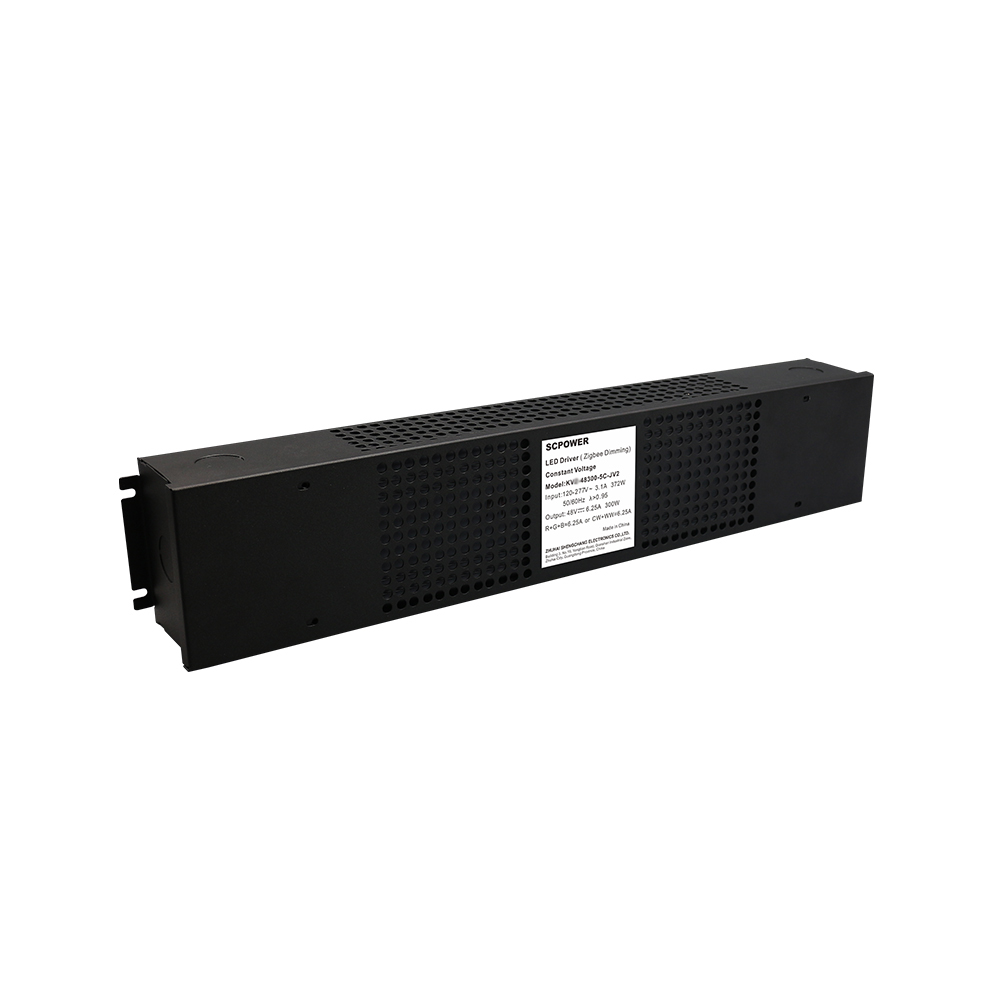

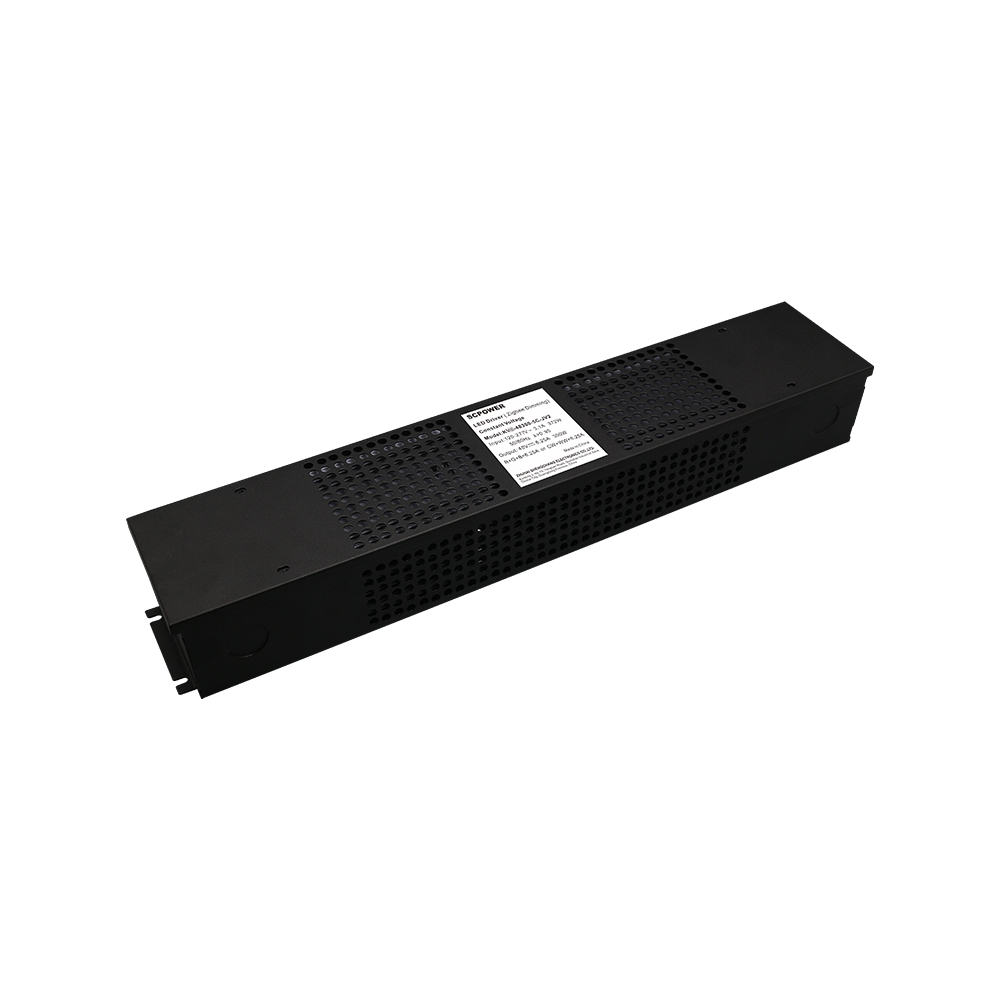

96 100 120 150 200 300 Watt RGB CW BLE Dimming Tuya Silvair Casambi App LED Driver Constant Voltage 12VDC 24VDC Output

Specification

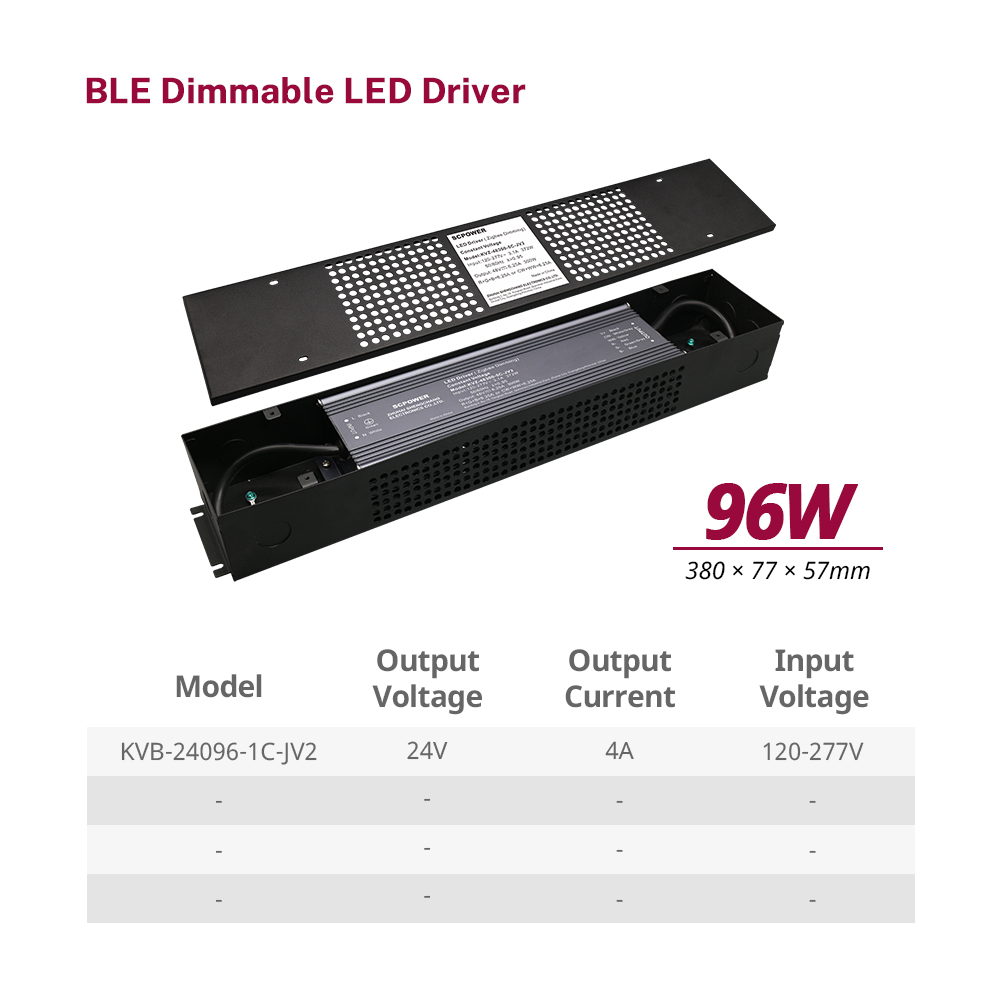

Model Number (x=1,2,3,4,5 Channel)	Output Voltage	Output Current	Output Power	Size	Weight
KVB-24096-xC-JV2	24V	4A	96W	3807757mm	kg
KVB-36096-xC-JV2	36V	2.67A
KVB-48096-xC-JV2	48V	2A
KVB-12100-xC-JV2	12V	8.34A	100W
KVB-24100-xC-JV2	24V	4.17A
KVB-36100-xC-JV2	36V	2.78A
KVB-48100-xC-JV2	48V	2.09A
KVB-12120-xC-JV2	12V	10A	120W
KVB-24120-xC-JV2	24V	5A
KVB-36120-xC-JV2	36V	3.33A
KVB-48120-xC-JV2	48V	2.5A

KVB-12150-xC-JV2	12V	12.5A	150W	4068760mm (LWH)	kg
KVB-24150-xC-JV2	24V	6.25A
KVB-36150-xC-JV2	36V	4.17A
KVB-48150-xC-JV2	48V	3.13A
KVB-12200-xC-JV2	12V	16.67A	200W
KVB-24200-xC-JV2	24V	8.34A
KVB-36200-xC-JV2	36V	5.56A
KVB-48200-xC-JV2	48V	4.17A

KVB-12300-xC-JV2	12V	25A	300W	4558760mm (LWH)	kg
KVB-24300-xC-JV2	24V	12.5A
KVB-36300-xC-JV2	36V	8.33A
KVB-48300-xC-JV2	48V	6.25A
