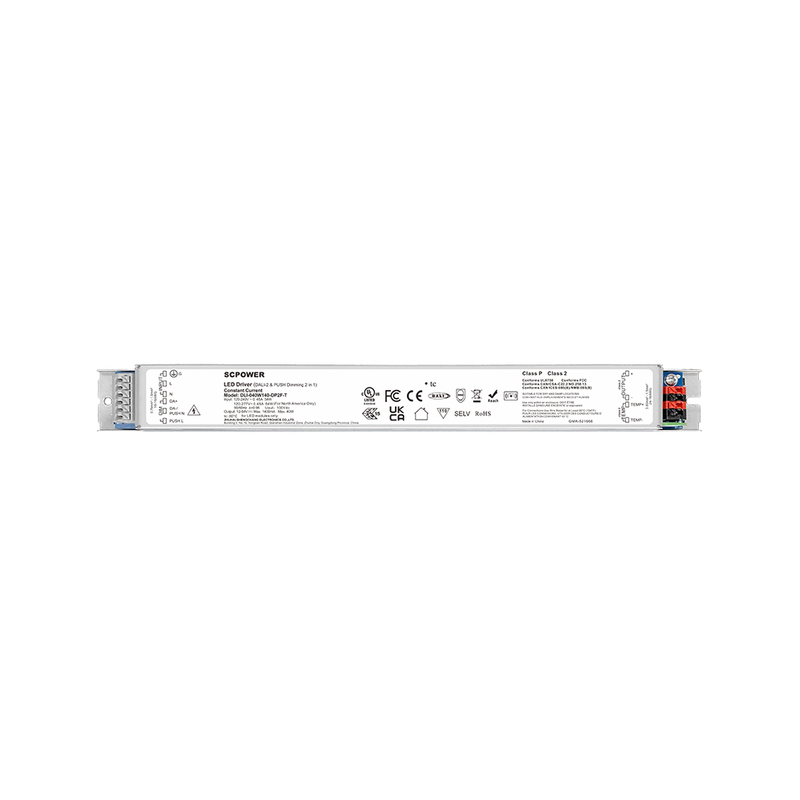

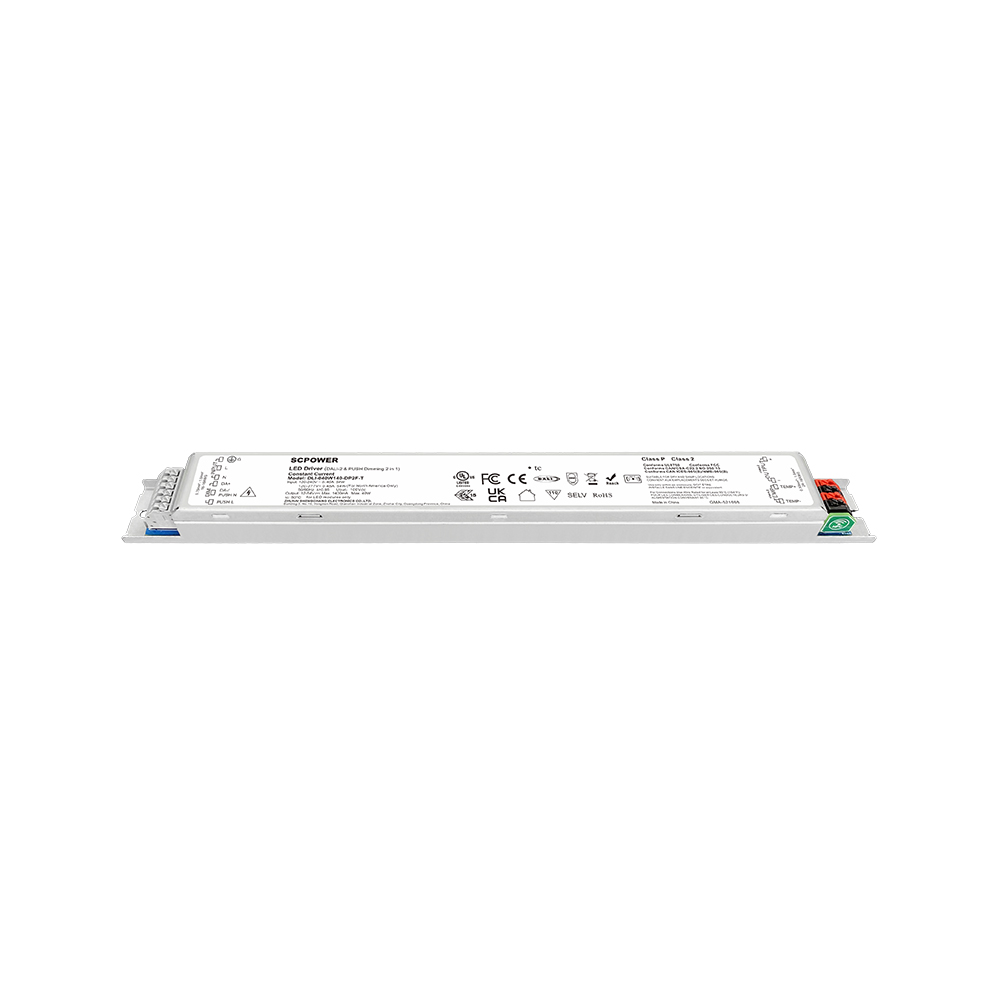

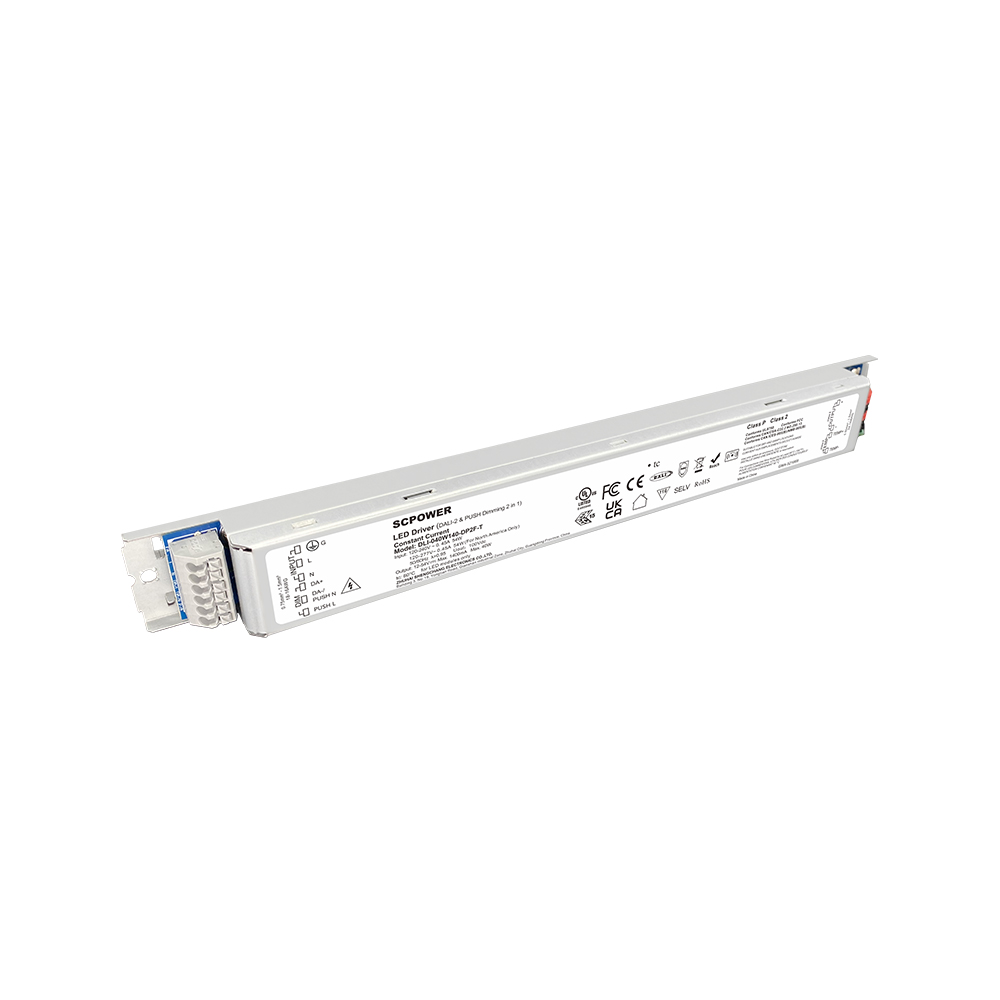

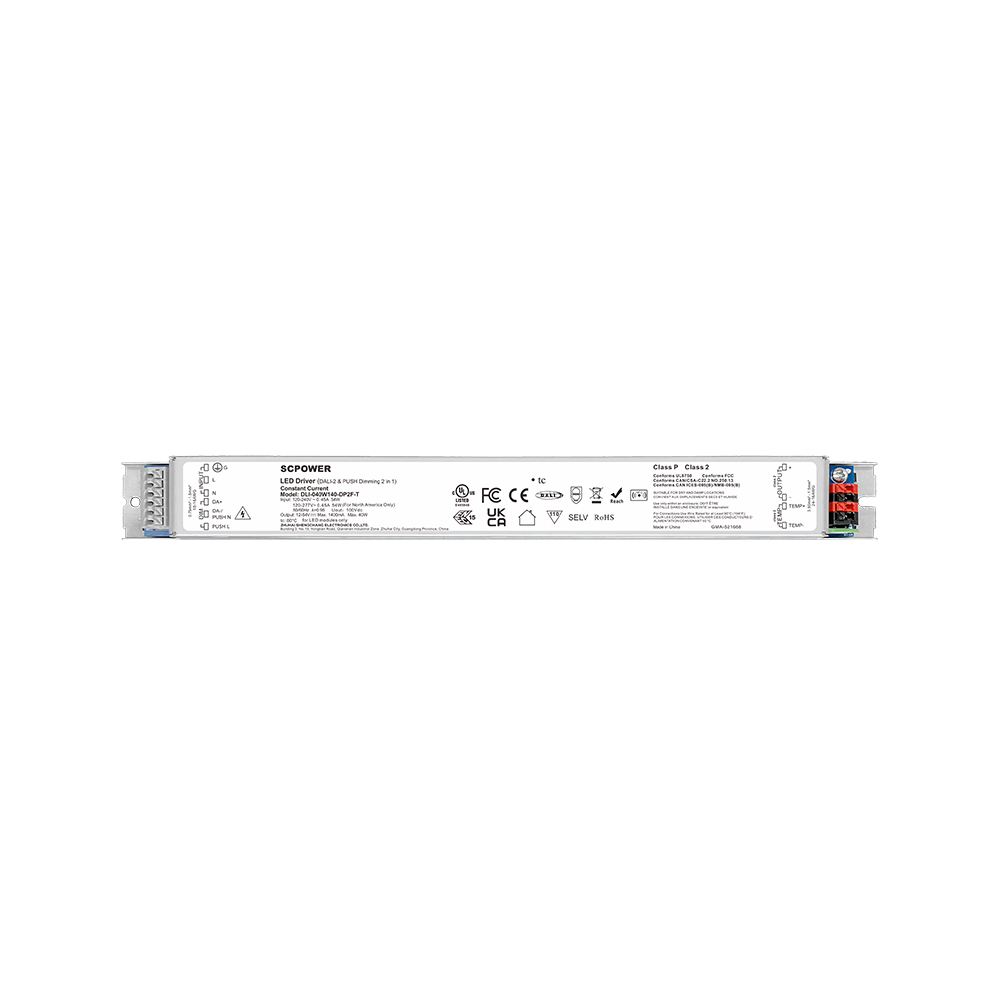

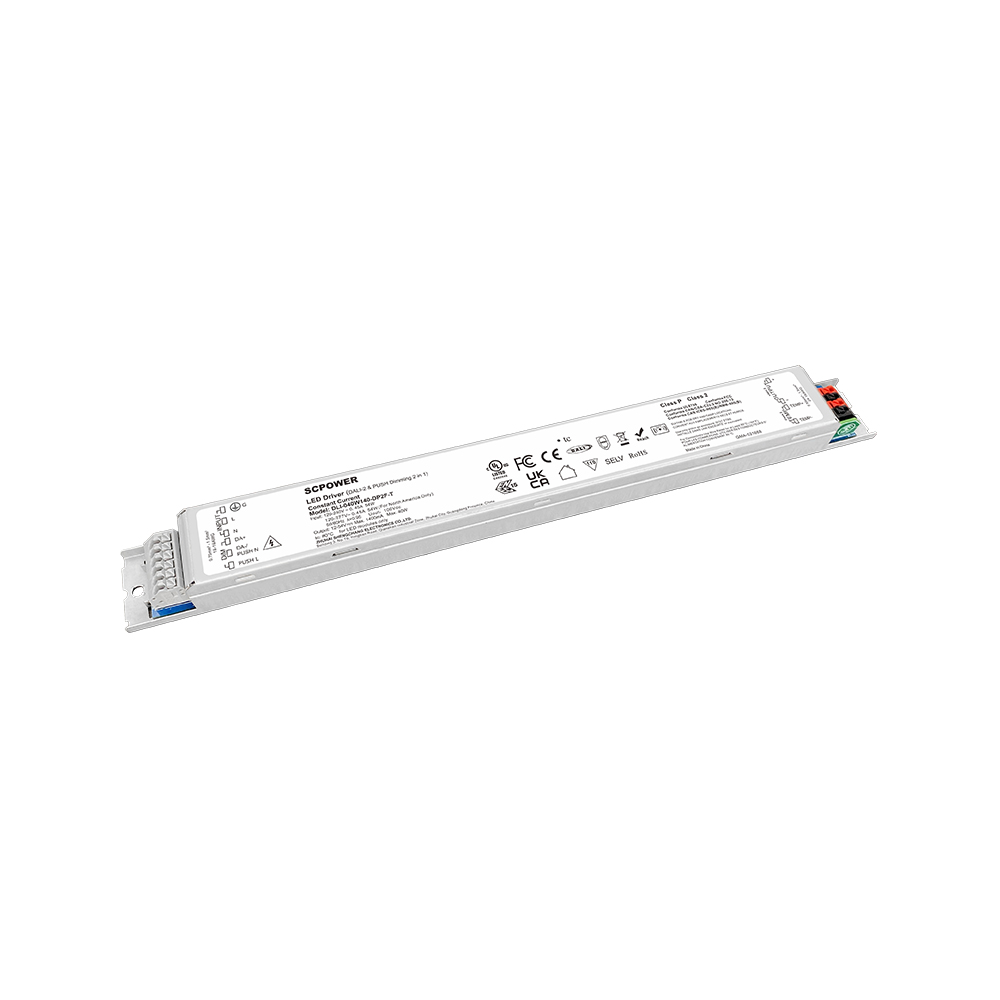

DP2F 20 40 60 100 watt Constant Current DALI-2 Push Dimmable LED Driver Linear Iron

Ouput Power:
20W
40W
60W
100W
Availability:
Inquire Add to Basket

  • DALI-2 Push

  • Isolated

  • Constant Current

  • 1CH (Dimming)

  • IP20, Dry & Damp

  • 100-277VAC

  • 20W, 40W, 60W, 100W

  • 3V-42V

  • RoHS, REACH

Advantage

20 40 60 100 watt Constant Current DALI-2 Push Dimmable LED Driver Linear Iron




Specification


Output Power

Model Number

Output

Size

Weight

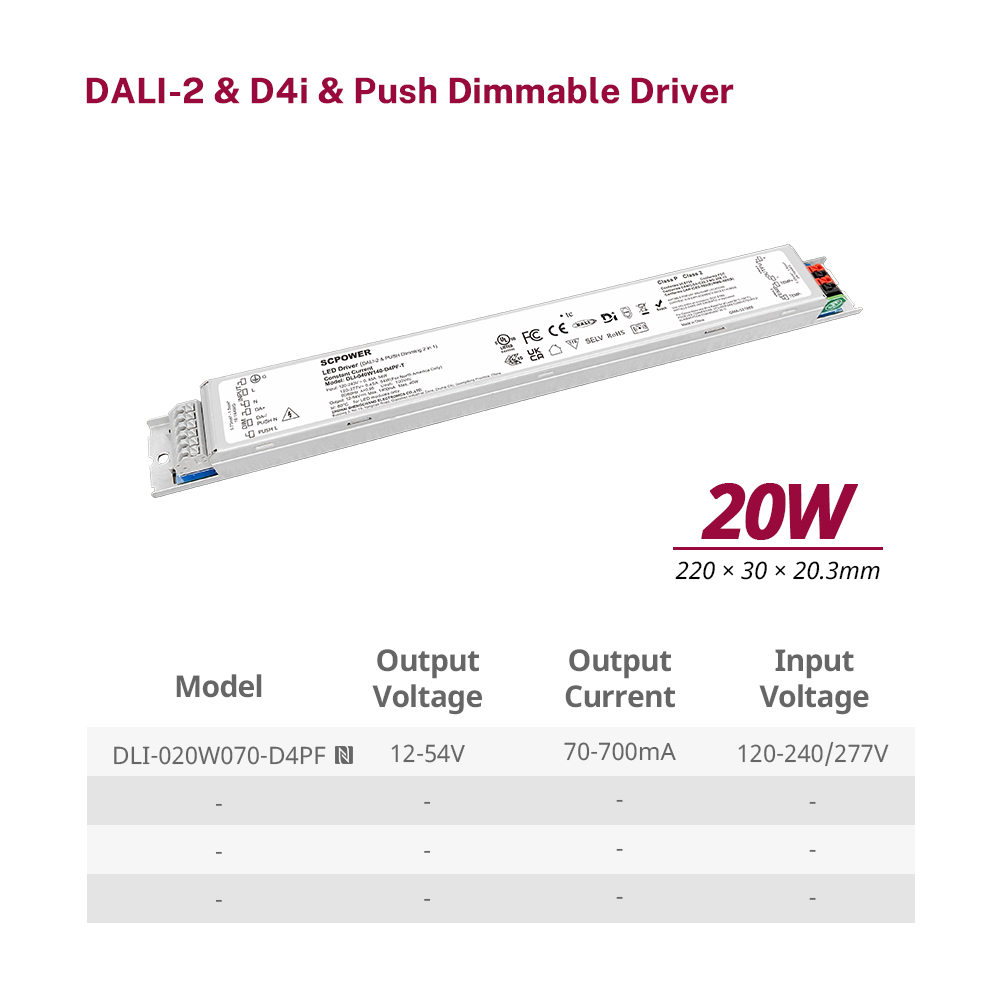

20W

DLI-020W070-DP2F

12-54V 70-700mA

220*30*20.3mm


40W

DLI-040W140-DP2F

12-54V 140-1400mA

296.7*30*21.7mm


DLI-040W070-DP2F

24-93V 70-700mA

60W

DLI-060W160-DP2F

12-54V 160-1600mA

314*30*21.7mm


DLI-060W120-DP2F

24-93V 120-1200mA

100W

DLI-100W210-DP2F

12-54V 210-2100mA

353*30*21.7mm


DLI-100W160-DP2F

24-93V 160-1600mA


download Spec_30W Triac 0-10V dim. LED CC Driver KIG-DWL series.pdf

download Spec_40W Triac 0-10V dim. CC Driver KIG-DWL.pdf

download Spec_60W Triac 0-10V dim. CC Driver KIG-DWL.pdf
